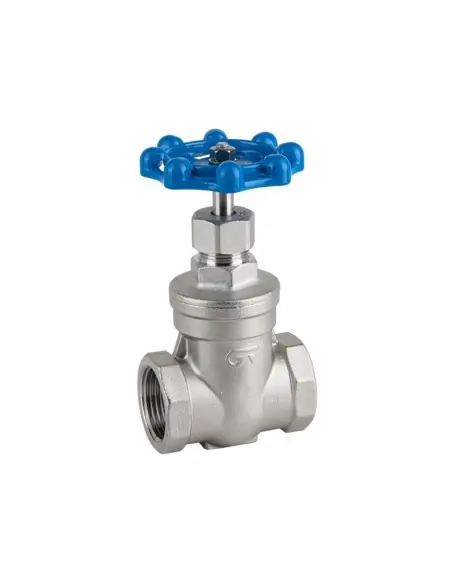

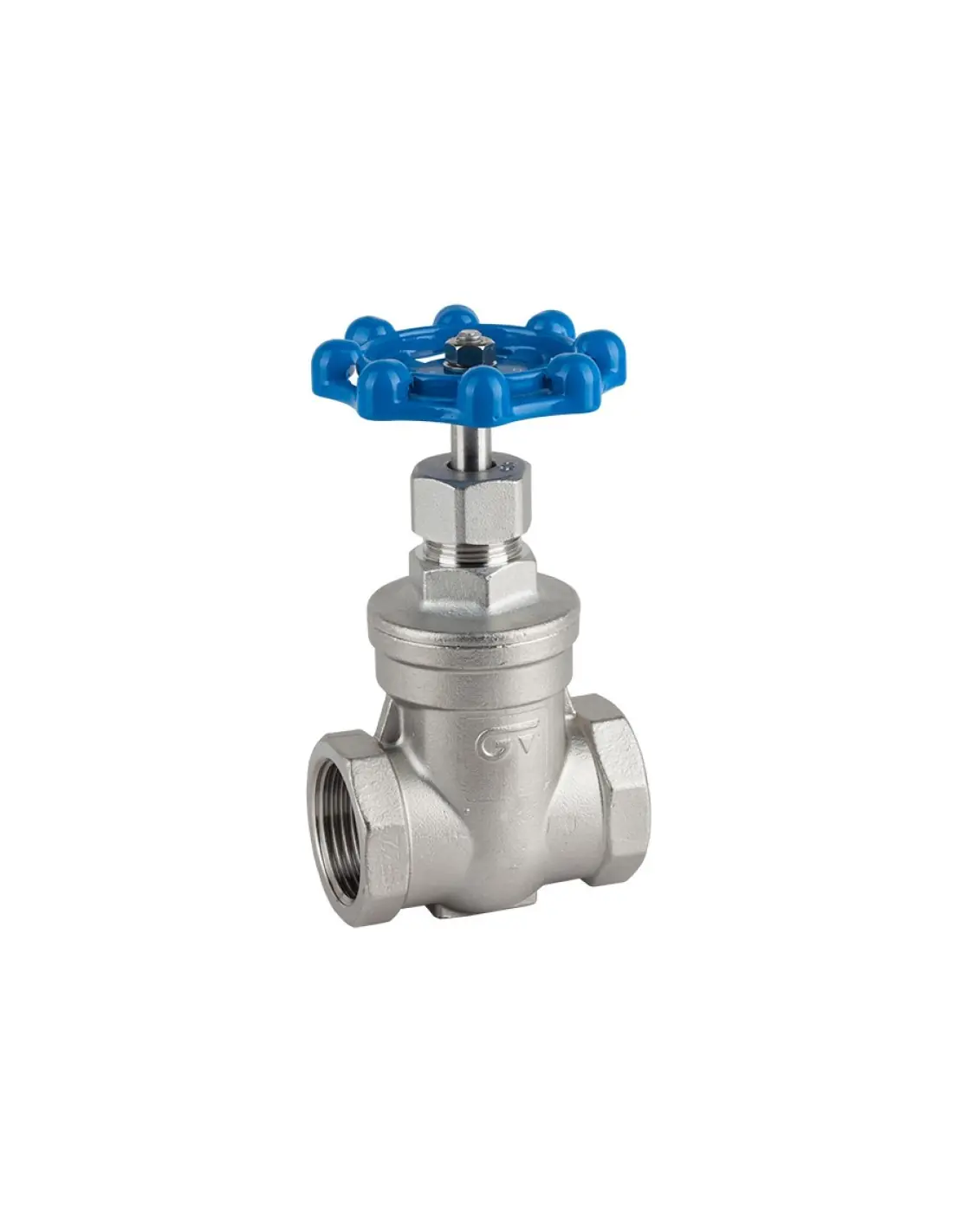

Genebre 2220 Gate Valve PN16

The Genebre 2220 is a threaded gate valve made from stainless steel casting 1.4408 / CF8M, designed for flow isolation in small diameters. It is suitable for fully open or fully closed positions and is not intended for flow regulation.

Technical Specifications

Sizes: 1/2" to 2"
Nominal Pressure: PN16
Maximum Pressure: 16 bar up to 120 °C, 10 bar at 180 °C
Operating Temperature: -30 to 180 °C
Ends: threaded according to ISO 7-1 / EN 10226-1
Stem: non-rising
Stem Packing: PTFE
Body Gasket: PTFE
Operation: aluminum handwheel

Construction Materials

The body, bonnet, and gate are made from stainless steel 1.4408 / CF8M. The stem and gland are made from AISI 316, with auxiliary components including stainless 304/316. Suitable for water, air, and neutral or mildly corrosive fluids, provided compatibility with CF8M and PTFE is confirmed.

Hydraulic Data

The Kv values are: 4.5 m³/h for 1/2", 20 for 3/4", 34 for 1", 60 for 1 1/4", 102 for 1 1/2", and 161 for 2". These values are used for pressure drop calculations in fully open positions, not for selection as a control valve.

Applications

Suitable for auxiliary water networks, compressed air, low/medium temperature process fluids, and stainless piping with threaded connections. Not recommended for lines with frequent throttling, solid particles, or actuator requirements.

FAQ

Is it flanged?
No, it is threaded with ISO 7-1 / EN 10226-1 threads.

Can it operate at 180 °C?
Yes, but with a pressure reduction to 10 bar.

What is checked for stem leakage?
The condition and tightness of the PTFE packing.

Standard (Options)

Connection (Options)

Material (Options)

1.4408

Pressure Rating (Options)

PN 16

Seat (Options)

PTFE

Datasheet and documents

Description

Constr. stainless steel CF8M (316) investment casting.

Gasket: PTFE: gas threaded ends ISO 7-1 (EN 10226-1).

Max. pressure: 16 BAR at 120ºC - 10 BAR at 180ºC.

Minimum temp.: -30ºC.

Reference: 2220

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2220 04	GATE VALVE PN 16 1/2"	1	0.414	6/48
2220 05	GATE VALVE PN 16 3/4"	1	0.553	4/32
2220 06	GATE VALVE PN 16 1"	1	0.69	2/18
2220 07	GATE VALVE PN 16 1 1/4"	1	1.088	2/16
2220 08	GATE VALVE PN 16 1 1/2"	1	1.506	1/8
2220 09	GATE VALVE PN 16 2"	1	2.14	1/6
