Eye shower self-draining frost-protected - PremiumLine - BR 880 095 | B-Safety

Unmatched Protection & Performance: Eye shower self-draining frost-protected - PremiumLine - BR 880 095 | B-Safety

The Eye shower self-draining frost-protected - PremiumLine - BR 880 095 | B-Safety is your ultimate solution for industrial safety where reliability and durability truly matter. Designed for harsh environments, this premium eye shower guarantees protection—even in the most challenging conditions.

Features & Benefits of Eye shower self-draining frost-protected - PremiumLine - BR 880 095 | B-Safety

  • Self-Draining System: Prevents water from sitting in the pipes, which means no risk of freezing even during cold weather. This ensures that emergency eye washes are always functional, whenever they are needed.
  • Frost-Protected Design: Built to withstand low temperatures, this unit remains operational regardless of the season. You never have to worry about it failing when temperatures drop.
  • Easy Activation: Simple push plate or lever operation ensures fast and efficient rinsing in seconds, offering immediate relief and reducing injury risk.
  • Premium Quality Materials: Made with robust, corrosion-resistant components for long-lasting use in demanding workplaces like factories, laboratories, and warehouses.
  • Effective Nozzles: Specially engineered dual nozzles provide a gentle yet thorough wash, protecting sensitive eyes from further harm while quickly clearing contaminants.
  • Clear Installation Instructions: Comes with straightforward guidance, allowing for quick setup and easy maintenance—no expert skills required.

This shower is specifically tailored for environments where extreme weather can pose a risk to safety equipment. The self-draining feature means water won’t freeze inside the unit, so it’s always ready for an emergency. Its frost-protected structure ensures that the device operates perfectly, even in icy conditions.

Built for industrial use, the Eye shower self-draining frost-protected - PremiumLine - BR 880 095 | B-Safety is not just about compliance—it’s about real protection. Your team can trust that in a moment of need, they’ll have instant access to clean, effective eyewash without delay or complication.

Choose this advanced eye shower for guaranteed functionality, tough construction, and maximum peace of mind—no matter what Mother Nature brings.

Datasheet and documents

Description

Technical Specifications

  • EN 15154-2:2006
  • ANSI Z358.1-2014
  • GOST-R, Certificate-No. 0615463 0615463

Norms / Approvals

  • EN 15154-2:2006
  • EN 15154-2:2006
  • EN 15154-5:2019
  • ANSI Z358.1-2014
  • DIN-DVGW, DVGW, NW-0416CL0425
  • DIN-DVGW, DVGW, NW-0417CL0263
  • GOST-R, Certificate-No. 0615463 0615463

Product description

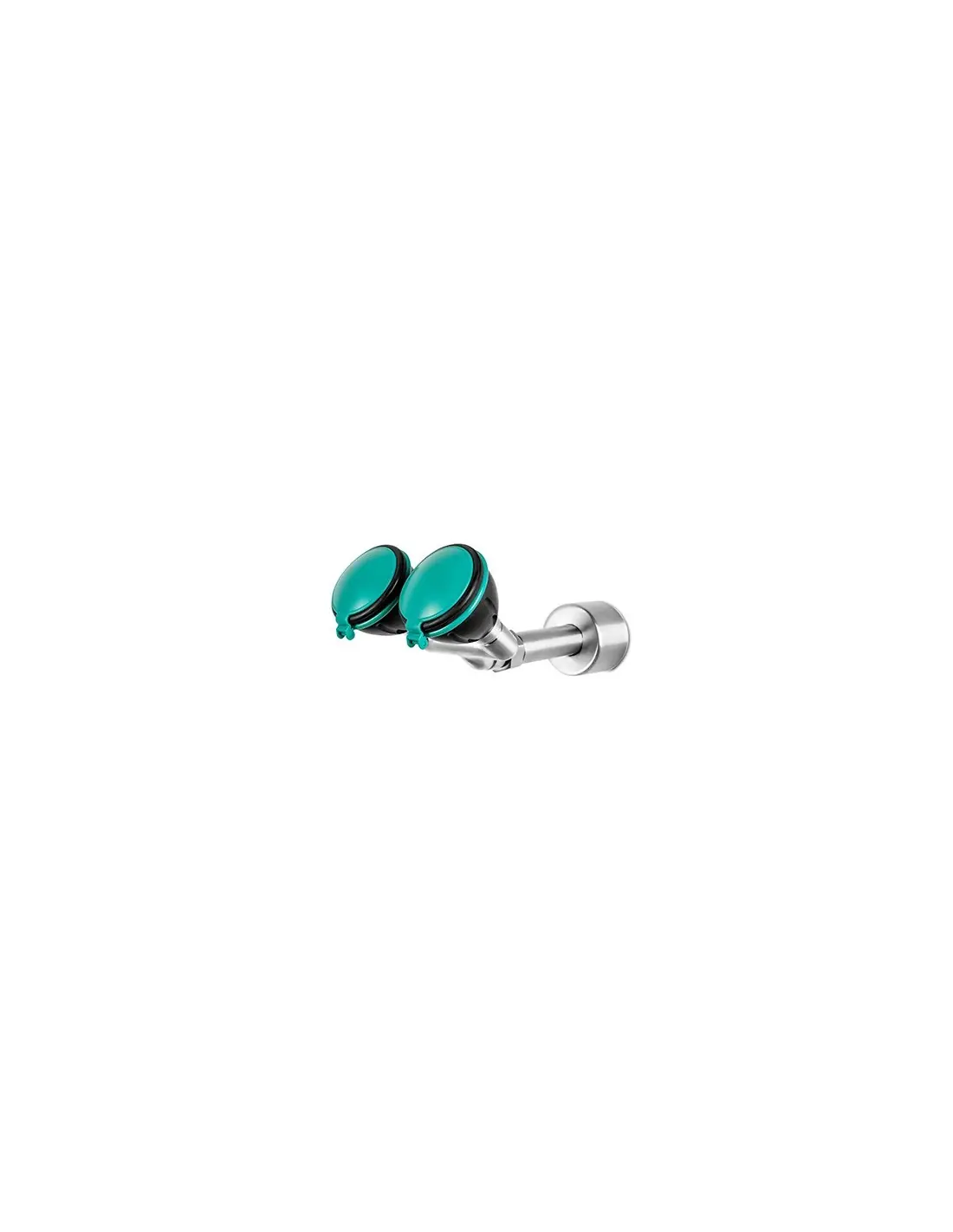

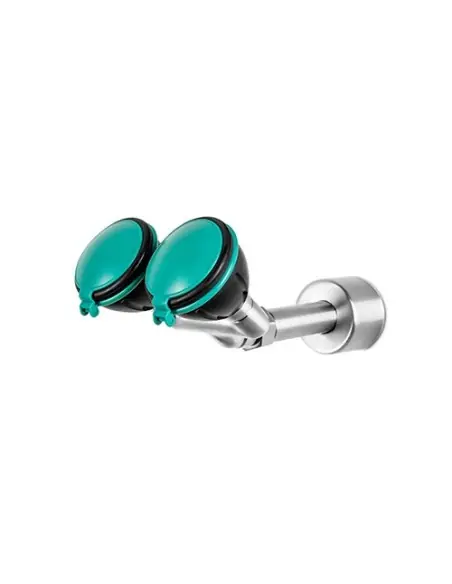

The eye shower is equipped with two B-SAFETY high-performance spray heads, which not only meet the requirements of DIN EN 15154-2:2006 and ANSI Z358.1-2014, but also ensure that the water is distributed over a large area. This also takes care of the regions around the eyes and eyes can be positioned in the water jet without problems. The restricted, even and, most important of all, soft water jet has been optimized for rinsing chemicals out of the eye.

The correct spray height and a standard-compliant spray pattern are achieved by the integrated flow regulator, regardless of the water pressure applied. The rubber sleeves around the shower head protect the person seeking help from impact injuries. Dust caps on the shower head protect against contamination and open automatically when the eye shower is actuated by the water pressure. The large holes in the shower heads prevent standing water and thus calcification.

DVGW
ISO9001_D_72

Technical Description

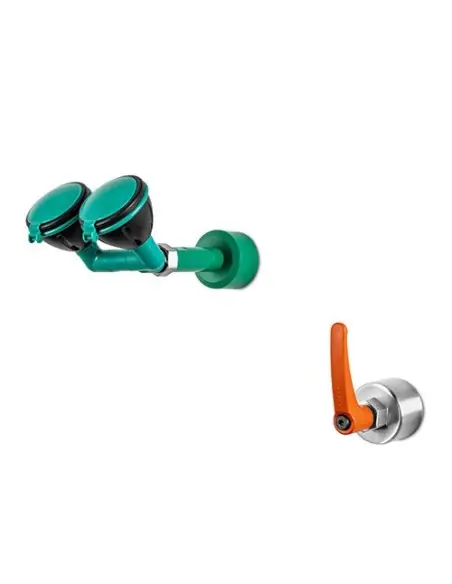

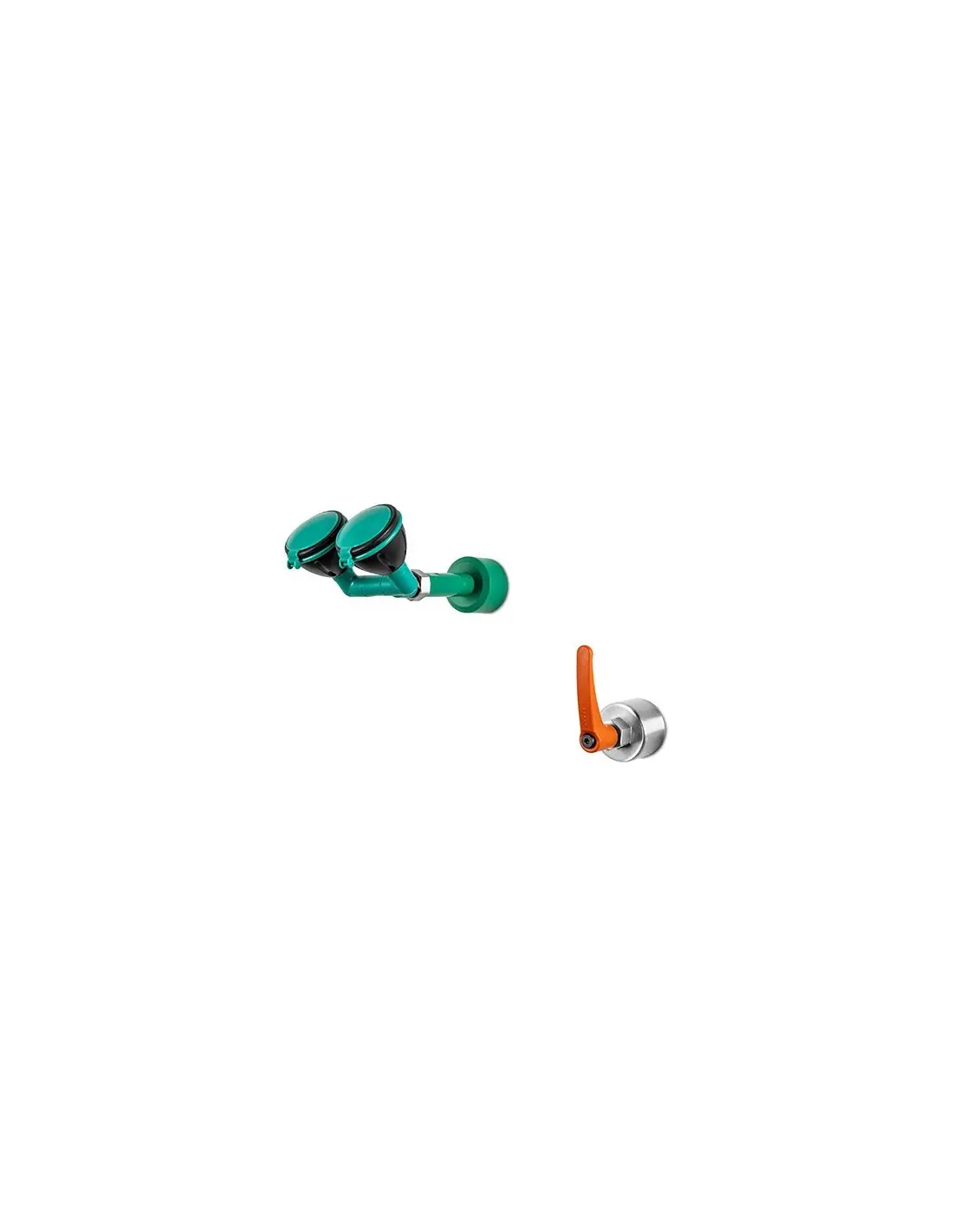

  • 3-way-ball-valve ¾” of brass that automatically drains the shower downwards when not in use, water inlet ¾” female
  • spindle extension, standard length 800 mm, can be shortened to the appropriate length on site
  • lever for ball valve
  • wall flange with 4 mounting holes made of stainless steel, polished, water inlet ¾” female, from behind through the wall
  • connection pipe of stainless steel, polished, length 75 mm
  • integrated flow regulation 14 litre / minute for a standard-compliant jet pattern at a specified working range of 1.5 to 5 bar flow pressure
  • high-performance spray heads made of stainless steel for large-scale dispersion of water, polished, 45° angled, with plastic spray plate, low calcification, incl. rubber sleeves and sealed dust caps, mounted over distributor fork

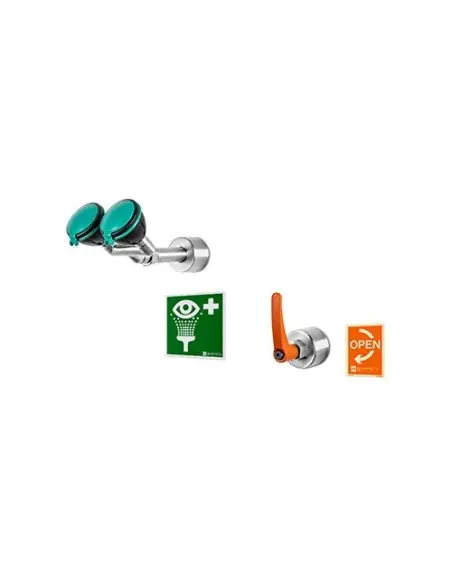

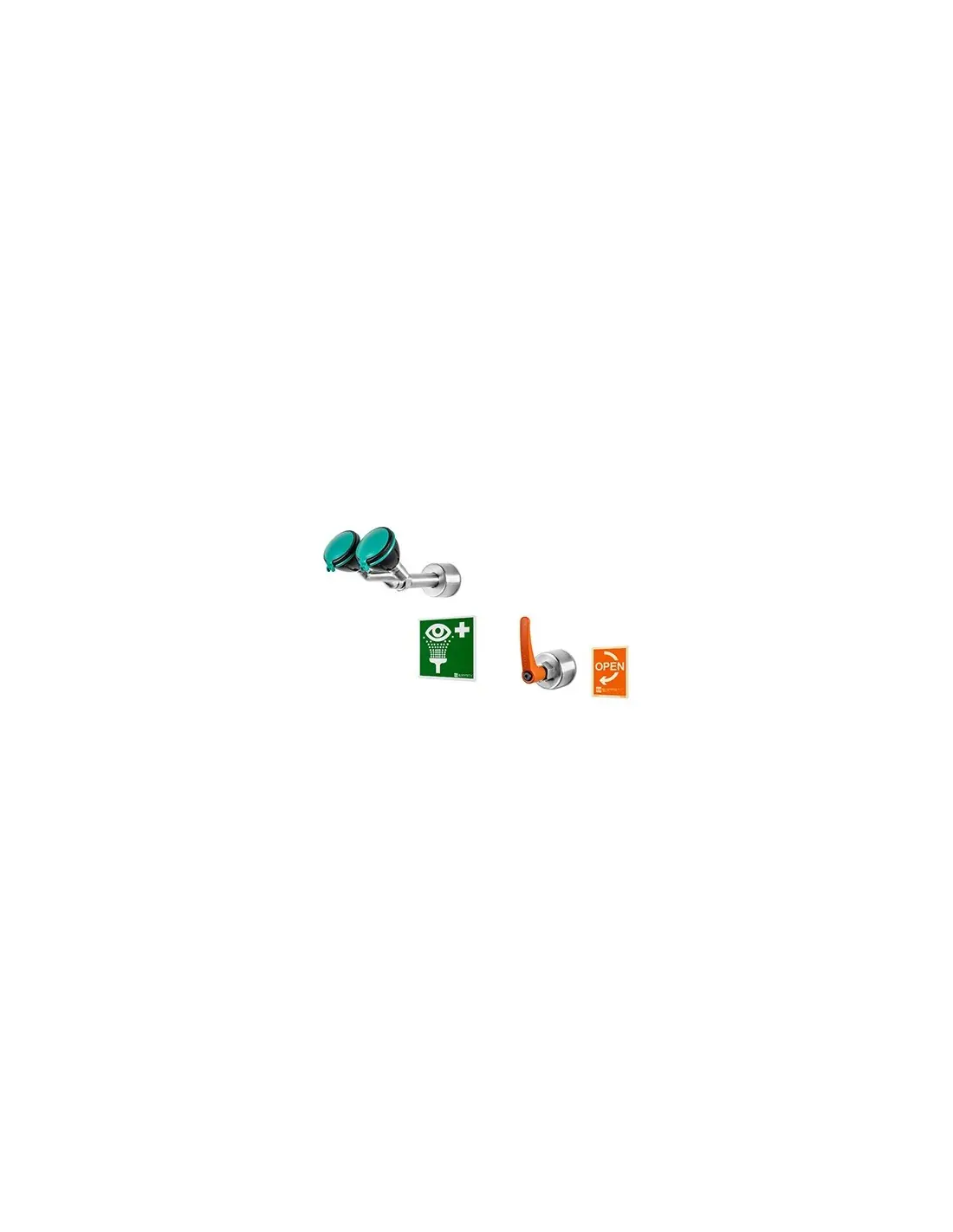

  • sign for eye shower according to DIN EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 100 x 100 mm, viewing distance 10 metre
  • mounting height 900 mm (± 200 mm)
  • according to BGI/GUV-I 850-0, DIN 1988 and DIN EN 1717
  • according to ANSI Z358.1-2014 and DIN EN 15154-2:2006

Certification
