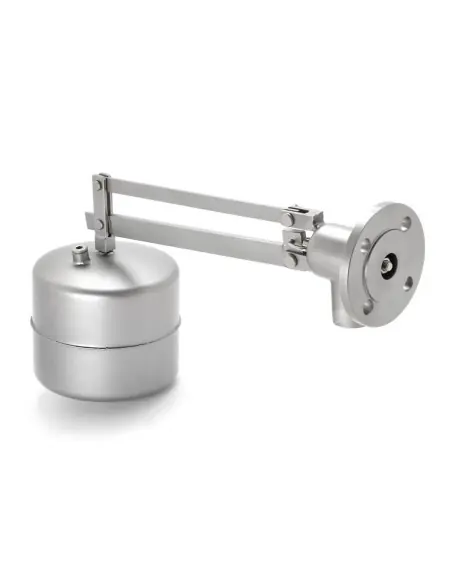

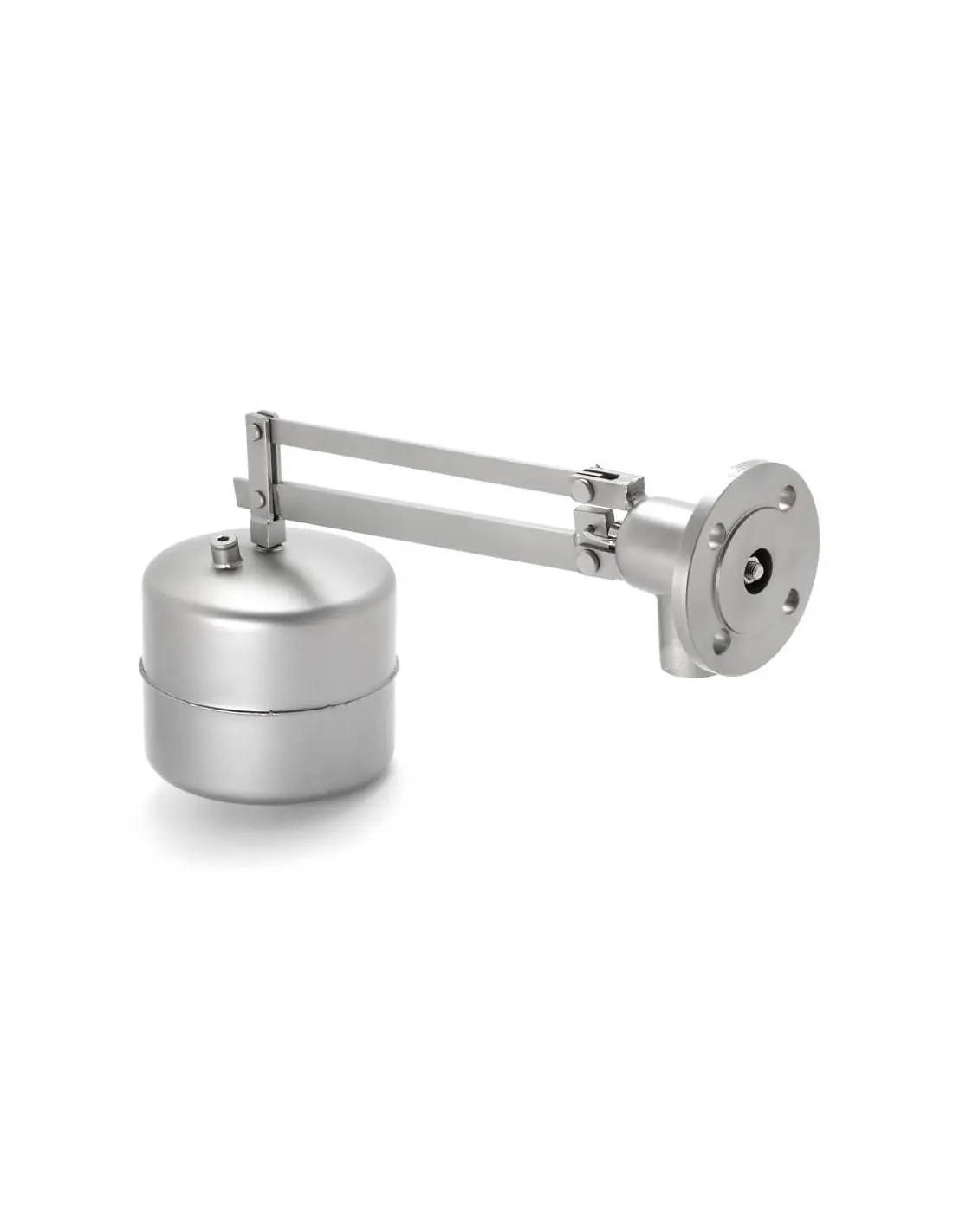

Float Valves Type NV 98 | Mankenberg

Float Valves Type NV 98 | Mankenberg – Precision Water Control for Every Industrial Need

Discover the reliability and efficiency of the Float Valves Type NV 98 | Mankenberg, the perfect solution for automatic water level management in your industrial systems. Designed for demanding applications, this float valve ensures a constant flow and optimum control, helping you maintain smooth and safe operations with minimal effort.

Features and Benefits of Float Valves Type NV 98 | Mankenberg

  • Automatic Level Regulation: The valve automatically manages water levels, allowing you to focus on your core processes without worrying about overflow or shortages.
  • Robust Construction: Built from high-quality materials, this valve stands up to harsh industrial environments and resists corrosion, promising long operational life.
  • Reliable Performance: Designed for consistent action, the float system responds quickly to level changes, ensuring uninterrupted water supply wherever it’s installed.
  • Easy Installation: Thanks to its practical design, integrating the NV 98 into existing systems is straightforward, saving valuable time and reducing installation costs.
  • Low Maintenance: With few moving parts and a self-cleaning mechanism, the valve needs little attention, helping you save on maintenance expenses.
  • Versatile Use: Ideal for tanks, reservoirs, and process pipelines, it adapts easily to a wide range of industrial water control scenarios.

The Float Valves Type NV 98 | Mankenberg operates using a reliable float system that lifts and drops in response to water levels. As the level changes, the valve opens or closes to maintain your desired setting. This means your tanks stay filled to the right point automatically, preventing costly spillages or dry-running equipment.

Safety and precision make this product a top choice for engineers and plant managers. Its advanced sealing technology minimizes leaks, and its sturdy design ensures it performs under pressure, even in demanding applications.

If you need a float valve you can trust, the NV 98 is a smart, worry-free investment. Ensure precise water control and long-lasting efficiency for your operations with the Float Valves Type NV 98 | Mankenberg.

Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • Stainless Steel
Pressure Rating (Options)
  • PN 16

Datasheet and documents

Description

Product features

Float valves automatically control liquid levels in sealed or open (non-pressurised) tanks and vessels without requiring external energy.

The float registers the liquid level and directly controls the valve via a lever.

A change in the liquid level immediately results in a changed flow volume.

Standard

  • All stainless steel construction
  • Excellent surface quality
  • Corrosion-resistant, very lightweight and compact
  • Soft seal
  • NV 98 R with ball float SC 3
  • NV 98 F with cylindrical float SC 8
  • NV 98FP with cylindrical float SC 8 and float bar parallel guide

Options

  • Float adjustment to the density of the medium
  • Elastomers as per FDA and USP Class VI
  • Aseptic or ANSI flanges, NPT, others on request

Technical data

DN
40 - 80
G
3/8A - 1 1/2A
PN
16
p
0 - 8 bar
Kvs
0.5 - 82 m3/h
T
130 °C

Liquids up to 130 °C, also suitable for aggressive media | soft seal | completely made of stainless steel
