Float Valves Type ATHENA (NV 15e) | Mankenberg – Reliable Flow Control Made Easy

Discover the power of precision and safety with the Float Valves Type ATHENA (NV 15e) | Mankenberg. Designed for industrial use, this valve is the ultimate solution for maintaining accurate liquid levels in your tanks and systems. With robust performance and simple operation, it ensures peace of mind for operators and plant managers alike.

Features and Benefits of the Float Valves Type ATHENA (NV 15e) | Mankenberg

  • Automatic Level Control: Keep your tanks at the perfect fill level without manual intervention. The built-in float rises and falls with the liquid, automatically opening or closing the valve as needed.
  • High Durability: Crafted from high-quality materials, this valve can withstand tough industrial environments and demanding usage, minimizing downtime and replacement costs.
  • Precision Regulation: Enjoy consistent flow regulation for various liquids. The ATHENA (NV 15e) adapts to changes in fluid levels, ensuring a steady supply exactly when you need it.
  • Easy Installation: Its compact, practical design allows for quick and hassle-free setup, saving valuable time during maintenance or upgrades.
  • Maintenance-Free Operation: Once installed, this float valve requires little to no ongoing maintenance. The self-acting mechanism means fewer inspections and adjustments.
  • Safe and Reliable: Built-in overflow protection and leak-proof seals help prevent accidental spills and keep your workplace safer.

This float valve is the workhorse your industrial processes need. Whether you handle water, chemicals, or other liquids, the ATHENA (NV 15e) stands up to the job. Its clever design uses the natural movement of liquid to activate the valve, so there’s no need for external power sources or complicated wiring. The result is a solution that’s both energy-efficient and dependable.

Trust the Float Valves Type ATHENA (NV 15e) | Mankenberg to deliver:

  • Consistent performance in all operating conditions
  • Long service life, even with harsh fluids
  • Reduced risk of overfilling or running dry

Your operation deserves equipment that works as hard as you do. Choose the float valve that combines advanced technology with everyday practicality. Experience the difference with the Float Valves Type ATHENA (NV 15e) | Mankenberg.

Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • Cast Iron
Pressure Rating (Options)
  • PN 16

Datasheet and documents

Description

Product features

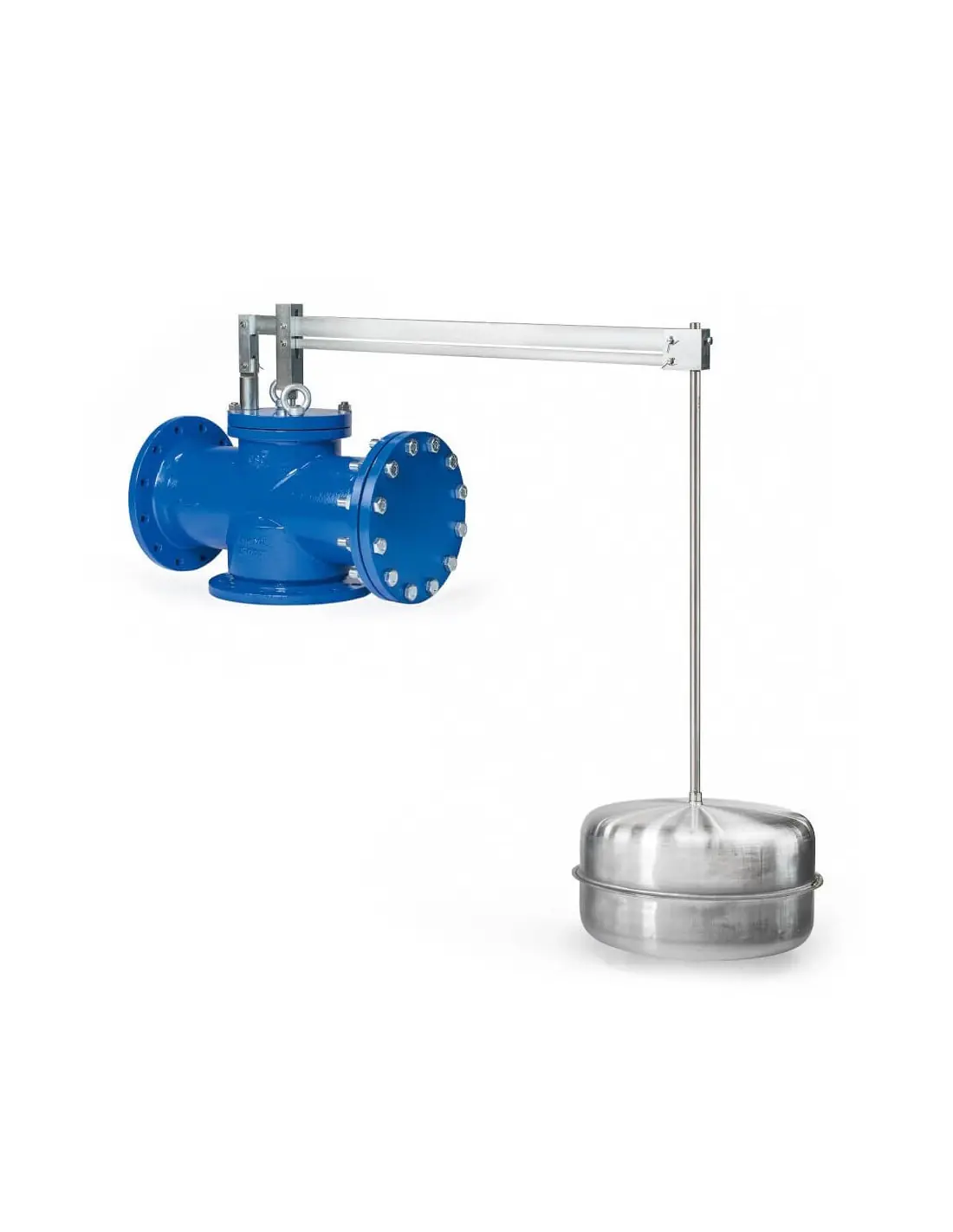

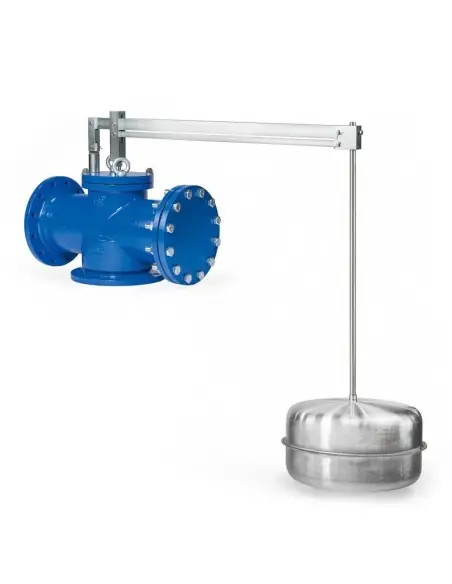

Float valves automatically control liquid levels in sealed or open (non-pressurised) tanks and vessels without requiring external energy.

The float registers the liquid level and directly controls the valve via a lever.

A change in the liquid level immediately results in a changed flow volume.

Standard

  • Body made of spheroidal cast iron (GJS 450-10)
  • Epoxy coating as per DVGW W270 and KTW recommendation, thickness min. 250 μm
  • Flanges as per EN 1092/2
  • Up to DN 65 ball float, from DN 80 cylindrical float made of stainless steel (1.4301)
  • Float rod made of stainless steel (1.4301)
  • Float lever aligned to the longitudinal axis

Options

  • Float lever made of stainless steel (1.4301 or 1.4404)
  • Float lever with an angle of 45° or 90 °C
  • EPDM or FKM gaskets
  • Connection for frost protection G 3/8

Technical data

DN
40 - 300
PN
16
p
0 - 16 bar
Kvs
18 - 1008 m³/h
T
70 °C



Liquids, especially suitable for potable water up to 70 °C | soft seal | body made of spheroidal cast iron GJS 450-10 with epoxy coating | KTW recommendation
