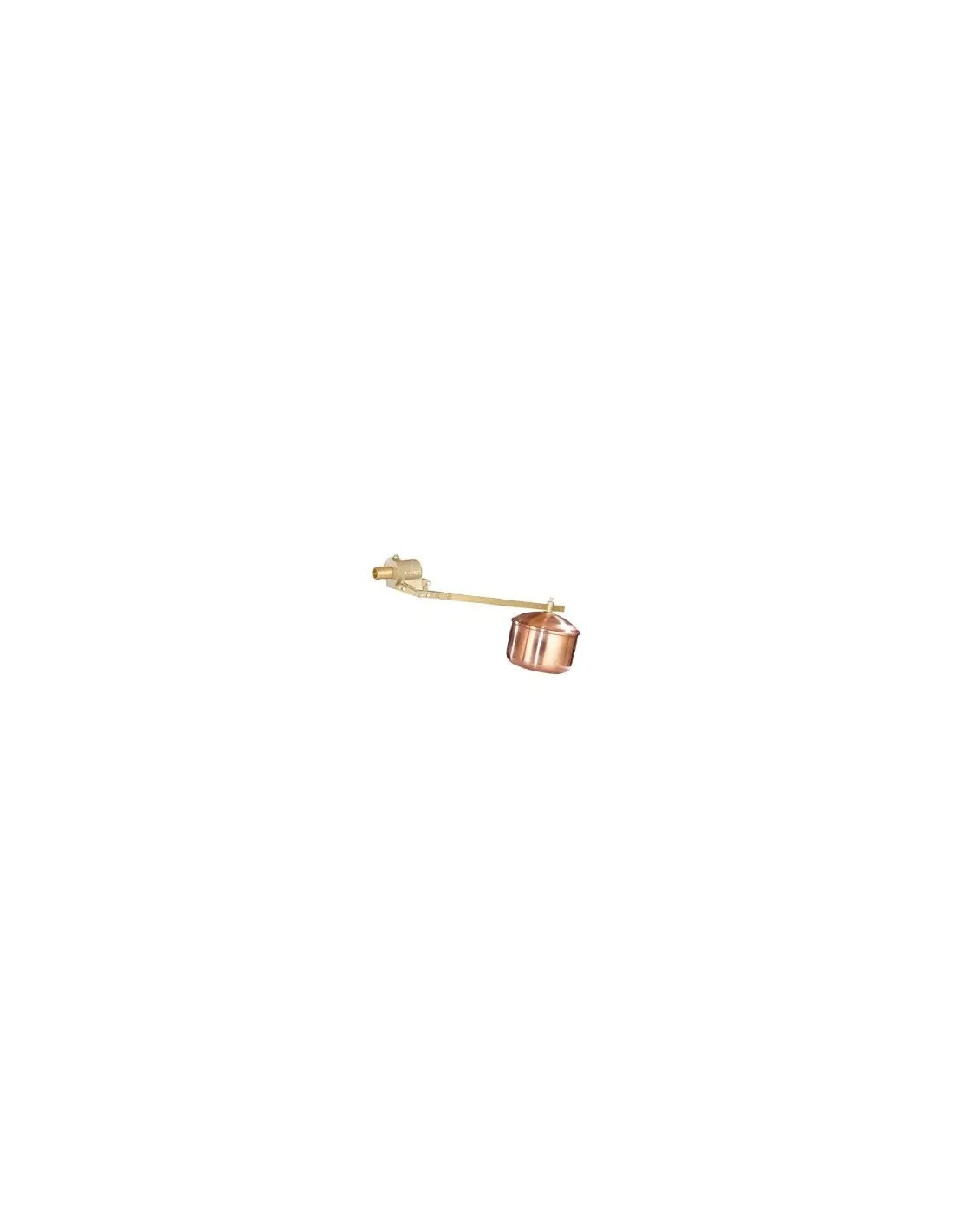

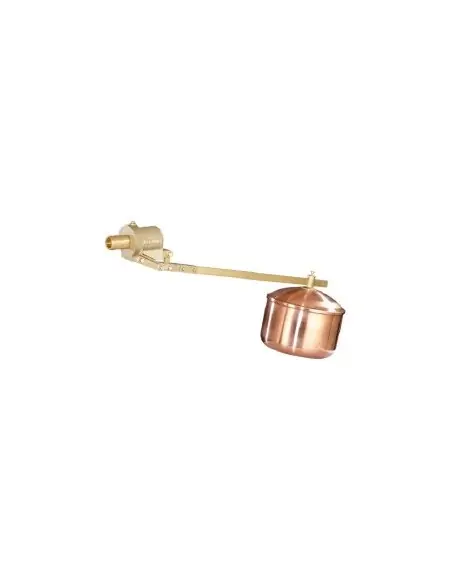

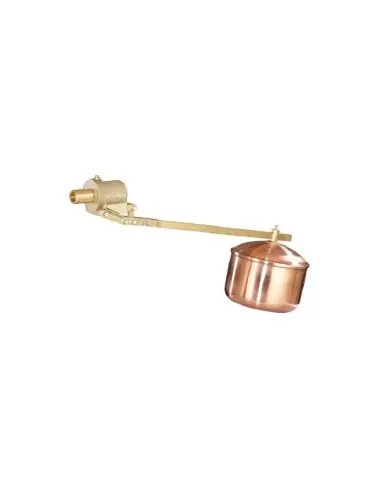

The RSV O is a mechanically actuated float valve constructed from brass, designed for level control in medium and large tanks. Operation is based on a float and lever mechanism, without the need for electrical signal, level sensor, or actuator. Level adjustment is achieved by repositioning the float along the lever arm.
RSV O is intended for potable water and neutral, non-viscous liquids. Not suitable for fluids containing suspended solids, sediments, or media prone to fouling the control mechanism. RSV O series is DVGW certified and suitable for potable water networks, subject to code and country-specific confirmation.
RSV O and RSV G share the same DN range, pressure class, and threaded connection. RSV G includes a dip tube connection, while RSV O is used where this is not required. For small DN, RSV G offers higher Kvs; for DN 65–80, RSV O achieves Kvs 47 m³/h versus 40 m³/h for RSV G.
What should be checked before selection?
Filling flow rate, inlet pressure, DN, temperature, float material, water quality, and lever arm clearance.
Can it be serviced without removal?
Seal inspection and replacement can be performed without removing the valve from the line.
RSV O
Float valves of this series are ideal for filling medium to large storage tanks or for level control. A desired liquid level can be precisely adjusted by moving the float. The valves have a high flow rate.
Nominal size DN 10 up to DN 80
Inlet pressure up to 12 bar
Kvs value 0.6 - 47 m³/h
Temperature range up to 80 °C
Technical data
CE-certification according to the European Pressure Equipment Directive is mandatory for numerous products and delivery areas. Other certificates, however, are certificates of individual quality, such as DVGW and DIN EN ISO 9001, which stands for the internal quality management system with its extensive functional and performance checks. The particularly strict regulations of the national rules and regulations guarantee the highest possible safety - especially when it comes to the reliability in your plant.
