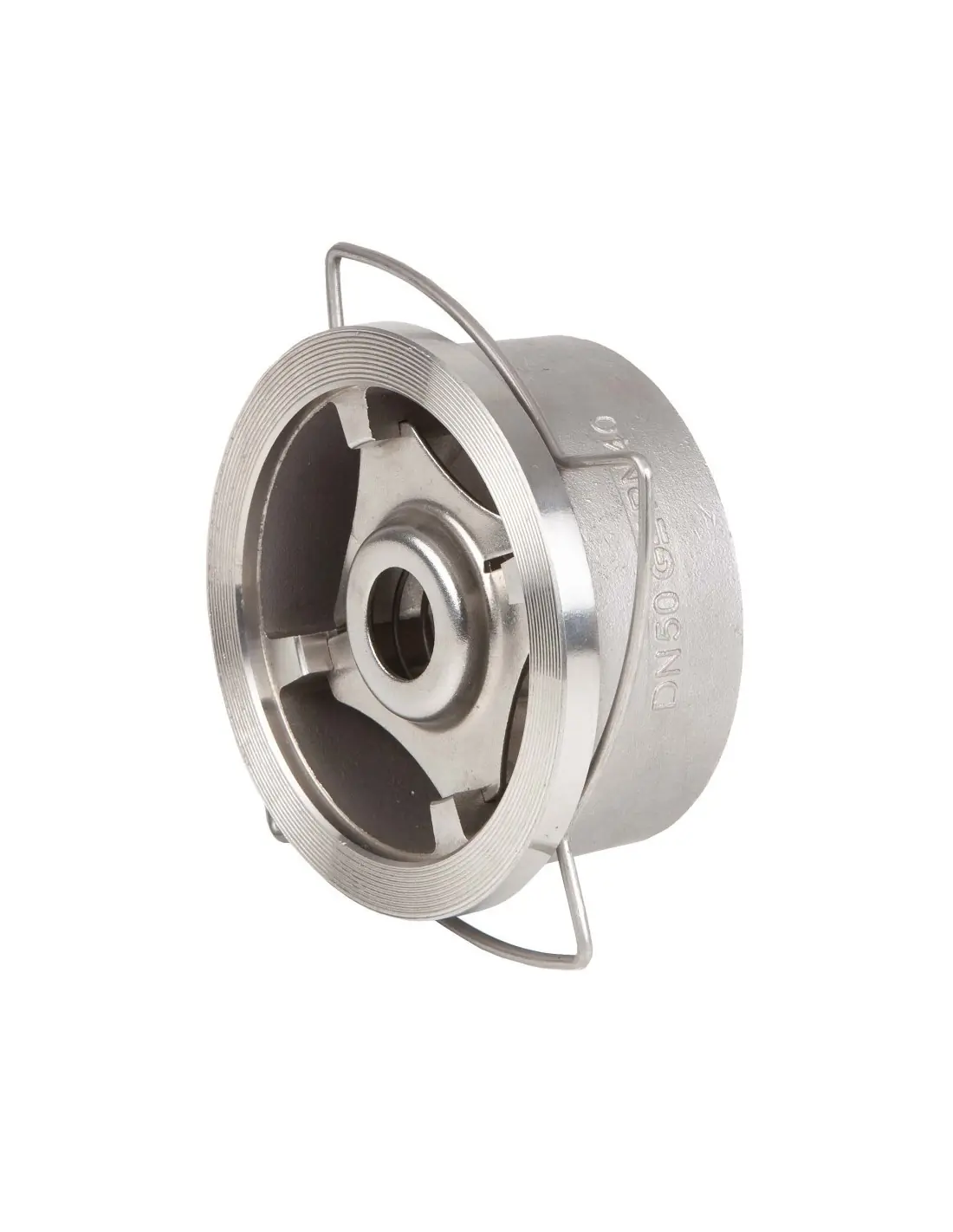

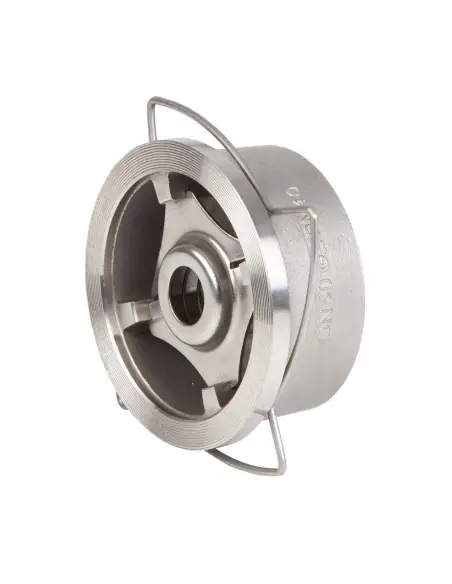

Genebre 2415 – Wafer Type Spring-Loaded Disc Check Valve

The Genebre 2415 is a wafer-type spring-loaded disc check valve designed for installation between flanges. The disc opens under differential flow pressure and closes via an AISI 316 spring when flow decreases or reverses. No actuator is required.

Construction and Connection

Body: Stainless steel 1.4408 / CF8M
Disc: Stainless steel 1.4408 / CF8M
Spring and spring retainer: AISI 316
Connection: Between flanges EN 1092 PN10/16/25/40 and ANSI 150/300
Face-to-face: EN 558-1, Series 49
Installation: Permitted in horizontal, vertical, or inclined lines, with flow direction as indicated on the body.

Pressure, Dimensions, and Temperature

Available in DN15 to DN200. Sizes DN15–DN100 rated PN40; DN125–DN200 rated PN25. Operating temperature: -20°C to +240°C. Pressure-temperature rating must be verified for each application.

Hydraulic Data

Kv values range from 4.9 m³/h (DN15) to 425 m³/h (DN200). Opening pressure: 24–30 mbar (DN15–DN65), 20–26 mbar (DN80–DN100), 30–36 mbar (DN125–DN200).

Applications

Suitable for compact piping, skids, auxiliary industrial networks, water, air, or compatible liquid/gas lines. Media must be compatible with CF8M, AISI 316, and metal seat. Valve selection must consider flow, Kv, pressure drop, and minimum differential pressure, not just pipe diameter.

Installation and Maintenance

Piping must be cleaned prior to installation; welding debris or foreign bodies can damage the disc and seat. Manufacturer recommends avoiding installation immediately downstream of pumps, elbows, reducers, or other valves. Minimum distances: 10×DN upstream, 3×DN downstream.

FAQ

When does the pressure class change from PN40 to PN25?
From DN125 and above.

Is regular lubrication required?
No. The all-metal version does not require lubrication or periodic maintenance, but leakage and connection integrity should be checked periodically.

Standard (Options)

Connection (Options)

Flanged
Flanged (Wafer)

Material (Options)

1.4408

Pressure Rating (Options)

PN 25
PN 40

Datasheet and documents

Description

Constr.: AISI 316. Disk and spring: AISI 316. Mounting between flanges PN 10/40. ANSI 150 lbs. Length: DIN 3202 K4.

Reference: 2415

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2415 04	DISK CHECK VALVE WAFER TYPE DN-15	1	0.092	1/210
2415 05	DISK CHECK VALVE WAFER TYPE DN-20	1	0.12	1/200
2415 06	DISK CHECK VALVE WAFER TYPE DN-25	1	0.208	1/105
2415 07	DISK CHECK VALVE WAFER TYPE DN-32	1	0.38	1/60
2415 08	DISK CHECK VALVE WAFER TYPE DN-40	1	0.537	1/36
2415 09	DISK CHECK VALVE WAFER TYPE DN-50	1	0.783	1/27
2415 10	DISK CHECK VALVE WAFER TYPE DN-65	1	1.262	1/18
2415 11	DISK CHECK VALVE WAFER TYPE DN-80	1	1.931	1/10
2415 12	DISK CHECK VALVE WAFER TYPE DN-100	1	2.761	1/8
2415 13	DISK CHECK VALVE WAFER TYPE DN-125	1	5.575	1/2
2415 14	DISK CHECK VALVE WAFER TYPE DN-150	1	8.515	1/2
2415 16	DISK CHECK VALVE WAFER TYPE DN-200	1	15.958	1/1
