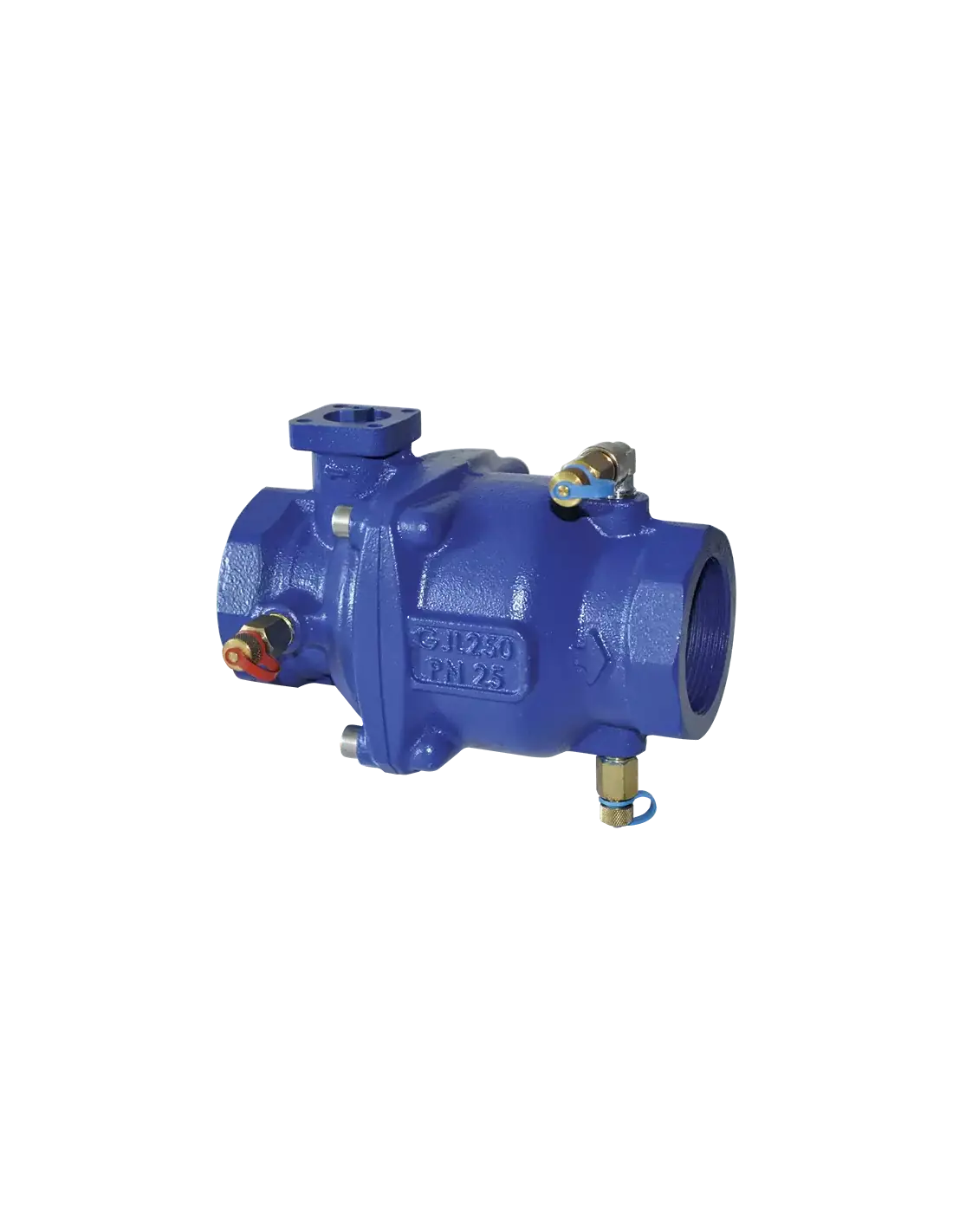

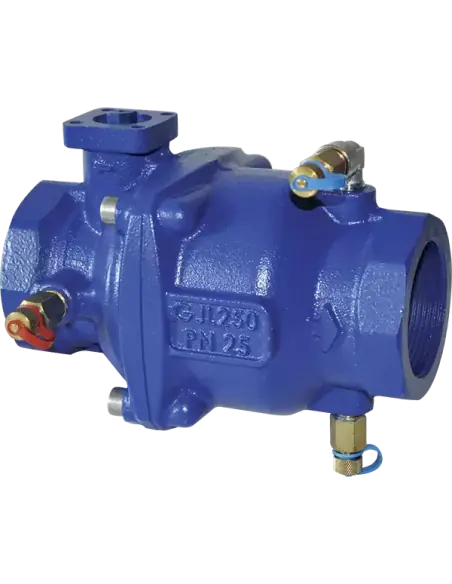

Brandoni Ekoflux PI040 / PI050 – Threaded PICV

The Brandoni Ekoflux PI040 / PI050 is a pressure independent control valve (PICV) designed for heating and cooling circuits. It regulates flow to terminal units or branch circuits and compensates for differential pressure fluctuations in the network.

Technical Data

  • Type: threaded pressure independent flow control valve
  • Connection: male thread for union M/F
  • Optional: female thread
  • Threading: ISO 228-1
  • Standard: DIN
  • Body: EN-GJL-250
  • PN: 25
  • Seat: EPDM
  • Control characteristic: linear

Control Operation

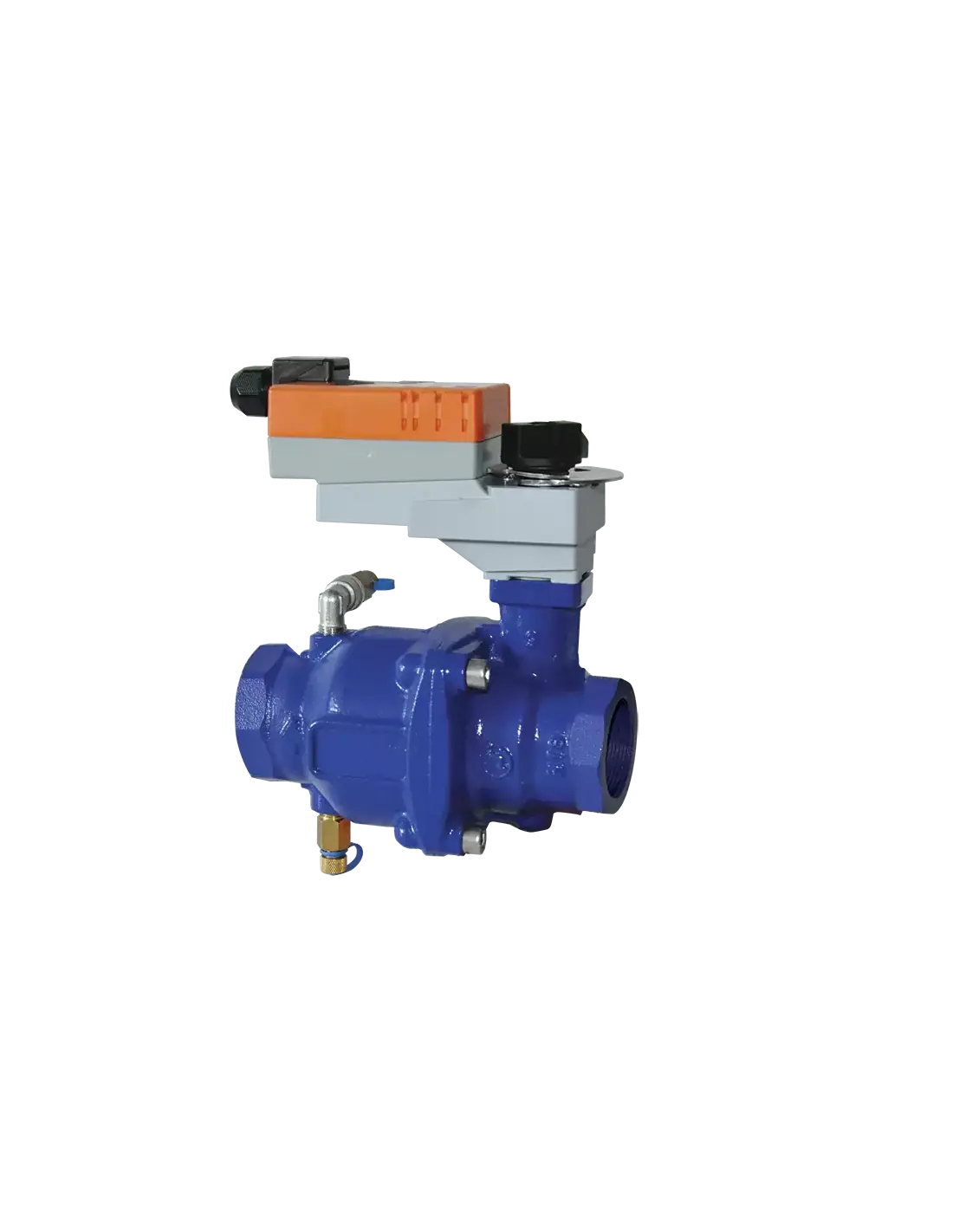

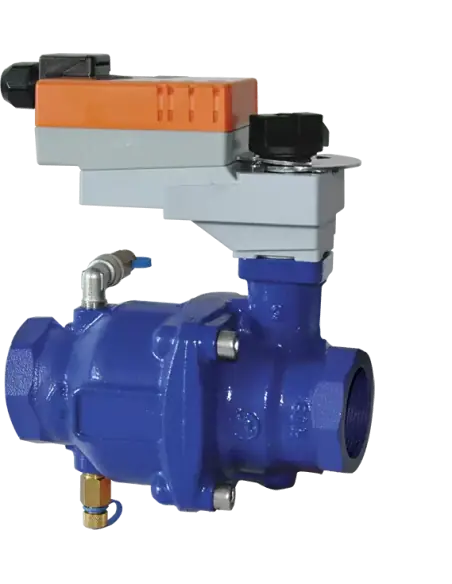

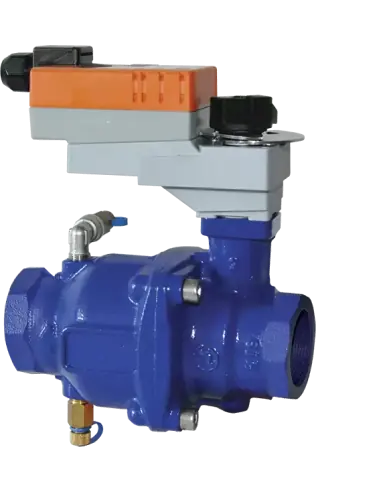

The valve maintains the preset flow rate even with Δp variations due to load changes. It can be equipped with a 0/2–10 V actuator for analog flow modulation via BMS. Actuator supplied separately.

Additional Functions

  • Shut-off (with possible residual leakage)
  • Flow measurement via test points
  • Temperature measurement
  • Pressure measurement
  • Commissioning and hydraulic balancing verification

Applications

  • Fan coils
  • Small AHU coils
  • Heating/cooling branches
  • Variable flow HVAC networks
  • Installations with BMS automation

Selection Criteria

Selection is based on required flow, available Δp range, connection size, water temperature, actuator type, and acceptable leakage in closed position.

FAQ

How does it differ from a standard balancing valve?
The PI040 / PI050 does not simply provide fixed resistance. It regulates flow independently of network pressure fluctuations.

Where is it mainly used?
In HVAC terminal units where stable flow and analog control via building automation are required.

Standard (Options)
  • DIN
Connection (Options)
  • ISO 228-1
Material (Options)
  • EN-GJL-250
Pressure Rating (Options)
  • PN 25
Seat (Options)
  • EPDM

Datasheet and documents

Description

PRESSURE INDEPENDENT THREADED CONTROL VALVE PICV

Balancing valve EKOFLUX.P040/PI050 controls and regulates the flow to appliances or sections of cooling and heating plants. It is suitable to be integrated in automated building management system.

Compensating the pressure variations and keeping constant the system performance in case of load changes, assures an improvement of enviromental comfort as well as a pumping cost reduction.

Male threaded end, for M/F fittings. Available on request with female threaded.

The valve could be equipped with an ((0)2-10V) actuator for flow proportional regulation. The actuator is supplied separately.

Regulation characteristic is linear.

Valve performs also:

  • Shut-off (residual leakage possible)
  • Flow rate, temperature and pressure measurement (by the mean of the available test points)

Certifications

CE (not marked)

Hygienic certificate PL

Certificate Ukraine

CE
