Brandoni Valves – Technical profile of a cast iron, bronze and industrial valve manufacturer

Brandoni S.p.A. is an Italian manufacturer of industrial valves, known for cast iron and bronze valve production. Its product range is used in domestic and industrial heating, air conditioning, naval applications, city gas and water distribution.

The range represented through Philippopoulos S.A. includes several industrial valve types for isolation, regulation, non-return and filtration duties.

Typical product categories include:

  • shut-off valves,
  • butterfly valves,
  • ball valves,
  • check valves,
  • balancing valves,
  • strainers,
  • regulating valves,
  • HVAC and water network valves.

Brandoni butterfly valves are used in HVAC, water, cooling, heating and industrial utility systems. Selection must consider body type, disc material, liner material, pressure rating and compatibility with the fluid.

Check valves are selected according to installation position, reverse flow conditions, minimum flow and risk of hydraulic shock. Strainers are installed upstream of pumps, control valves, balancing valves and meters to reduce contamination-related failures.

For HVAC and plant engineers, Brandoni products are mainly part of the utility and building-services valve layer. The key selection criteria are DN, PN, material compatibility, connection standard, operating temperature, leakage class and maintenance access.

Back flow preventer protection - ECO 3F | Brandoni | Philippopoulos s.a.

Back flow preventer protection - ECO 3F | Brandoni

Back flow preventer protection - ECO 3F | Brandoni
Brandoni Valves

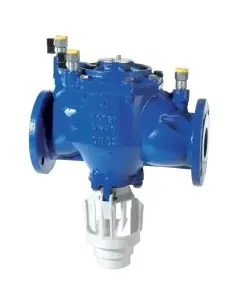

Brandoni ECO 3F – BA Type Backflow Preventer Flanged backflow prevention assembly for potable water, featuring a controlled reduced pressure zone. Complies with EN 1717 (type BA) and certified to EN 12729. Designed for installations where there is risk of backflow due to siphonage or backpressure. Construction and Operation The ECO 3F consists of two...
View
Back flow preventer protection - ECO 3T | Brandoni | Philippopoulos s.a.

Back flow preventer protection - ECO 3T | Brandoni

Back flow preventer protection - ECO 3T | Brandoni
Brandoni Valves

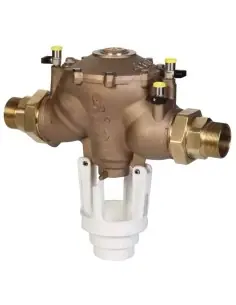

Brandoni ECO 3T – BA Type Backflow Preventer Threaded backflow preventer with controlled reduced pressure zone, BA type according to EN 1717, certified to EN 12729. Designed for potable water supply systems requiring separation between the mains and user installations. Construction Connection: ISO 228-1 threaded Standardization: DIN Body DN 15:...
View
Ball Check Valve - 07 | Brandoni | Philippopoulos s.a.

Ball Check Valve - 07 | Brandoni

Ball Check Valve - 07 | Brandoni
Brandoni Valves

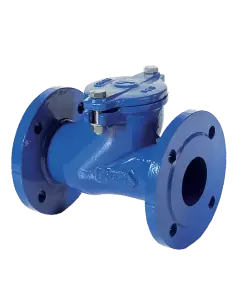

Brandoni Serie 07 – Ball Type Check Valve The Brandoni Serie 07 is a ball check valve constructed from spheroidal graphite cast iron (EN-GJS-400-15), designed for liquid networks where viscous or dense fluids may be present. The internal ball is displaced by differential flow pressure and reseats when flow decreases or reverse pressure occurs. No actuator...
View
Disc check valve - W6 | Brandoni | Philippopoulos s.a.

Disc check valve - W6 | Brandoni

Disc check valve - W6 | Brandoni
Brandoni Valves

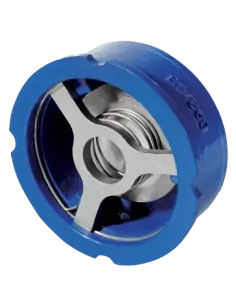

Brandoni W6 – Wafer Type Spring-Loaded Disc Check Valve The Brandoni W6 is a spring-loaded disc check valve designed for installation between flanges. The range includes two main variants: W6.020 with cast iron body and soft seat for HVAC, water treatment/distribution, and pumping stations; and W6.626 with CF8M stainless steel body and metal seat for...
View
Dual plate check valve - D6 | Brandoni | Philippopoulos s.a.

Dual plate check valve - D6 | Brandoni

Dual plate check valve - D6 | Brandoni
Brandoni Valves

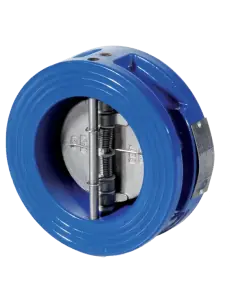

Brandoni D6 – Dual Plate Wafer Check Valve The Brandoni D6 is a dual plate check valve designed for installation between flanges (wafer type). The two plates open under differential flow pressure and are returned by stainless steel springs when flow decreases or reverse pressure occurs. No actuator is required; operation is fully mechanical. Variants...
View
Gate valve soft seated - 20.900-21.900 | Brandoni | Philippopoulos s.a.

Gate valve soft seated - 20.900-21.900 | Brandoni

Gate valve soft seated - 20.900-21.900 | Brandoni
Brandoni Valves
Brandoni Gate Valve 20.900 / 21.900 Soft Seated The Brandoni 20.900 and 21.900 are flanged gate valves with elastomer-coated wedge, designed for flow isolation in water networks, HVAC systems, water treatment, sewage, industrial auxiliary lines, and irrigation networks. Not suitable for steam, throttling, or flow regulation, nor for fluids containing oils...
View
Gate valve soft seated - 20E900 | Brandoni | Philippopoulos s.a.

Gate valve soft seated - 20E900 | Brandoni

Gate valve soft seated - 20E900 | Brandoni
Brandoni Valves
Brandoni 20E.900 Soft Seated Gate Valve The Brandoni 20E.900 is a flanged gate valve with a flat body and reduced face-to-face dimensions, designed for isolation in HVAC, water distribution, water treatment, and irrigation networks. It is not suitable for steam, throttling, oils, or hydrocarbons. Construction and Materials Body/Bonnet: Ductile Iron EN...
View
Piston Check Valve - 05 | Brandoni | Philippopoulos s.a.

Piston Check Valve - 05 | Brandoni

Piston Check Valve - 05 | Brandoni
Brandoni Valves
Brandoni Serie 05 – Spring-Loaded Check Valve The Brandoni Serie 05 is a spring-loaded check valve with a body made from grey cast iron EN-GJL-250. It is designed to prevent reverse flow in water distribution, HVAC systems, pump stations, fire protection, compressed air, oils, and hydrocarbons. Not suitable for steam service. Variants and Connections F5...
View
Regulation balancing Valve - 12.000-13.000 | Brandoni | Philippopoulos s.a.

Regulation balancing Valve - 12.000-13.000 | Brandoni

Regulation balancing Valve - 12.000-13.000 | Brandoni
Brandoni Valves
Brandoni 12.000 / 13.000 – Differential Pressure Control Valve Brandoni 12.000 / 13.000 are automatic flow control valves with variable orifice. Series 12.000 operates with a diaphragm, while 13.000 uses a piston and V-port for enhanced flow modulation and stable control under varying load conditions. Control Functions With appropriate pilot circuit...
View
Regulation balancing Valve - 14.000 | Brandoni | Philippopoulos s.a.

Regulation balancing Valve - 14.000 | Brandoni

Regulation balancing Valve - 14.000 | Brandoni
Brandoni Valves
Brandoni 14.000 – Needle Control Valve The Brandoni 14.000 is a needle-type control valve designed for regulating water flow in pipelines. Flow adjustment is achieved via axial movement of a piston, operated by a shaft and handwheel mechanism. Regulation is performed by closing against the flow direction, within a pressure-balanced chamber. Technical...
View
Regulation balancing Valve - Ekoflux D | Brandoni | Philippopoulos s.a.

Regulation balancing Valve - Ekoflux D | Brandoni

Regulation balancing Valve - Ekoflux D | Brandoni
Brandoni Valves
Brandoni Ekoflux D – Differential Pressure Control Valve (DPCV) The Brandoni Ekoflux D is a self-acting, modulating differential pressure control valve designed for hydronic heating and cooling circuits. It operates without external power supply and maintains a constant differential pressure (Δp) across the load or branch, ensuring stable hydraulic...
View
Regulation balancing Valve - Ekoflux M | Brandoni | Philippopoulos s.a.

Regulation balancing Valve - Ekoflux M | Brandoni

Regulation balancing Valve - Ekoflux M | Brandoni
Brandoni Valves
Brandoni Ekoflux M – DPCV with Isolation and Flow Measurement The Brandoni Ekoflux M is a self-acting differential pressure control valve (DPCV) designed for variable flow heating and cooling circuits. It maintains a constant differential pressure (Δp) across a load or branch without external power supply, supporting stable hydraulic conditions in HVAC...
View
Regulation balancing Valve - Ekoflux PI | Brandoni | Philippopoulos s.a.

Regulation balancing Valve - Ekoflux PI | Brandoni

Regulation balancing Valve - Ekoflux PI | Brandoni
Brandoni Valves
Brandoni Ekoflux PI – PICV Pressure Independent Control Valve The Brandoni Ekoflux PI is a pressure independent control valve (PICV) designed for hydronic heating and cooling circuits. It integrates flow balancing and control via actuator, maintaining a constant flow to terminal units or branches regardless of differential pressure fluctuations in the...
View
Regulation balancing Valve - Ekoflux PI040/PI050 | Brandoni | Philippopoulos s.a.

Regulation balancing Valve - Ekoflux PI040/PI050 | Brandoni

Regulation balancing Valve - Ekoflux PI040/PI050 | Brandoni
Brandoni Valves
Brandoni Ekoflux PI040 / PI050 – Threaded PICV The Brandoni Ekoflux PI040 / PI050 is a pressure independent control valve (PICV) designed for heating and cooling circuits. It regulates flow to terminal units or branch circuits and compensates for differential pressure fluctuations in the network. Technical Data Type: threaded pressure independent flow...
View
Regulation balancing Valve - Ekoflux S | Brandoni | Philippopoulos s.a.

Regulation balancing Valve - Ekoflux S | Brandoni

Regulation balancing Valve - Ekoflux S | Brandoni
Brandoni Valves
Brandoni Ekoflux S – Flanged Balancing Valve The Brandoni Ekoflux S is a manually operated balancing valve designed for primary circuits or individual branches in heating and cooling systems. It enables precise flow regulation via continuous presetting and allows differential pressure measurement for commissioning and verification. Technical Data Type:...
View
Regulation balancing Valve - Ekoflux SVO | Brandoni | Philippopoulos s.a.

Regulation balancing Valve - Ekoflux SVO | Brandoni

Regulation balancing Valve - Ekoflux SVO | Brandoni
Brandoni Valves
Brandoni Ekoflux SVO – Threaded Manual Balancing Valve The Brandoni Ekoflux SVO is a manually operated variable orifice balancing valve designed for hydronic heating and cooling circuits. It enables flow regulation in main branches or individual zones and supports differential pressure (Δp) measurement during commissioning and system verification....
View
Regulation balancing Valve - F15 | Brandoni | Philippopoulos s.a.

Regulation balancing Valve - F15 | Brandoni

Regulation balancing Valve - F15 | Brandoni
Brandoni Valves
Brandoni F15 – Flanged Pressure Reducing Valve The Brandoni F15 is a direct-acting, piston-operated pressure reducing valve designed for downstream pressure stabilization in water distribution systems. It is specified where the upstream supply pressure exceeds the permissible operating pressure of the downstream network. Technical Specifications...
View
Regulation balancing Valve - T15 | Brandoni | Philippopoulos s.a.

Regulation balancing Valve - T15 | Brandoni

Regulation balancing Valve - T15 | Brandoni
Brandoni Valves
Brandoni T15 – Direct Acting Pressure Reducing Valve with Threaded Connection The Brandoni T15 is a direct acting, piston-operated pressure reducing valve designed for downstream pressure control in water and compressed air systems. Connections are female/female threaded, conforming to ISO 228-1. Variants T15B: PN15, 3/8”–3/4”, single gauge port T15C:...
View
Swing Check Valve - 06-M6 | Brandoni | Philippopoulos s.a.

Swing Check Valve - 06-M6 | Brandoni

Swing Check Valve - 06-M6 | Brandoni
Brandoni Valves
Brandoni 06-M6 – Wafer Type Swing Check Valve The Brandoni 06-M6 is a wafer swing check valve designed for installation between flanges. The 06 series is supplied without a return spring, while the M6 variant includes a spring for assisted closure, allowing installation in both horizontal and vertical pipe runs, depending on flow direction. Variants and...
View
Swing Check Valve - S6 | Brandoni | Philippopoulos s.a.

Swing Check Valve - S6 | Brandoni

Swing Check Valve - S6 | Brandoni
Brandoni Valves
Brandoni S6 – Flanged Swing Check Valve The Brandoni S6 is a flanged swing check valve designed for water networks, HVAC systems, water treatment, agricultural, and industrial process applications. The disc opens with forward flow and closes automatically when differential pressure decreases or reverses. No actuator is provided; operation is fully...
View
Venturi Check Valves - M16 | Brandoni | Philippopoulos s.a.

Venturi Check Valves - M16 | Brandoni

Venturi Check Valves - M16 | Brandoni
Brandoni Valves
Brandoni M16 – Venturi Check Valve The Brandoni Series M16 is a flanged Venturi-type check valve constructed from grey cast iron, designed for water networks, water treatment systems, and general industrial process applications. The Venturi body geometry reduces pressure losses compared to conventional check valve designs. Not suitable for steam or gas...
View
