KITO B6.2N – Vent Cap with Flame Arrestor

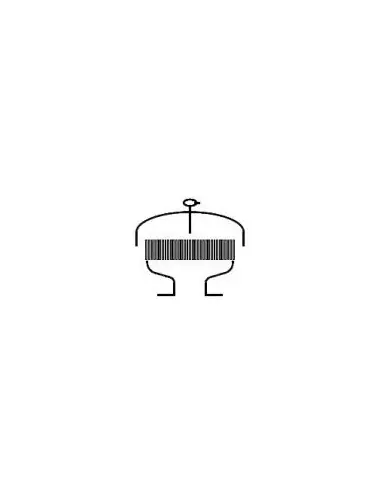

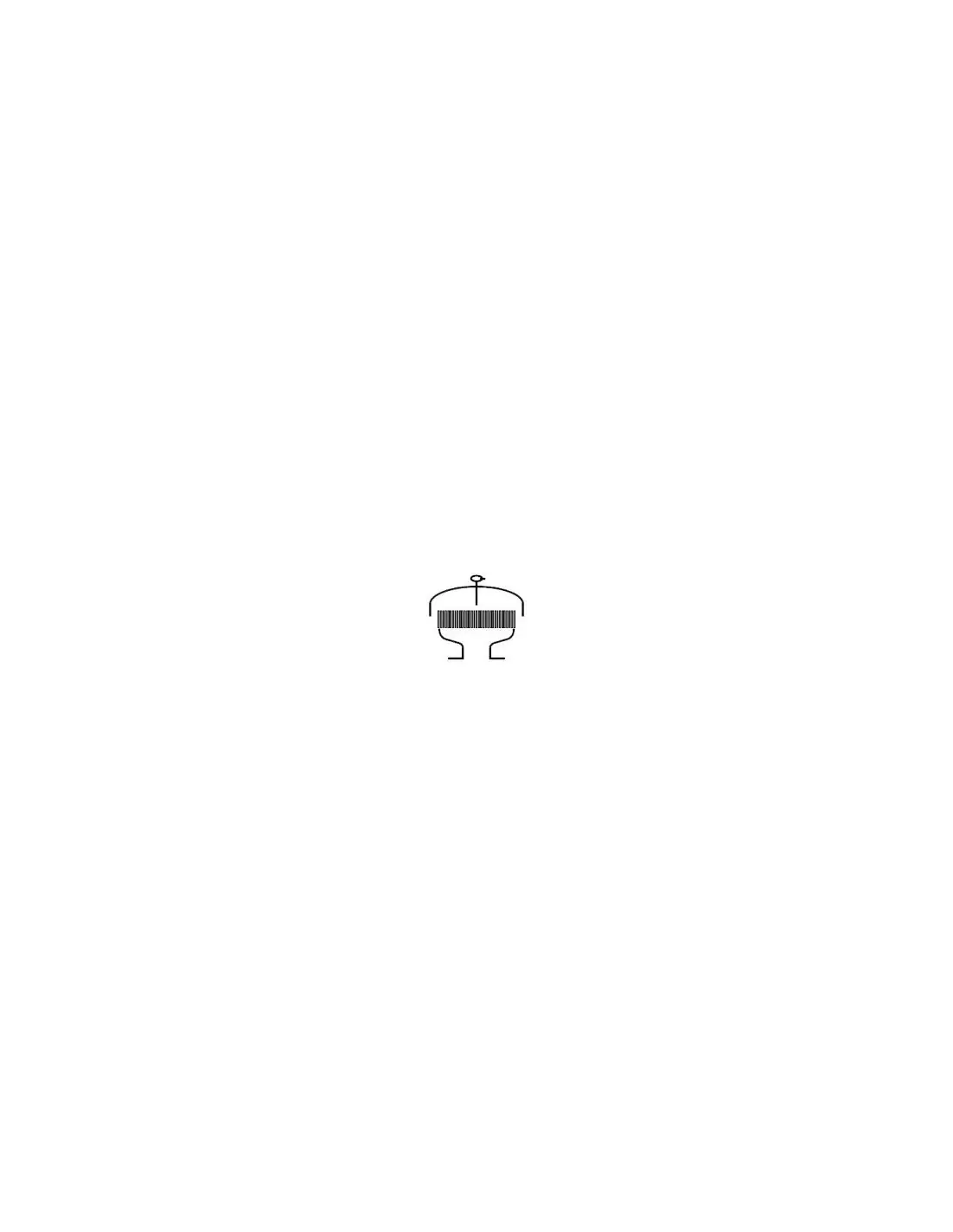

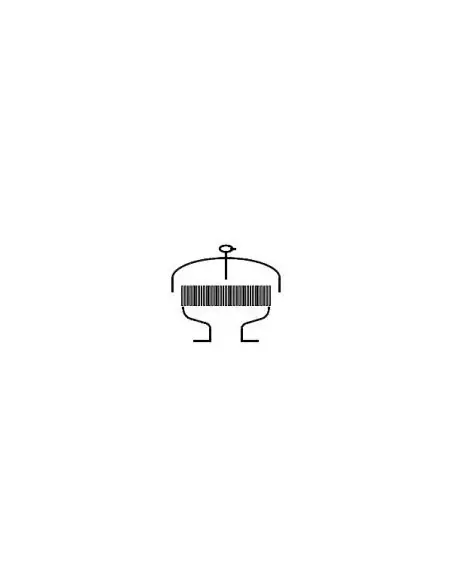

The KITO® VH-…-IIB3-XT is a terminal tank vent device equipped with a flame arrestor element for deflagration and short-time burning protection. Designed for installation on tank roofs, manway covers, or vent line terminations, it enables tank breathing (inhalation/exhalation) while preventing flame transmission into the vessel.

Operating Range

  • Explosion group: IIB3
  • MESG: ≥ 0.65 mm
  • Max operating temperature: 180 °C
  • Protection: flame transmission (deflagration) and short-duration burning
  • Installation: not suitable for enclosed spaces
  • Sensor: PT100, connection 3/8", material 1.4571

This is a passive device. It is not a pressure/vacuum relief valve, has no actuator, and does not provide a defined set pressure. For tanks requiring overpressure or vacuum control, a separate P/V valve is necessary.

Dimensions and Connections

Available in DN 50 to DN 400. DN 50–150 supplied in PN 16; DN 200–400 in PN 10. Standard connection is flange EN 1092-1 type B1, with optional ASME B16.5 Class 150 RF.

Materials of Construction

  • Body: cast steel 1.0619; from DN 350, steel
  • Optional: stainless cast steel 1.4408; from DN 350, stainless 1.4571
  • Flame arrestor element: replaceable
  • Housing: steel or stainless 1.4571
  • Mesh: 1.4310 or 1.4571
  • Weather hood: 1.4301 or 1.4571
  • Protective mesh: 1.4301 or 1.4571

Sizing

DN selection is based on required breathing flow, allowable pressure drop, gas density, and explosion group. Flow curves are provided for air (ρ = 1.29 kg/m³ at 273 K); density correction is required for other gases.

Standards and Certification

Type test certification per EN ISO 16852 and CE marking in accordance with ATEX 2014/34/EU.

Datasheet and documents

Description

KITO® VH-…-IIB3-XT

  • End-of-line venting device incorporating an explosion and short-time burn proof flame arrester element for installation on storage tanks.
  • Suitable to protect flammable products of explosion group IIB3 with a maximum experimental safe gap (MESG) ≥ 0.65 mm up to a maximum operating temperature of 180 °C.
  • This device is not permitted to be installed in enclosed areas.
  • Installation on top of storage tanks, tank access covers or at the end of breather pipes.
  • It prevent a flashback into the tank and allows the inbreathing and out breathing of the tank.
  • Design with temperature sensor, to detect a “stabilized burning” (burn time 1 minute).
