Body safety shower ceiling mounting, Recessed version - ClassicLine - BR 083 085 | B-Safety

Exceptional Features & Benefits of Body safety shower ceiling mounting, Recessed version - ClassicLine - BR 083 085 | B-Safety

The Body safety shower ceiling mounting, Recessed version - ClassicLine - BR 083 085 | B-Safety is designed to provide immediate and reliable protection in industrial environments. Its advanced engineering ensures quick response in emergencies, keeping personnel safe from hazardous substances.

This recessed version offers seamless integration into any industrial ceiling, saving valuable floor space and maintaining a clean, professional appearance. Its durable construction means you can rely on it in the most demanding settings, from laboratories to factories.

  • Space-Saving Design: Recessed ceiling mounting keeps the shower out of the way, yet instantly accessible when needed.
  • Instant Activation: The shower is activated easily, delivering a powerful water flow to rapidly rinse away contaminants from the body.
  • Robust Durability: Crafted from high-quality, corrosion-resistant materials to guarantee long-term performance and minimal maintenance.
  • Highly Visible: The clean, modern design and clearly marked shower head make it easy to locate in an emergency.
  • Compliance and Safety: Meets international safety standards, providing peace of mind for facility managers and workers alike.

By choosing the Body safety shower ceiling mounting, Recessed version - ClassicLine - BR 083 085 | B-Safety, your workplace is equipped with advanced safety technology that is both effective and unobtrusive. Its intuitive operation ensures that any employee, even without prior experience, can use it confidently in a crisis. Protect your team and promote a safer working environment with this smart, industrial safety solution.

Datasheet and documents

Description

Technical Specifications

  • Material: stainless steel, plastic
  • Color: green, black
  • Headroom: 265 mm
  • Installation height: 2465 mm (± 100 mm)
  • Operating pressure: 1.5 to 3 bar
  • Flow rate: 50 l/min (75/110 l/min)
  • Water inlet: ¾“ male

Norms / Approvals

  • EN 15154-2:2006
  • EN 15154-5:2019
  • ANSI Z358.1-2014
  • DIN-DVGW, DVGW, NW-0416CL0425
  • GOST-R, Certificate-No. 0615463 0615463

Product description

The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the specifications of ANSI Z358.1 and EN 15154, but is also self-draining, largely free of calcification and maintenance, and very robust and corrosion-resistant. The limited, uniform and above all soft water jet is optimized for rinsing off chemicals on the skin.

The integrated automatic flow regulator ensures a standard-compliant spray pattern regardless of the water pressure on site. With the enclosed safety sign according to EN ISO 7010 and ASR A1.3, the B-SAFETY emergency shower is marked and visibility is improved. The viewing distance is 15 meters.

DVGW
ISO9001_D_72

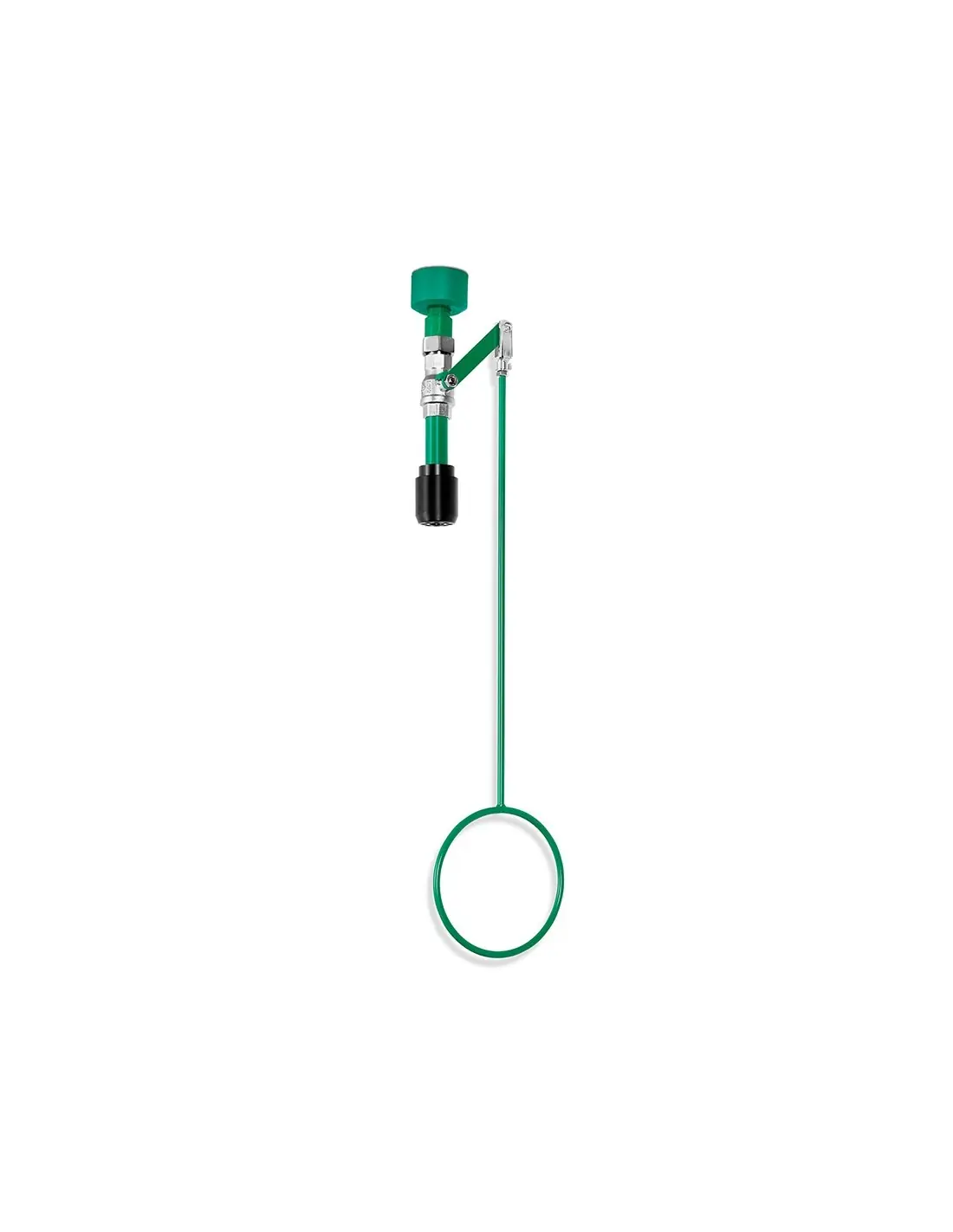

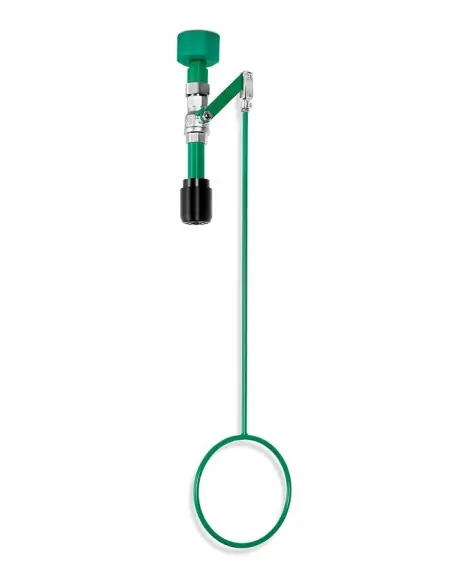

Technical Description

  • connection pipe ¾“ of stainless steel, chemical resistant green powder coated, length 75 mm, water inlet ¾” male
  • push-on rosette of polyamide to cover the installation
  • ball valve ¾” made of dezincification-resistant brass, with pull rod actuation, DIN-DVGW tested and certificated
  • pull rod with ring handle of stainless steel, chemical resistant green powder coated, length 700 mm
  • ceiling shower arm ¾“ of stainless steel, chemical resistant green powder coated, headroom 265 mm
  • integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
  • high-performance shower head of chemical resistant plastics, black, with improved spray pattern, corrosion resistant, largely scale and maintenance-free, very robust, self-draining
  • sign for body safety shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 metre
  • mounting height 2465 mm (± 100 mm)
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014, EN 15154-1:2006 and EN 15154-5:2019
  • DIN-DVGW tested and certificated
