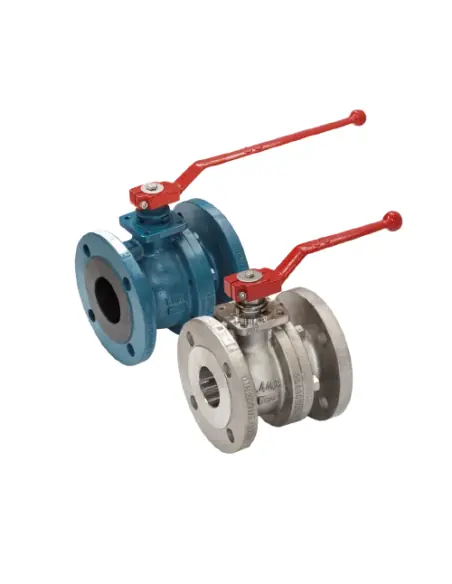

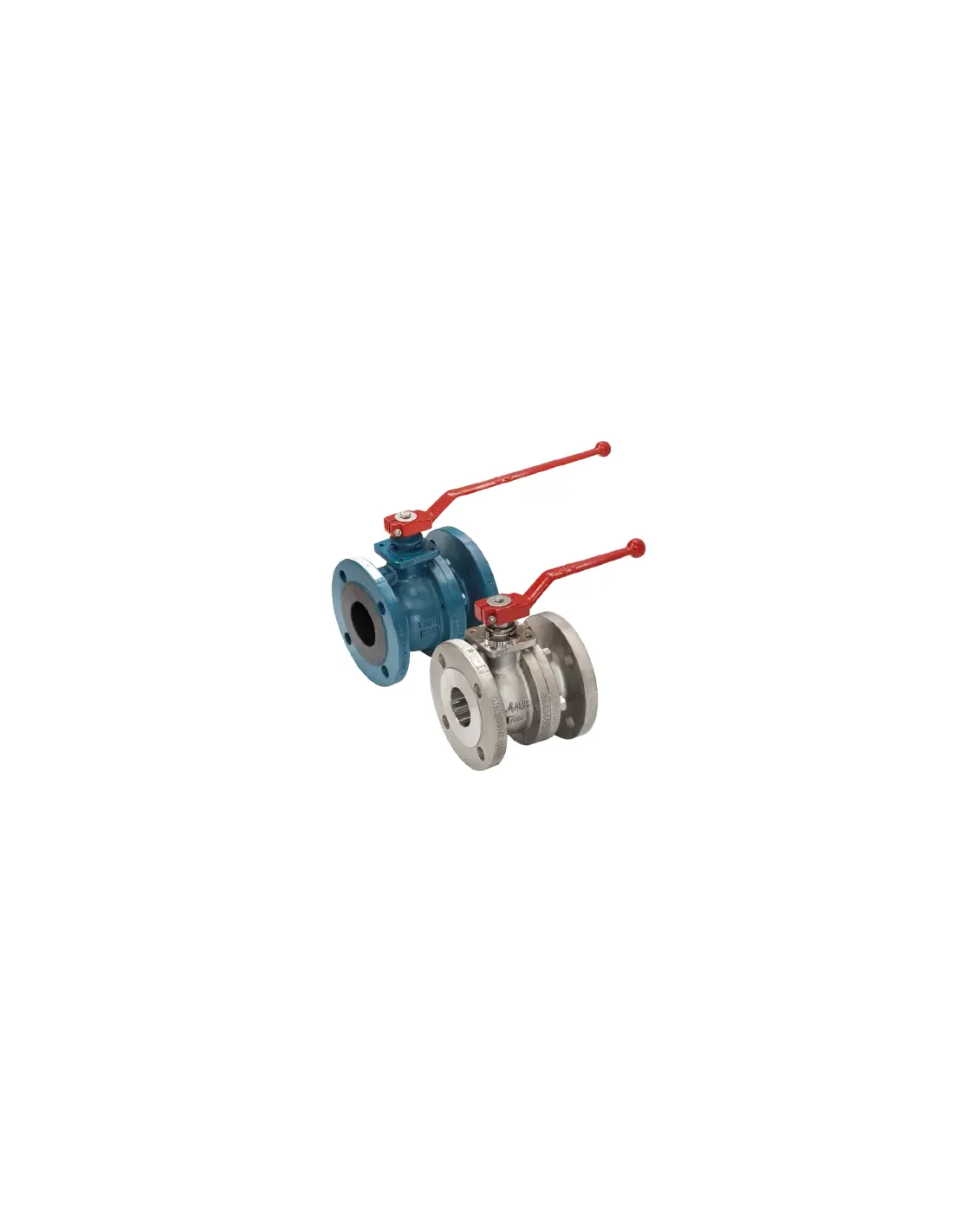

Ball Valve PN16/40 - Type 516/540 | JC: Reliable Performance, Superior Control

Experience advanced flow control with the Ball Valve PN16/40 - Type 516/540 | JC, designed specifically for industrial applications where safety, efficiency, and durability matter most. Engineered for robust performance, this ball valve offers seamless operation even in the toughest conditions.

Features and Benefits of Ball Valve PN16/40 - Type 516/540 | JC

  • High Pressure Endurance: Built to handle pressures up to PN40, this valve ensures safe and effective flow control in demanding environments, reducing maintenance needs and downtime.
  • Versatile Compatibility: Suitable for use with a wide range of fluids and gases, it adapts easily to varied industrial systems, making it a versatile addition to your operations.
  • Leak-Proof Operation: Thanks to its precision-engineered ball mechanism and reliable sealing technology, you avoid costly leaks and product waste.
  • Simple Manual Handling: The ergonomic lever allows for smooth, effortless turning, offering quick open and close functionality for fast system adjustments.
  • Corrosion-Resistant Construction: Crafted from high-quality materials, this valve resists rust and corrosion, ensuring a long service life even in aggressive working environments.
  • Easy Installation: With standardized connections and straightforward assembly, integrating this valve into your existing pipeline is hassle-free.
  • Minimal Maintenance: Designed for durability with minimal moving parts, it reduces the frequency and cost of servicing.

Choose the Ball Valve PN16/40 - Type 516/540 | JC for dependable flow regulation and long-term value. Whether you manage water distribution, chemical processes, or gas networks, this valve provides smooth, accurate, and safe control every time. Invest in quality you can trust for your industrial system.

Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • 1.0619
  • 1.4408
Pressure Rating (Options)
  • PN 16
  • PN 40
Seat (Options)
  • PTFE

Datasheet and documents

Description

PRODUCT FEATURES

Split body, Full bore
Flanged connections
Blowout-proof stem
Non-removable antistatic devices
Cavity pressure balancing hole
Live Loaded Packing

STANDARDS

PED
Quality Standard MSS SP 55
All wetted component materials meet NACE MR0175 / ISO15156 & NACE MR0103 / ISO17945
Fire-Safe API 607, ISO 10497
Fugitive Emissions : ISO 15848 / TA-LUFT
ATEX

INDUSTRIES

Oil & Gas
Chemical & Petrochemical
Pulp & Paper
Energy & Renewable
Food & Pharma
Marine
Tank terminals
Mining
Waste treatment
Special fluids transport

Certificates

Fire Safe API 607, ISO 10497, API 6FA

Fugitive Emissions ISO 15848 TA LUFT (VDI 2440)

PED 2014/68/EU - CE marking

ATEX 2014/34/EU– (II2GD)

Russian Federation Certificate TRCU 10, TRCU 12, TRCU 32

Food processing and pharmaceutical industry FDA, USP CLASS VI COMPLIANCE (CE 1935/2004)

Safety Integrity Level (SIL) LEVEL 3 IEC 61508

Valves for gas distribution with maximum operating pressure 16 bar EN 13774 type approval.

Tanks for the transport of dangerous goods-Tank equipment for the transport of liquid chemicals and

liquefied gases - Product discharge and air inlet valves EN 14432

German type test certificate A216-16
