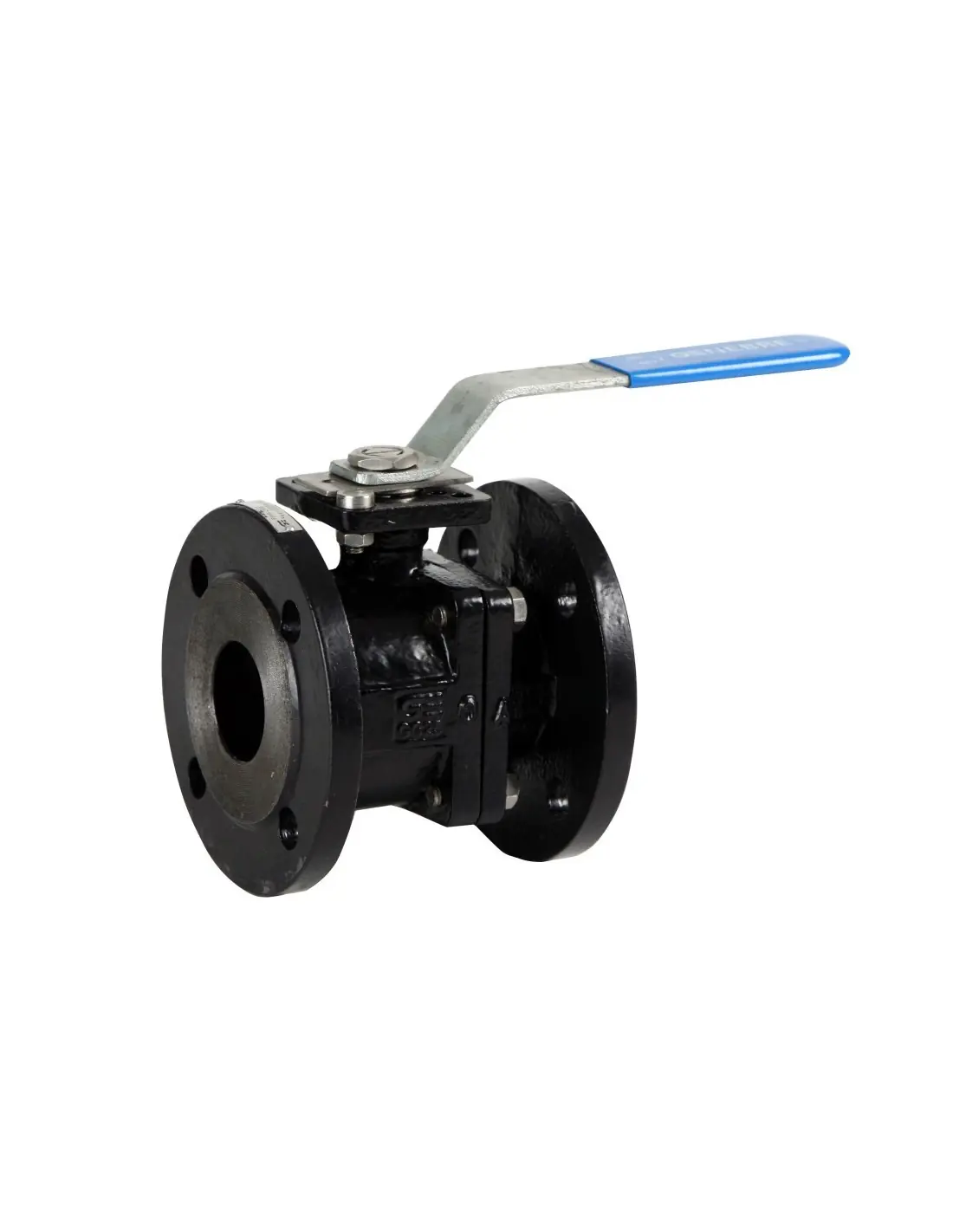

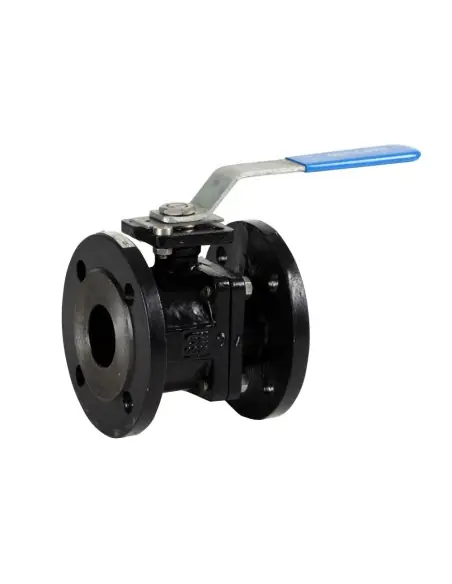

Ball Valve flanged ends - 2 pcs. Full bore ball valve flanges DIN PN 16 - 2525 | Genebre

Name: Ball Valve flanged ends - 2 pcs. Full bore ball valve flanges DIN PN 16 - 2525 | Genebre
Brand: Genebre
SKU: Ball Valve flanged ends - 2 pcs. Full bore ball valve flanges DIN PN 16 - 2525 | Genebre

Ball Valve flanged ends - 2 pcs. Full bore ball valve flanges DIN PN 16 - 2525 | Genebre: Strong, Reliable Performance for Industrial Excellence

Experience seamless control and outstanding durability with the Ball Valve flanged ends - 2 pcs. Full bore ball valve flanges DIN PN 16 - 2525 | Genebre. Designed for industrial use, this full bore ball valve delivers smooth flow, secure connections, and robust strength, making it the ideal solution for demanding applications where reliability comes first.

Features & Benefits: Why Choose the Ball Valve flanged ends - 2 pcs. Full bore ball valve flanges DIN PN 16 - 2525 | Genebre?

Full Bore Design: Enjoy unrestricted flow with a full bore opening. This design prevents pressure loss and supports high-volume transfer—perfect for large-scale operations.
Flanged Ends: The sturdy flanged ends provide a secure, leak-proof connection, ensuring effortless fitting and maintenance in any pipeline system.
DIN PN 16 Compliance: Manufactured to DIN PN 16 standards, this valve guarantees reliable operation under pressures up to 16 bar, offering peace of mind for industrial environments.
Two-Piece Body: The easy-access design allows quick inspection and maintenance, helping reduce downtime and keep systems running smoothly.
High-Grade Materials: Built from corrosion-resistant materials, it withstands aggressive environments and prolongs service life despite high mechanical stress.

The Ball Valve flanged ends - 2 pcs. Full bore ball valve flanges DIN PN 16 - 2525 | Genebre is engineered for straightforward operation—simply turn the handle for precise flow control. Its full bore construction helps prevent clogs and allows for easy cleaning, while the secure flanged ends provide dependable sealing, even under fluctuating pressures.

Incorporating this valve into your pipeline boosts efficiency and ensures you meet industry safety standards. It’s the smart choice for professionals seeking ease-of-use, fast installation, and long-lasting reliability.

Quick installation saves valuable time.
Minimal maintenance keeps costs low.
Suitable for water, gas, oil, and other industrial fluids.

Upgrade your industrial operations with the Ball Valve flanged ends - 2 pcs. Full bore ball valve flanges DIN PN 16 - 2525 | Genebre — where robust design meets everyday practicality.

Standard (Options)

Connection (Options)

Flanged

Material (Options)

EN-GJS-400-18U-LT

Pressure Rating (Options)

PN 16

Seat (Options)

PTFE + 15 % G.F

Datasheet and documents

Description

Body: ductile iron GGG-40. Ball and stem: AISI 304.

Seats: PTFE + 15% GF. Stem o’ring: viton.

Max. pressure: 16 kg/cm2. Temp. -30ºC +180ºC.

Manually operated by handle with locking system.

L: S/DIN 3202 F-4.

Reference: 2525

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2525 04	2PC FULL BORE B.V. FLANGE 1/2"	1	2.338	1/10
2525 05	2PC FULL BORE B.V. FLANGE 3/4"	1	2.889	1/8
2525 06	2PC FULL BORE B.V. FLANGE 1"	1	3.963	1/6
2525 07	2PC FULL BORE B.V.FLANG 1 1/4"	1	5.433	1/3
2525 08	2PC FULL BORE B.V.FLANG 1 1/2"	1	7.197	1/2
2525 09	2PC FULL BORE B.V. FLANGED 2"	1	9.1	1/2
2525 10	2PC FULL BORE B.V.FLANG 2 1/2"	1	13.393	1/1
2525 11	2PC FULL BORE B.V. FLANGED 3"	1	18.154	1/1
2525 12	2PC FULL BORE B.V. FLANGED 4"	1	25.447	1/1
2525 13	2PC FULL BORE BALL VALVE FLANGES DIN PN-16 5"	1	35.363	1/1
2525 14	2PC FULL BORE BALL VALVE FLANGES DIN PN-16 6"	1	49.783	1/1
2525 16	2PC FULL B.BALL VALVE FLANGES DIN PN-16 8"	1	94.833	1/1
