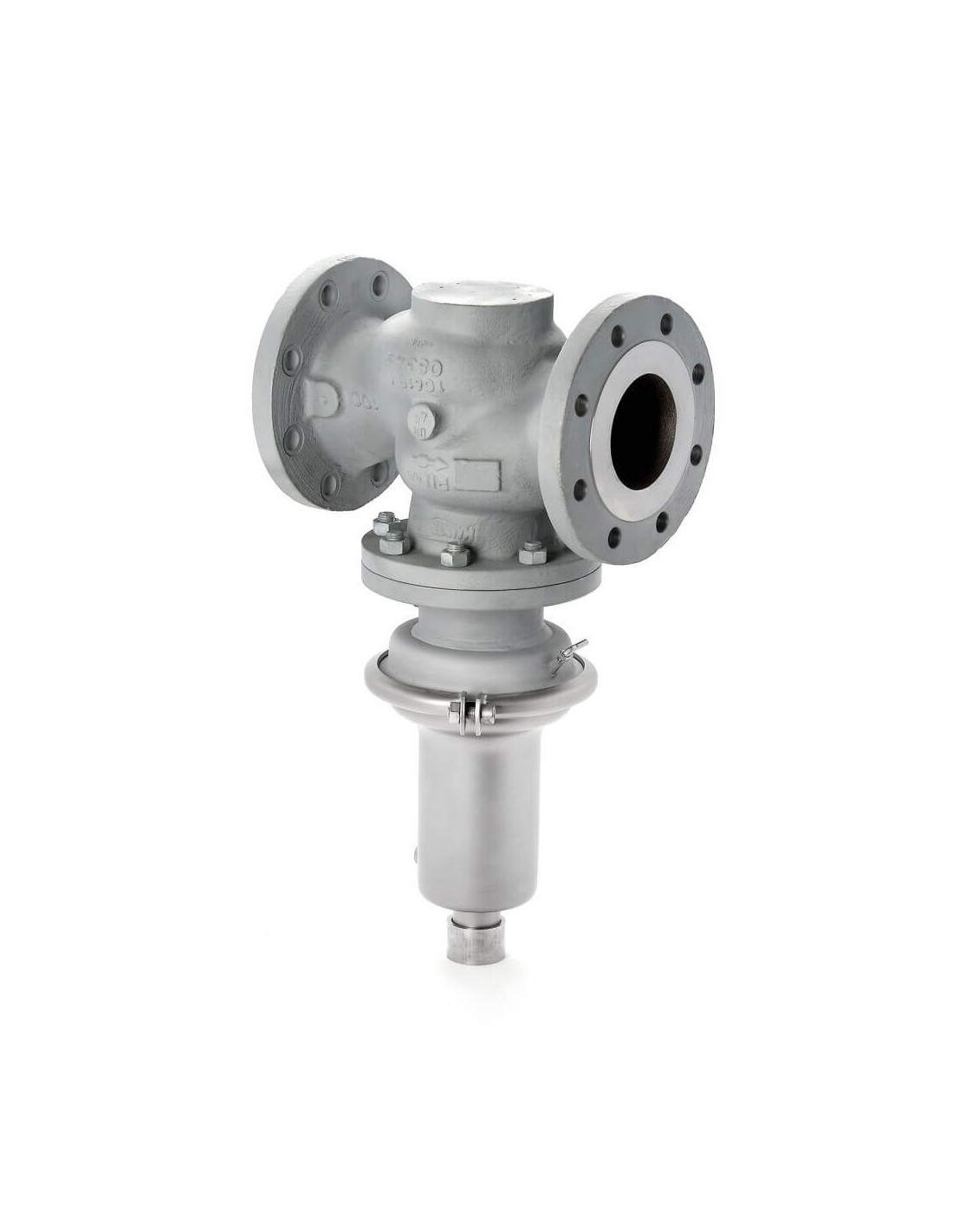

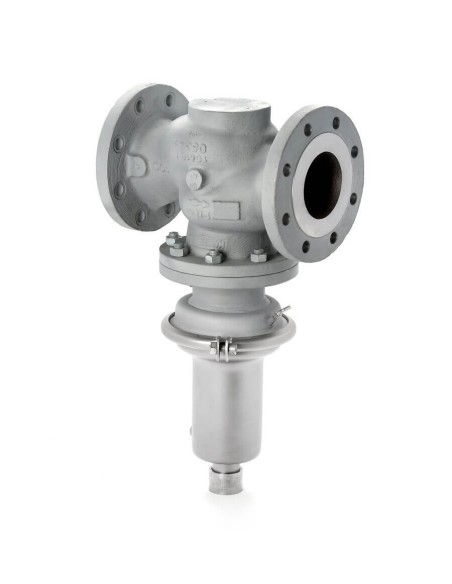

Back Pressure Regulators - UV 4.1 | Mankenberg

The Back Pressure Regulators - UV 4.1 by Mankenberg are precision devices designed to maintain a consistent upstream pressure by releasing excess pressure downstream. These regulators are ideal for applications requiring precise pressure control to ensure system stability and efficiency. They are constructed with high-quality materials to withstand various industrial environments and are known for their reliability and durability. The UV 4.1 model is particularly suited for use in processes where maintaining a specific pressure is critical for operational success.
Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • Cast Steel
Pressure Rating (Options)
  • PN 16
  • PN 40

Datasheet and documents

Description

Product features

Standard

  • Body made of GS-C 25 or stainless steel
  • Balanced cone, soft seal
  • Open spring
  • Sense line connection

Options

  • Spring cap
  • Leakage line connection and sealed adjusting screw
  • Electro-pneumatic actuation
  • Elastomer materials suitable for your medium

Technical data

DN
15 - 150
PN
16 - 40
p1
0.02 - 10 bar
Kvs
4 - 160 m3/h
T
200 °C



Advantages

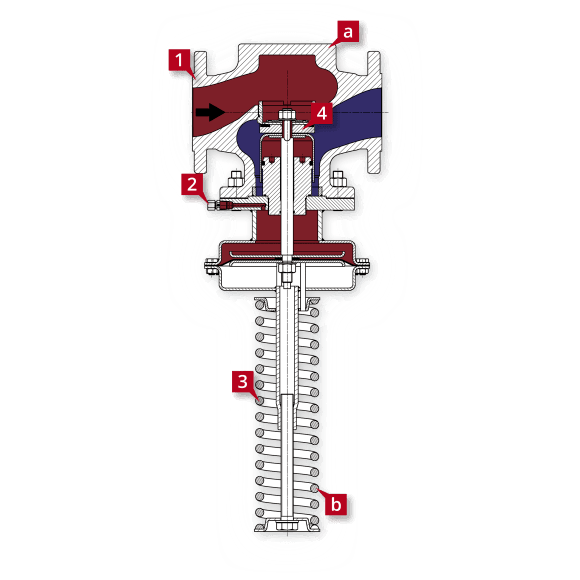

uv4-1-schnitt
1

Sturdy design

High stability, fit and forget

2

Sense line connection

High control accuracy

3

Many control modules available

Most precise control, also millibar ranges

4

Balanced cone

Control independent from counterpressure

Options

a

Body made of cast stainless steel (1.4408 / CF8M)

b

Closed bonnet with leakage line and sealed adjusting screw

Suitable for flammable and hazardous media

Inlet Pressure

Outlet Pressure

Control Pressure
