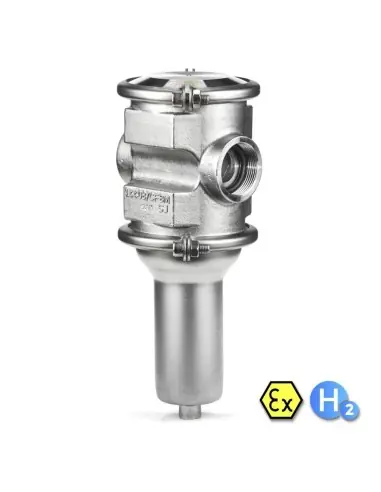

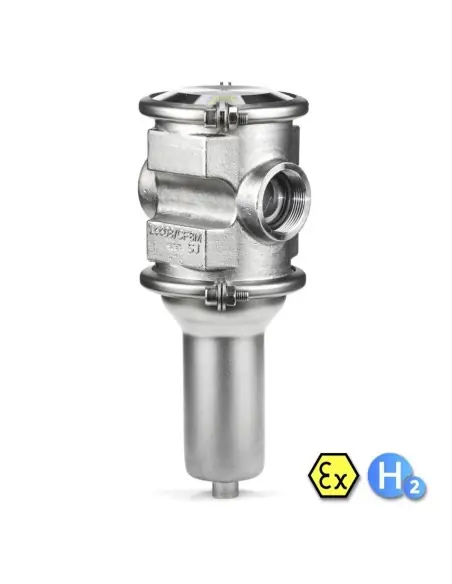

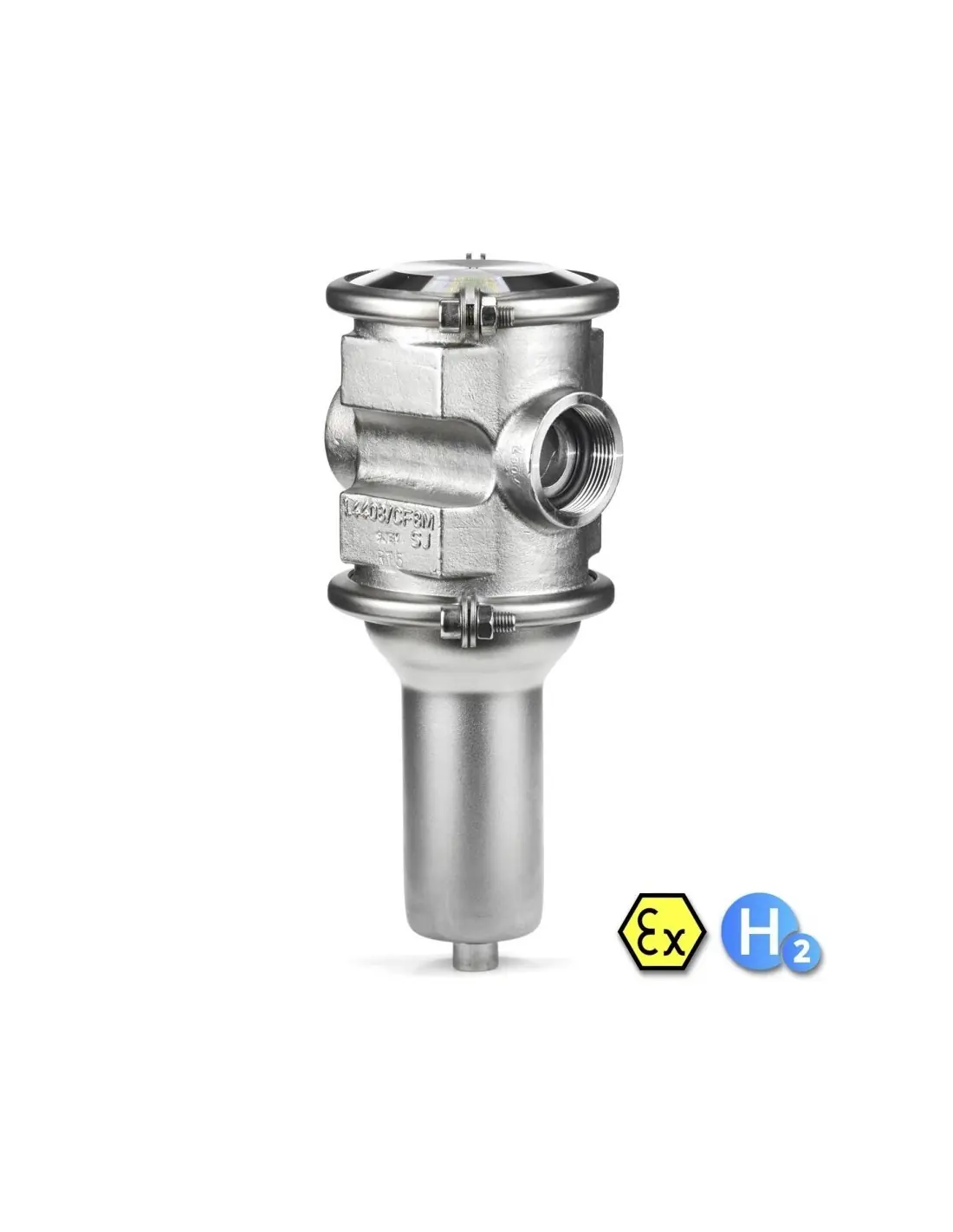

Back Pressure Regulator - UV 5.5 | Mankenberg

Experience Precision and Reliability: Back Pressure Regulator - UV 5.5 | Mankenberg

Elevate your industrial processes with the Back Pressure Regulator - UV 5.5 | Mankenberg, the smart solution designed for stable and dependable pressure control. This robust regulator is built to maintain constant back pressure, ensuring your system runs smoothly, safely, and efficiently.

Features & Benefits: Back Pressure Regulator - UV 5.5 | Mankenberg

  • Consistent Pressure Regulation: The UV 5.5 keeps your system pressure stable, protecting equipment and optimizing operations—even under fluctuating conditions.
  • Durable Stainless Steel Design: Crafted for demanding industrial environments, its sturdy construction guarantees long service life and minimal maintenance.
  • Automatic Operation: Adjusts back pressure automatically without manual intervention. This saves time and eliminates guesswork.
  • UV-Resistant Build: Engineered to withstand ultraviolet exposure, making it ideal for outdoor installations or processes where sunlight is a factor.
  • High Accuracy Performance: Delivers precise pressure control, reducing the risk of system failures and improving the quality of your end product.
  • Wide Application Range: Suitable for liquids, gases, and steam, making it a versatile choice for many industries.

The Back Pressure Regulator - UV 5.5 | Mankenberg stands out for its easy integration into existing systems. It is compact enough to fit into tight spaces while maintaining excellent flow characteristics. Installation is straightforward, so you can get up and running quickly.

Thanks to its self-acting mechanism, the UV 5.5 minimizes the need for ongoing checks and adjustments, letting you focus on more important tasks. Its resistance to corrosion and tough environmental conditions ensures peace of mind, knowing your process is protected.

If reliability, efficiency, and safety matter to your operations, trust the Back Pressure Regulator - UV 5.5 | Mankenberg to deliver day in and day out. Improve process performance, reduce downtime, and safeguard your investment with this advanced pressure regulation solution.

Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • BSP
  • NPT
  • Flanged
Material (Options)
  • 1.4408
Pressure Rating (Options)
  • PN 20

Datasheet and documents

Description

Product features

Standard

  • Modular design
  • Completely made of stainless steel (1.4404 / 316L)
  • Soft or metallic seal
  • DIN or ANSI flanges, threaded sockets G or NPT
  • Non-rising adjusting screw
  • Quick-release fastener for the body

Options

  • ATEX version
  • Elastomer materials suitable for your medium
  • Aseptic or JIS flanges or welding ends

Technical data

DN
15 - 50
G
1/2 - 2
PSmax
20 bar
p1
0.5 - 20 bar
Kvs
1.3 - 7.5 m³/h
T
-40 up to 200 °C

Advantages

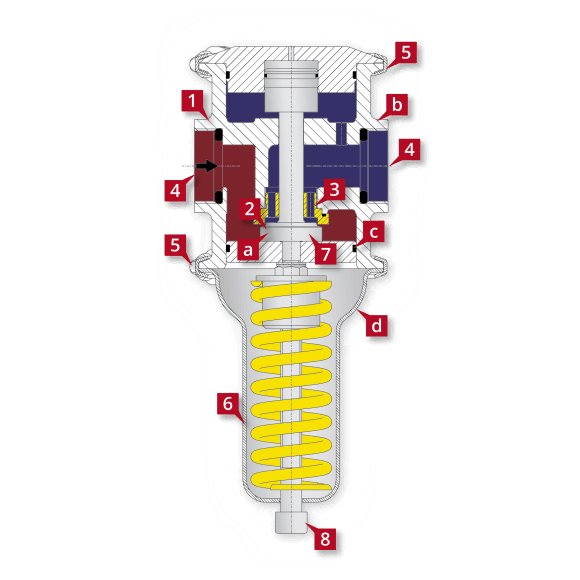

uv5-5_schnitt
1

Completely made of stainless steel (1.4404 / 316L)

Long operational lifespan, corrosion-resistant

2

Soft or hard gasket

Also usable for abrasive media

3

Exchangeable seat

Easy adjustment to changed flow rates

4

EASY-ADAPT – Connection adapter

5

Mankenberg clamp system

Easy maintenance

6

Exchangeable control parts

Easy change of pressure ranges

7

Balanced cone

Control independent from counterpressure

8

EASY-CHECK – Non-rising adjusting screw

Function visible from outside, simple and precise setpoint adjustment, unchanged overall height

Options

a

Hard-faced valve cone and seat

Suitable for high pressure drops

b

Special material possible: Duplex, Super Duplex, Hastelloy® and titanium available

c

Elastomers made of FKM, NBR, PTFE or others

d

Delivery in accordance with NACE

Outlet Pressure

Inlet Pressure
