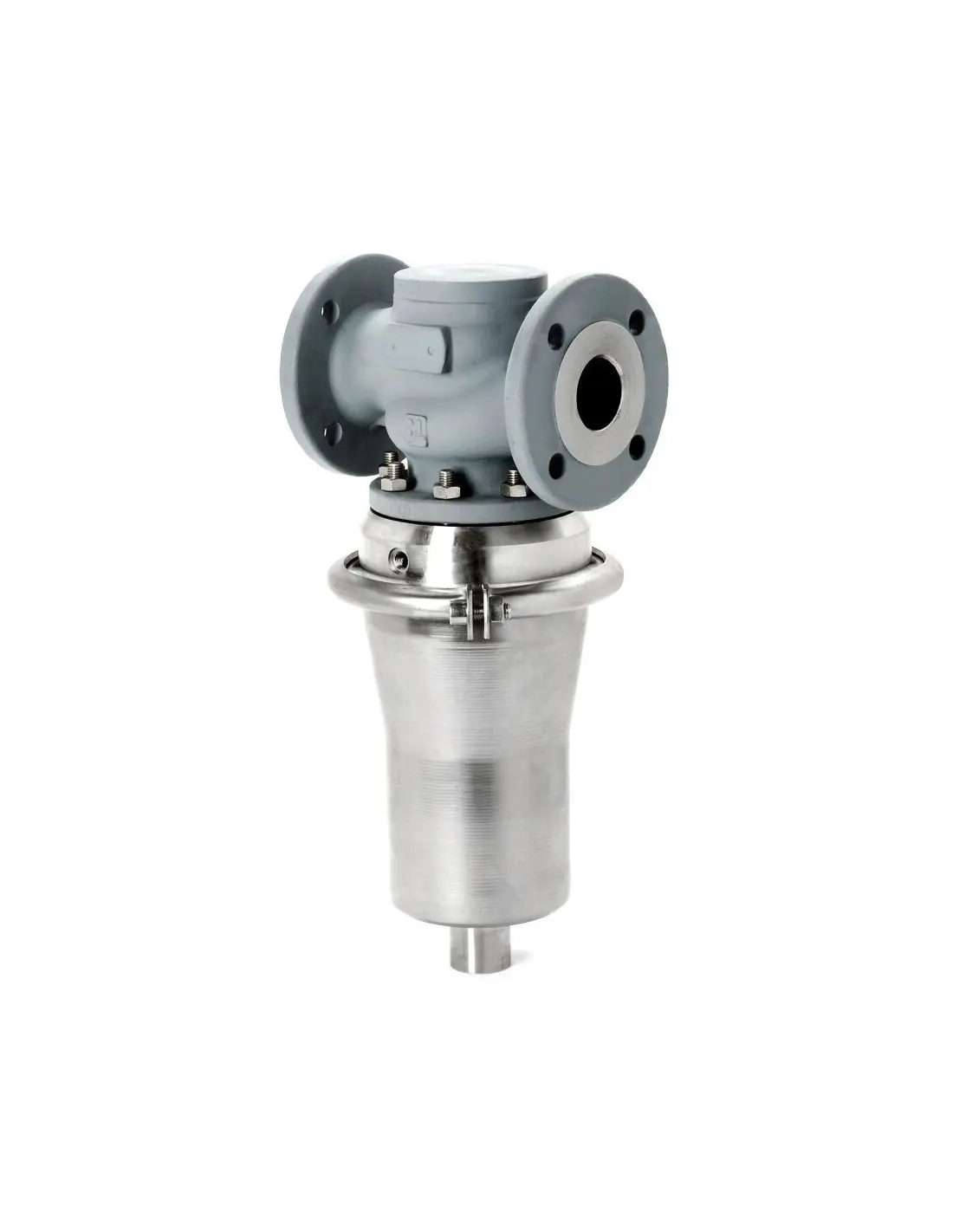

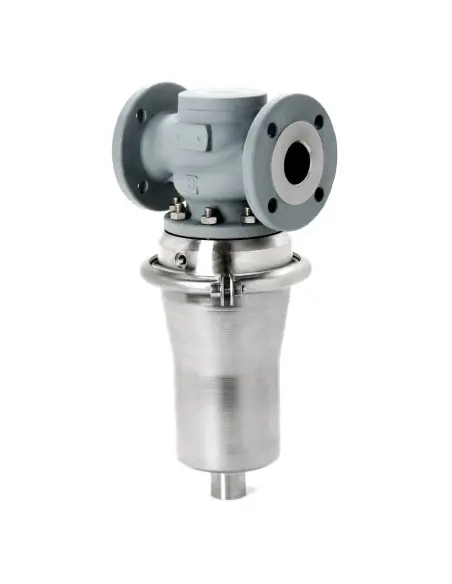

Back Pressure Regulator - UV 4.5 ASME | Mankenberg: Optimize Flow, Enhance Safety

The Back Pressure Regulator - UV 4.5 ASME | Mankenberg is the reliable solution for maintaining consistent pressure in your industrial processes. Built to deliver exceptional performance, this regulator keeps your systems running smoothly and safely, no matter the demands.

Features & Benefits of the Back Pressure Regulator - UV 4.5 ASME | Mankenberg

  • Precise Pressure Control: This regulator ensures steady back pressure, preventing unwanted pressure drops or spikes. Your equipment is protected and system integrity is maintained at all times.
  • Durable Construction: Manufactured to meet strict ASME standards, the UV 4.5 guarantees robust performance even in the toughest environments. Its stainless steel body resists corrosion, ensuring a long service life.
  • Easy Installation: Compact and lightweight, the UV 4.5 fits effortlessly into existing systems. Installation is straightforward, reducing downtime and setup costs.
  • Consistent Operation: This regulator delivers reliable results in continuous use, making it an ideal choice for demanding industrial settings. You can trust it to perform, day after day.
  • Low Maintenance: The simple design minimizes wear and tear, so maintenance is quick and easy. This saves you valuable time and resources.
  • Versatile Application: Suitable for gases and liquids, the UV 4.5 adapts to a wide range of industrial processes, providing flexibility for your operations.

Take control of your system’s stability with the Back Pressure Regulator - UV 4.5 ASME | Mankenberg. Its advanced features keep your equipment safe and efficient, giving you peace of mind and optimizing productivity. Reliable, robust, and designed for industry professionals, it’s the smart choice for maintaining the perfect pressure—every time.

Standard (Options)
  • ANSI
Connection (Options)
  • Flanged
Material (Options)
  • 1.0619
Pressure Rating (Options)
  • 150 lbs
  • 300 lbs

Datasheet and documents

Description

Product features

Standard

  • Body made of A216WCB (GP240 - 1.0619) acc. to ASME
  • Diaphragm housing and bonnet made of stainless steel 316L (1.4404)
  • Internal parts made of stainless steel 316L / S31803 (1.4404 / 1.4462)
  • EPDM elastomeres
  • Balanced cone, soft seal
  • Leakage line connection and sealed adjusting screw
  • Sense line connection

Options

  • FKM elastomeres
  • PTFE protection foil for diaphragm

Technical data

NPS
1/2 - 4
Class
150 - 300
p1
4 - 145 psi
p1
0.3 - 10 bar
Cvs
6 - 75 US gal/min.
Kvs
5 - 65 m³/h
T
266 °F (steam 302 °F)
T
130 °C (steam 150 °C)

Advantages

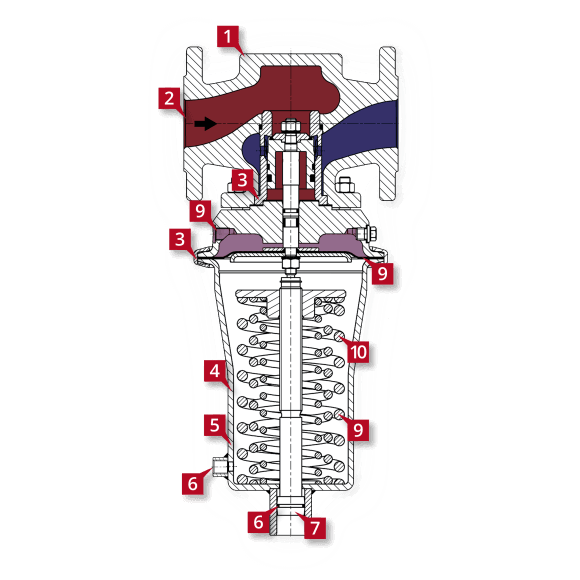

uv4-5-schnitt_1
1

Compact, sturdy design

Minimum space required, high stability, fit and forget

2

Favourable fluid dynamics

Higher KVS values

3

Mankenberg clamp system and plug-in pack

Easy maintenance

4

Closed bonnet

Complete protection against contact

5

Leakage line connection and sealed adjusting screw

Suitable for flammable and hazardous media

6

EASY-CHECK – Non-rising adjusting screw

Function visible from outside, simple and precise setpoint adjustment, unchanged overall height

7

Balanced cone

Control independent from counterpressure

8

Matched control surfaces, springs and sense lines

Very high control accuracy

9

Exchangeable drives

Easy change between pressure ranges

Options

a

Elastomers made of FKM, Teflon protection film for diaphragm

Inlet Pressure

Outlet Pressure

Control Pressure
