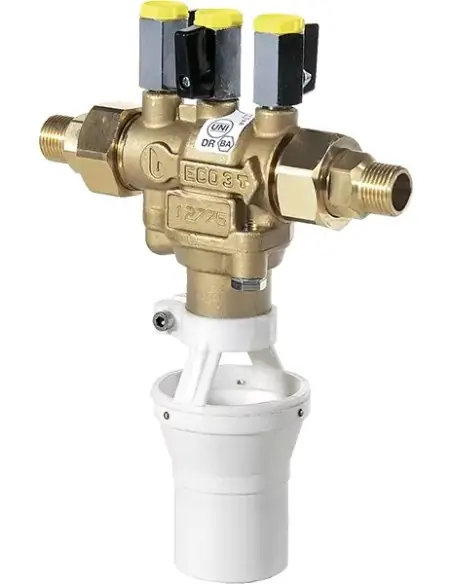

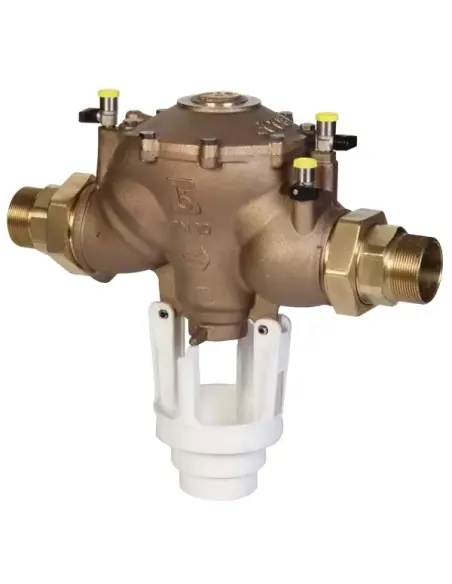

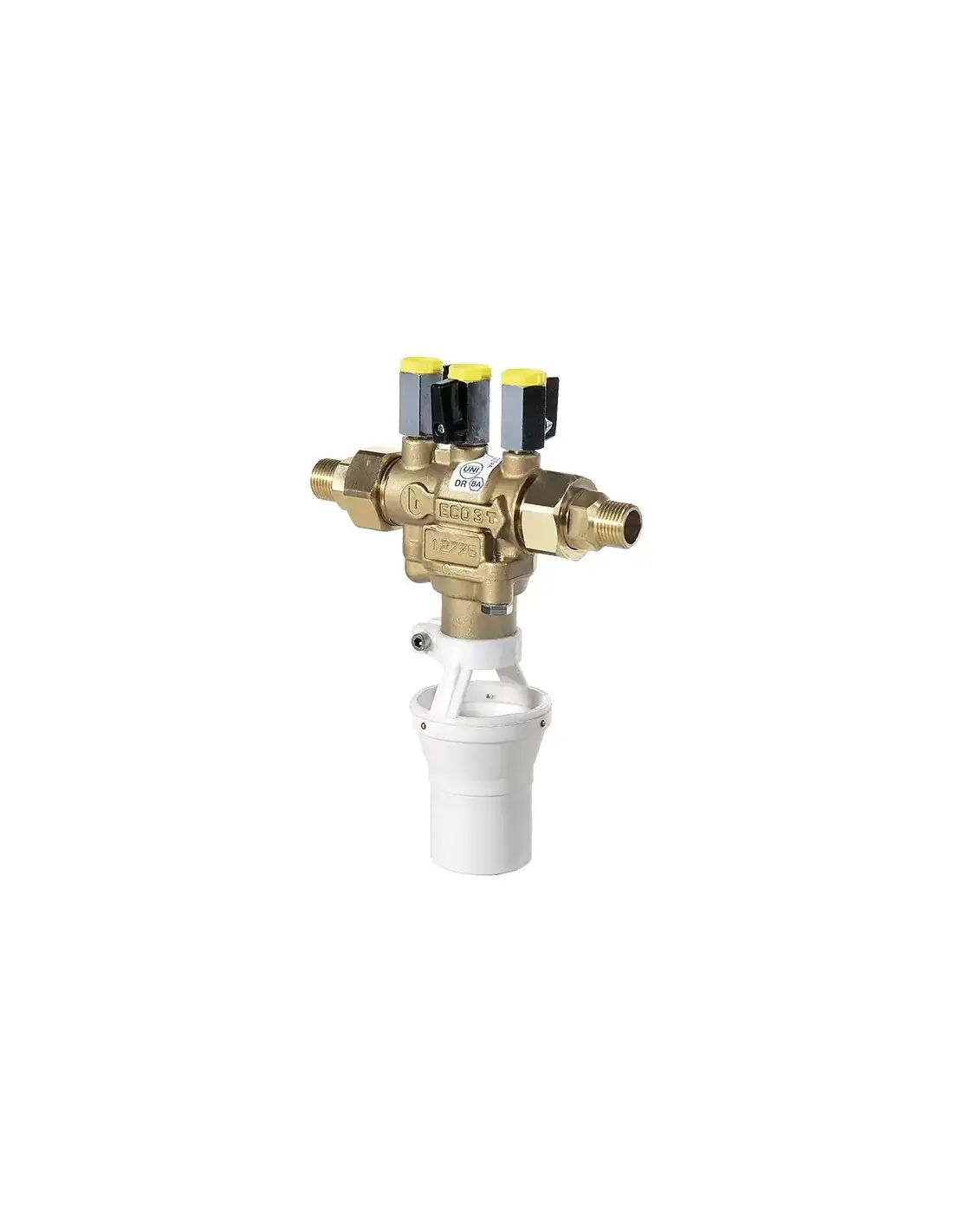

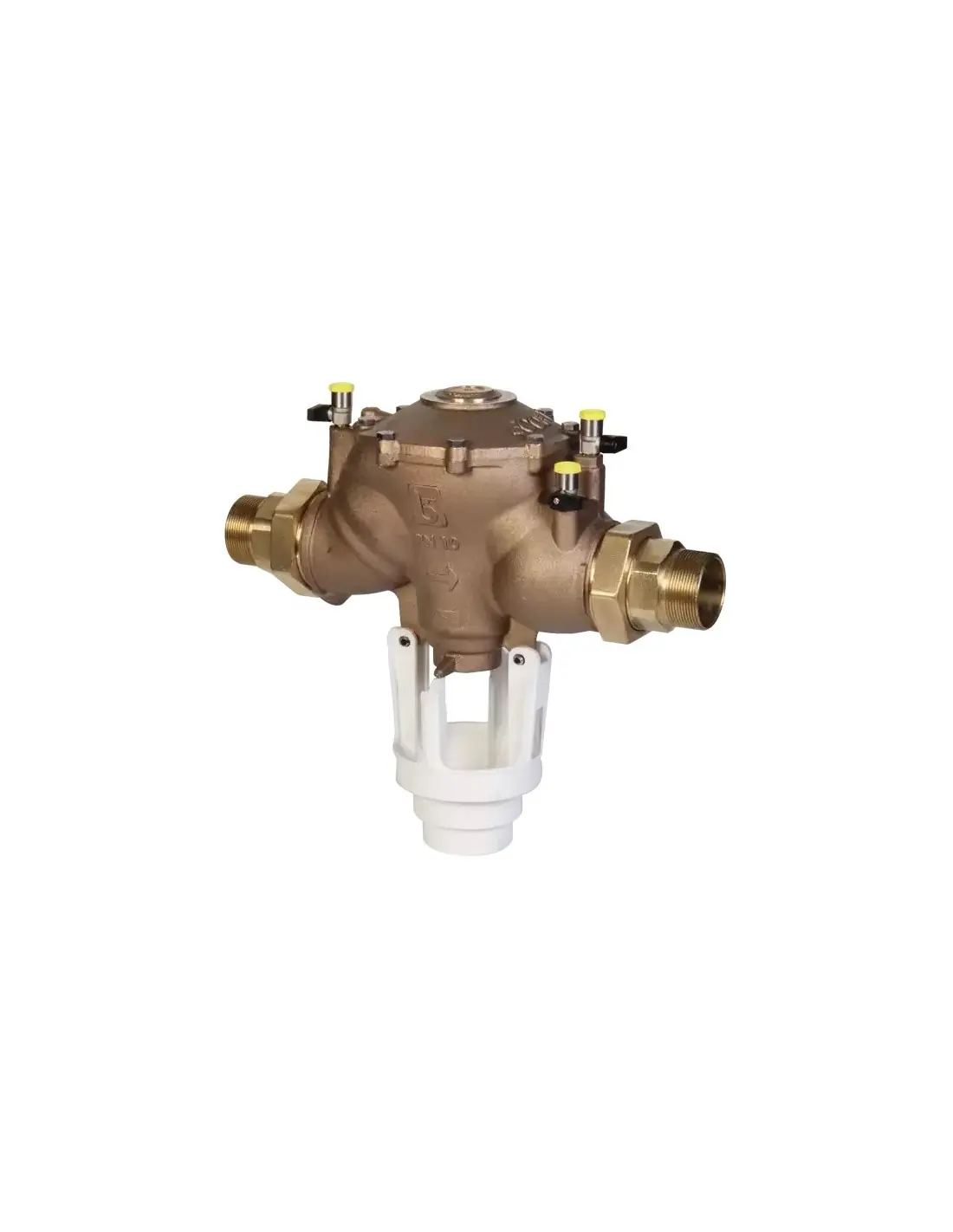

Brandoni ECO 3T – BA Type Backflow Preventer

Threaded backflow preventer with controlled reduced pressure zone, BA type according to EN 1717, certified to EN 12729. Designed for potable water supply systems requiring separation between the mains and user installations.

Construction

Connection: ISO 228-1 threaded
Standardization: DIN
Body DN 15: brass
Body DN 20–DN 50: bronze
Nominal pressure: PN 10
Assembly: two spring-loaded check valves with intermediate safety chamber

Operation

In the event of upstream vacuum or downstream backpressure, the intermediate zone is vented via a relief valve. This isolates the primary network from the user installation, minimizing the risk of contaminated water backflow.

Application Areas

Boiler rooms and closed circuit filling
Laboratories and hospital installations
Laundries, industrial water supplies, process machinery
Firefighting networks with operating pressure up to 12 bar
Connection points with potential chemical water contamination

Selection Limitations

Provides protection up to fluid category 4 per EN 1717. Not suitable for category 5 fluids, where separation by air gap is required.

Installation and Maintenance

Upstream filtration is required, along with isolation valves before and after the device. Periodic inspection is performed using the ECO3 TEST, verifying check valve tightness and relief valve function.

Standard (Options)

Connection (Options)

ISO 228-1

Material (Options)

Brass DZR

Pressure Rating (Options)

PN 10

Datasheet and documents

Description

THREADED END BACK FLOW PREVENTER WITH CONTROLLABLE REDUCED PRESSURE ZONE

The threaded end backflow ECO 3T preventers, with controllable reduced pressure zone type BA EN1717 are approved in conformity with EN12729 and are manufactured in accordance with the most severe product norms and in conformity with the quality requirements of EN ISO 9001.

The body of dimension DN 15 is made of brass and the body of dimensions DN 20-50 is made of bronze.

They consist of 2 spring check valves and a chamber situated in between the spring check valves, which contain a security valve, which in the event of “backflow”, isolates the primary network from the user network.

The backflow might be caused by siphoning (the entry pressure decreases due to ruptures in the piping upstream, the water supply is interrupted, draining off parts of the piping due to events upstream) or the build up of counter pressure (the pressure of the user network is higher than the pressure in the primary network due to overpressure caused, for example, by incoming water pumped from a private water well).

Backflow preventers are indispensable to prevent contamination of the distribution network of the drinking water from connect user units (for example, washing machines, boilers, industrial plants, hospitals, laboratories, fire fighting plants).

Backflow preventers BA type assure protection, in case of backflow, against the risk of pollution for types of water up to category 4, according reference standard EN1717.

They are not suitable for water of category 5 (fluid presenting a human health hazard due to the presence of microbiological or viral elements); in this case an air gap separation must be used.

For correct installation, it is necessary to install a filter upstream with respect to the backflow preventer, in order to avoid problems caused by dirt and residual parts present in the piping, such as shut-off valves upstream and downstream with respect to the backflow preventer.

Series ECO3T backflow preventer, even if marked PN10 complying with reference normative EN12729, due to its design and testing characteristics is suitable for installation in firefighting networks with service presure of 12 bar.
