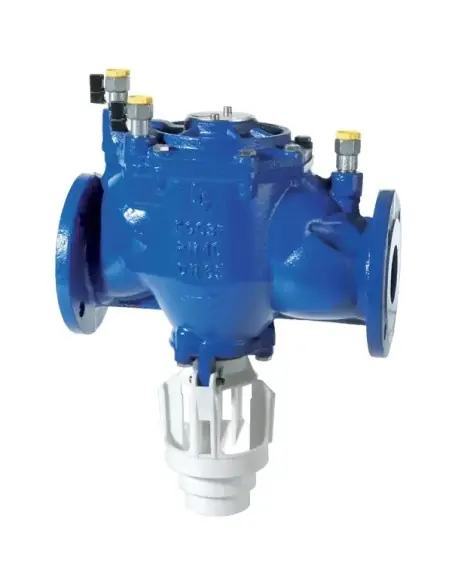

Brandoni ECO 3F – BA Type Backflow Preventer

Flanged backflow prevention assembly for potable water, featuring a controlled reduced pressure zone. Complies with EN 1717 (type BA) and certified to EN 12729. Designed for installations where there is risk of backflow due to siphonage or backpressure.

Construction and Operation

The ECO 3F consists of two spring-loaded check valves (R1/R2) and an intermediate chamber with a relief valve. In the event of upstream pressure drop or downstream overpressure, the chamber is vented to interrupt hydraulic continuity between the main supply and user installation.

Technical Specifications

Connection: Flanged DIN
Body: EN-GJL-250 / GG25 cast iron
Nominal pressure: PN 10
Sizes: DN 65, DN 80, DN 100, DN 150
Suitable media: water
Protection up to category 4 per EN 1717
Not for category 5 fluids; air gap separation required
Quality system certified to EN ISO 9001

Installation

Requires upstream and downstream isolation valves and upstream Y-strainer with drain plug. Installation must be accessible, ventilated, and outside flood-prone areas. Discharge line must be routed to a visible drain without backpressure.

Applications

Potable water supply in industrial facilities
Boiler rooms and closed heating circuits
Hospitals, laboratories, laundries
Firefighting networks (operating pressure up to 12 bar)
Connection points with potential chemical or thermal load

Maintenance and Inspection

Functional testing is performed using the ECO3 TEST kit and differential manometer. Check valve tightness (R1/R2) and relief valve opening pressure must be verified. Main service parts include gaskets, springs, and check valve assemblies.

Standard (Options)

Connection (Options)

Flanged

Material (Options)

EN-GJL-250

Pressure Rating (Options)

PN 10

Datasheet and documents

Description

FLANGED BACK FLOW PREVENTER WITH CONTROLLABLE REDUCED PRESSURE ZONE

The ECO 3F flanged backflow preventers, which have a controllable reduced pressure zone, type BA EN1717, are approved in conformity with EN12729 and are manufactured in accordance with the most severe product norms and in conformity with the quality requirements of EN ISO 9001.

They consist of 2 spring check valves and a chamber situated between the spring check valves that contain a security valve, which in the event of “backflow”, isolates the primary network from the user network.

The backflow might be caused by siphoning (the entry pressure decreases due to ruptures in the piping upstream, the water supply is interrupted, partially draining parts of the piping, as a result of the events upstream) or by increasing counter pressure (the pressure of the user network is higher than the pressure in the primary network due to overpressure caused, for example, by incoming water pumped from a private water well).

Backflow preventers are indispensable to prevent contamination of the distribution network of the drinking water from entering from connected user units (for example, washing machines, boilers, industrial plants, hospitals, laboratories, fire fighting plants).

Backflow preventers BA type assure protection, in case of backflow, against the risk of pollution for types of water up to category 4, according reference standard EN1717.

They are not suitable for water of category 5 (fluid presenting a human health hazard due to the presence of microbiological or viral elements); in this case an air gap separation must be used For correct installation, it is necessary to install a filter upstream with respect to the backflow preventer, in order to prevent problems caused by dirt and residual parts present in the piping, such as shut-off valves upstream and downstream with respect to the backflow preventer.

Series ECO3F backflow preventer, even if marked PN10 complying with reference normative EN12729, due to its design and testing characteristics is suitable for installation in firefighting networks with service pressure of 12 bar.
