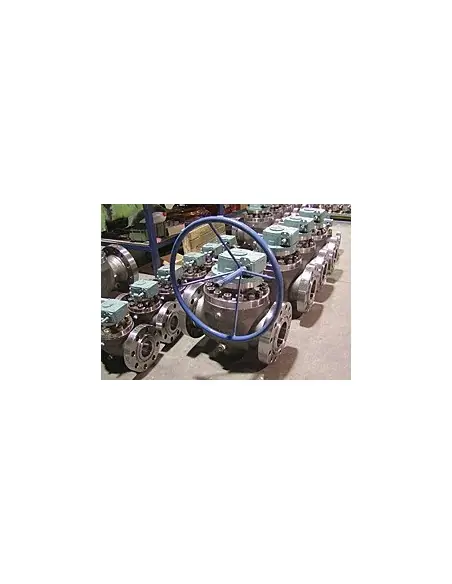

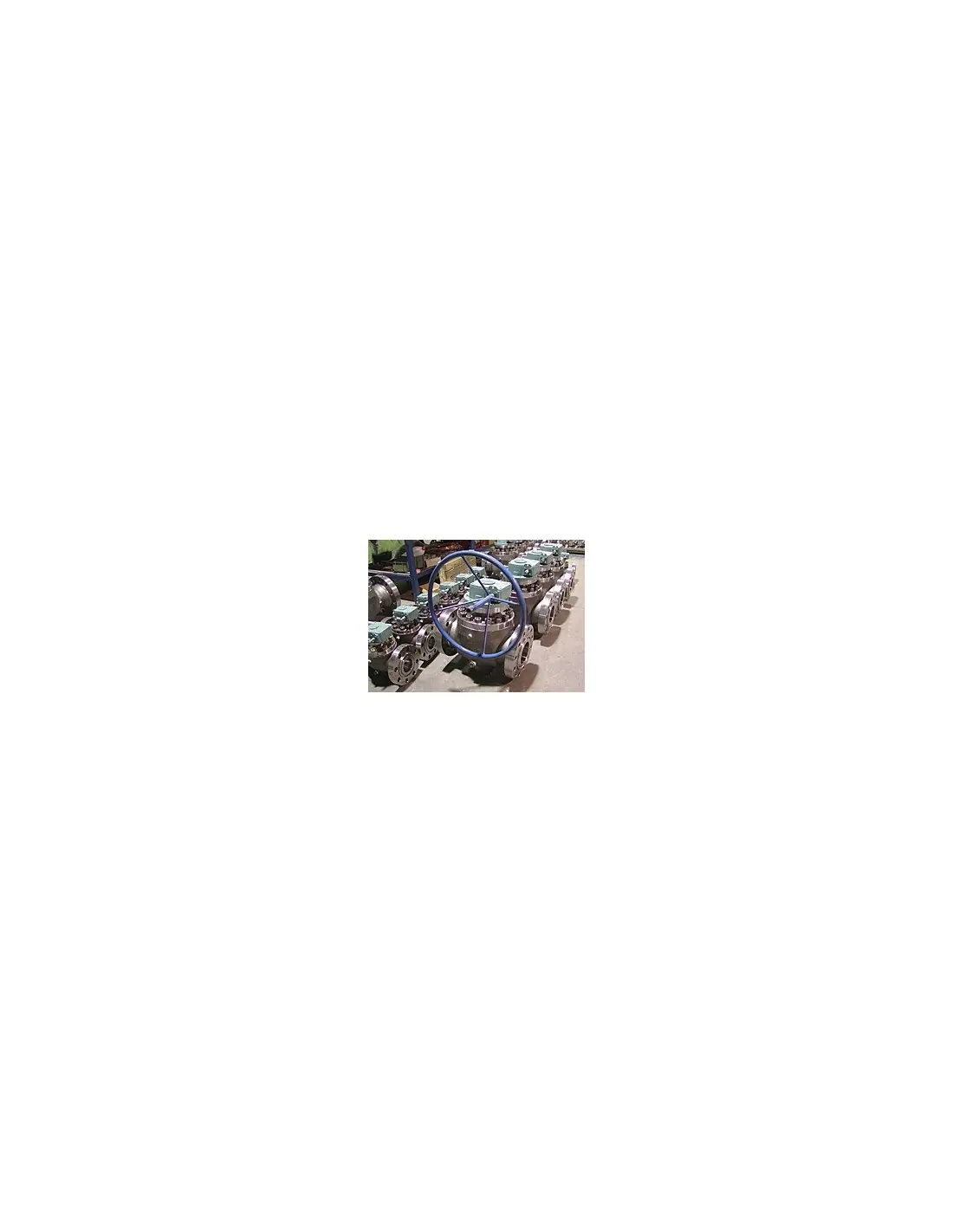

Ball Valve Trunnion Mounted Top Entry | Fluitek

Ball Valve Trunnion Mounted Top Entry | Fluitek: Ultimate Reliability Meets Smart Engineering

Discover unmatched performance and confidence in flow control with the Ball Valve Trunnion Mounted Top Entry | Fluitek. Designed for industrial environments where safety and efficiency matter, this valve offers an ideal blend of strength, precision, and easy maintenance. Each detail is engineered to provide absolute control and longevity, making it a trusted choice for demanding applications.

Key Features & Benefits of Ball Valve Trunnion Mounted Top Entry | Fluitek

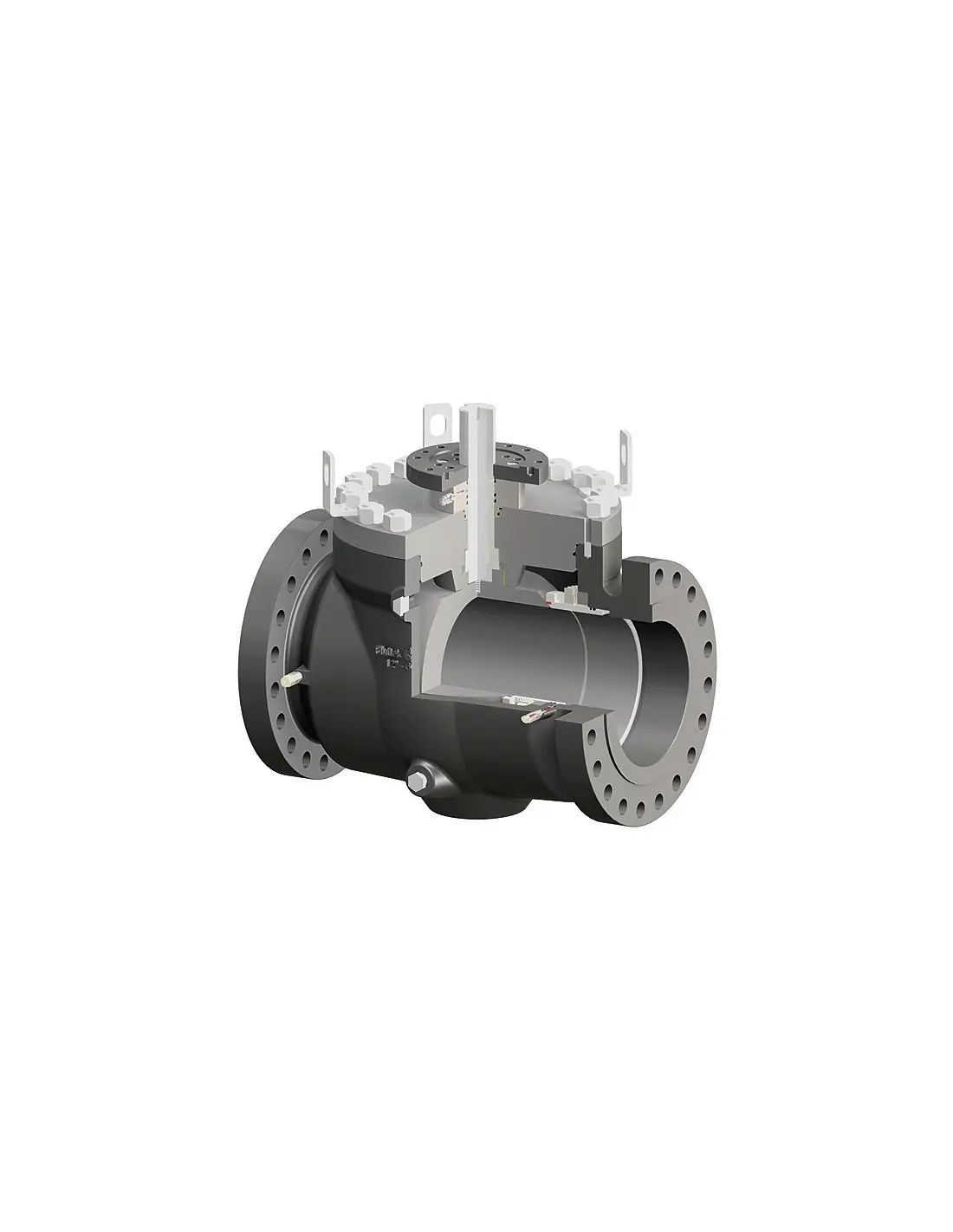

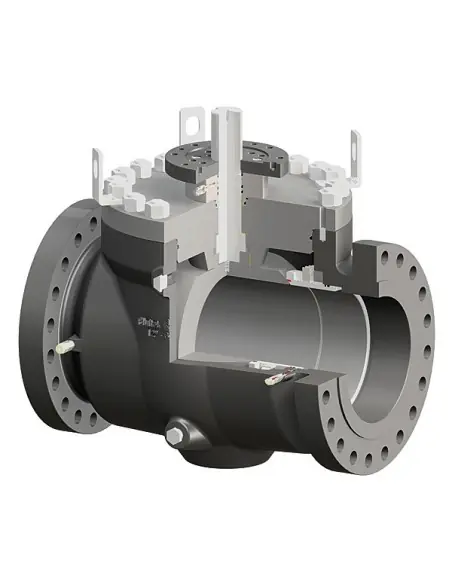

  • Top Entry Design: Experience effortless maintenance and inspection. The top entry structure enables access to all internal parts without removing the valve from the pipeline, minimizing downtime and reducing labor costs.
  • Trunnion Mounted for Stability: The ball is secured with a sturdy trunnion support, which minimizes wear and ensures consistent, reliable sealing—even in high-pressure conditions.
  • Leak-proof Operation: Advanced sealing technology prevents leaks, keeping your processes running safely and efficiently. Enjoy peace of mind knowing that hazardous materials are securely contained.
  • Robust Construction: Made from high-quality materials, the valve resists corrosion, extreme temperatures, and pressure fluctuations. It stands up to harsh industrial environments and delivers long-lasting performance.
  • Easy Automation: Integration with automated systems is simple, making remote operation and process control straightforward for any industrial facility.
  • Low Torque Requirement: The specialized design requires minimal operating force, reducing energy use and wear on equipment over time.

With the Ball Valve Trunnion Mounted Top Entry | Fluitek, you’re choosing safety, strength, and user-friendliness. Its smart engineering allows for quick servicing, reliable flow control, and adaptability to different process needs. Whether handling gases, liquids, or abrasive materials, this valve keeps your operations safer and more efficient. Invest in a valve that works as hard as you do.

Description

Valve main technical features include anti blow-out stem and valve seats design available in three different versions:

  • SPE (Single Piston Effect): the seat is energized by upstream pressure only .
  • DPE (Double Piston Effect): the seat can be energized by upstream pressure or by body cavity pressure .
  • DUAL (SPE upstream and DPE downstream): combining the two seat designs explained above, a double barrier can be assured in case of seat sealing failure.

Main reference codes:

  • Standard design can be in accordance with API 6D / ASME B16.34 / API 6A.
  • Antistatic design as per API 6D and ISO 17292.
  • Valve ends can be flanged (RF, FF, MF or FF, RTJ), according to ASME B16.5 (up to 24”) or ASME B16.47 (26” and above), Butt-Welding according to ASME B16.25.
  • Fire Safe according to BS6755 / API 6FA / API 607, since each sealing point is provided by a secondary fire-safe seal in graphite. Valve soft seats also are provided with secondary metal-to-metal seal in case of fire.

Trunnion ball valves can be manual operated (lever or gearbox depending on valve size), but also equipped with an actuator (electric, pneumatic, hydraulic, gas-over-oil etc.).

Standard design is soft seated and gear operated, the following special designs are also available:

  • METAL-TO-METAL SEAT: for high temperatures (larger than 250°C) or dirt/slurry service, hard facing on seat and ball contact surfaces (Tungsten or Chromium Carbide).
  • SUBSEA DESIGN: for subsea applications, Top Entry Ball valves are provided with additional seals, blind nuts, subsea actuators etc. Valve design according to API 6D SS and ISO 14723.
  • STEM EXTENSION. For special applications the operator (lever/gear/actuator) can be lifted by an extension fixed to valve body, and a joint coupled to the stem.

The following optional features are also available:

  • Locking device.
  • Floating ball valves for drain and vent connections (if prescribed by Customer requirements)
  • Emergency stem seal injection;
  • Emergency seats sealant injection;
  • Weld overlay (316 or Inconel 625) on dynamic sealing areas or in all wetted parts.
  • Certified lifting devices;
  • Seal welded fittings.
