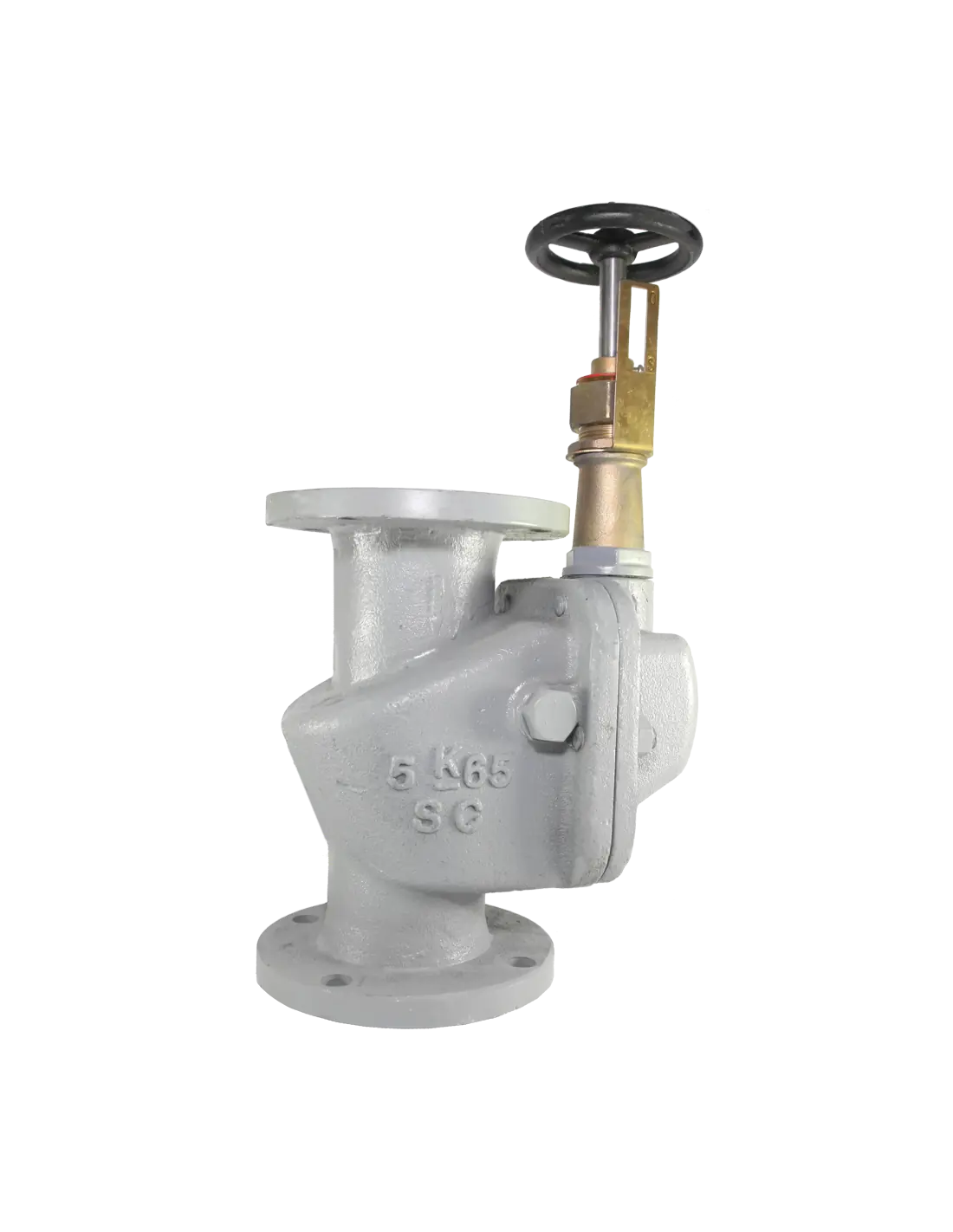

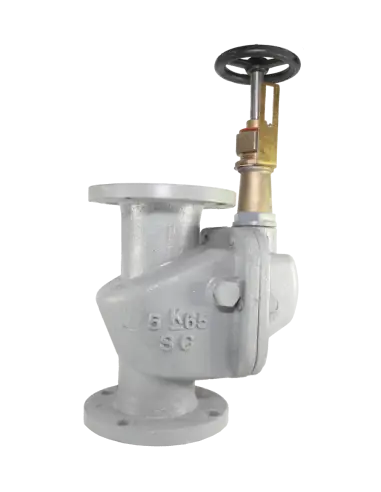

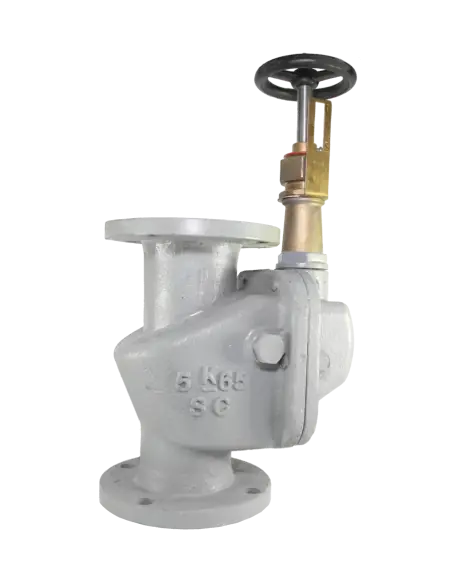

JIS 10K F3059 Cast Steel Straight-Flow Mud Box Valve
The F3059 is a flanged straight-flow mud box valve designed for marine discharge lines to the ship side. This version is cast steel, with JIS 10K flange connections and a straight / vertical pattern arrangement.
Technical Specification
- Type standard: JIS F3059
- Connection: flanges JIS B2220 – 10K
- Inspection / test: JIS F7400
- Type: straight-flow, with manual shut-off arrangement
- Typical DN: 50 to 200
- Standard materials: body cast steel SC49, seat NBR, disc bronze BC6, stem SUS403
Operation
Installed on discharge lines terminating at the ship side. The disc allows outflow and restricts seawater ingress under external backpressure from wave action or submersion. Manual shut-off is used for positive isolation during maintenance or when required by class regulations.
Difference from F3059 JIS 5K
Functional principle is identical to the 5K version, but the 10K is selected when piping, flanges, and specification require a higher pressure class. Selection should consider flange class, media, temperature, and class society requirements, not just DN.
Typical Applications
- Sanitary discharge lines
- Scupper and drain lines
- Grey water / overboard discharge
- Bilge discharge (if specified by piping spec)
- Marine networks with JIS 10K flanges
Maintenance
Inspect seat cleanliness, NBR condition, free disc movement, manual shut-off operation, and body corrosion. Increased inspection frequency is recommended for lines with solids or deposits.
