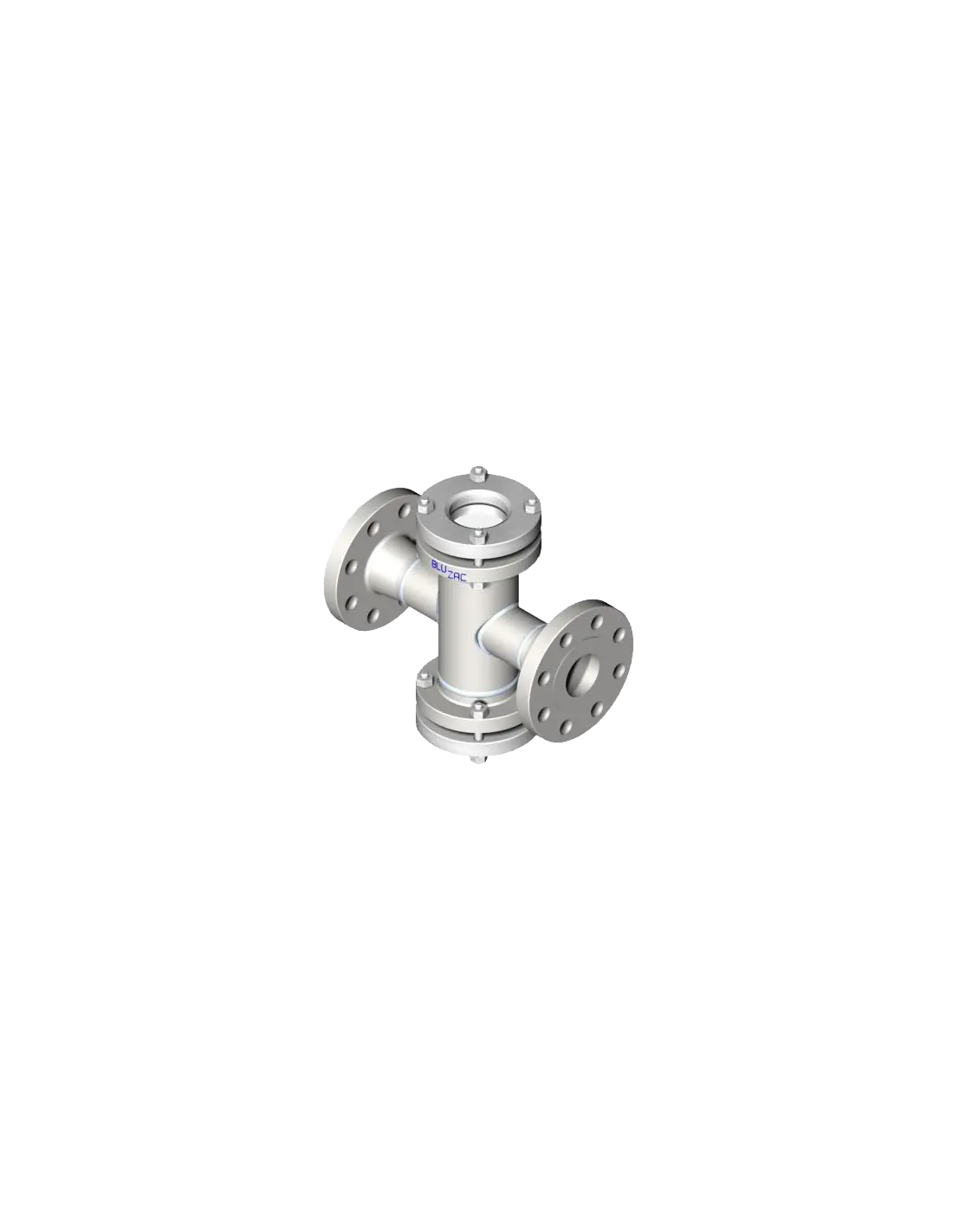

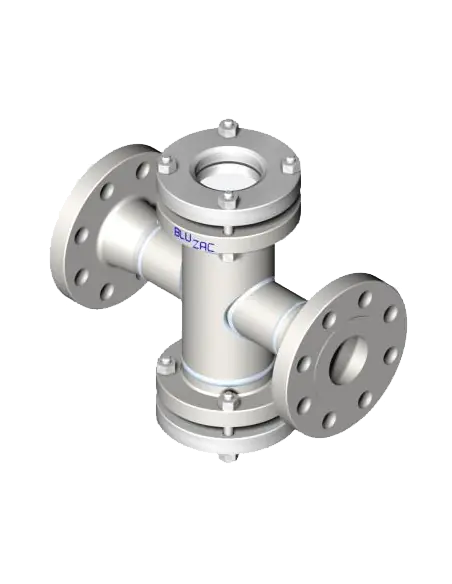

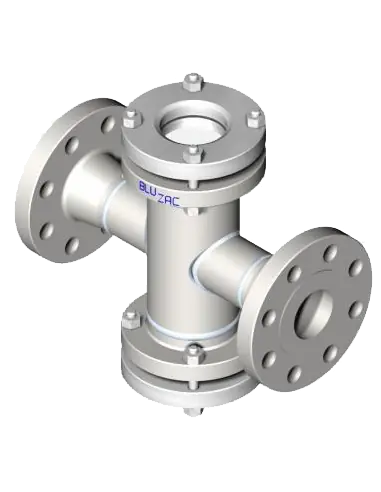

BLU ZAC GW Welded – Double-Sided Flow Indicator

The BLU ZAC GW is a double-sided flow indicator with a welded construction. It consists of a tubular body with a central observation opening and two glass plates, held by welded flanges. It is used for visual flow inspection of liquids or gases in industrial pipelines.

Technical Specifications

Sizes: 2" to 24"
Connections: butt weld per ANSI B16.25 or flanges per ANSI B16.5
Glass Versions: one or two glasses per side
Glass: tempered borosilicate per DIN 7080
Glass Limits: 51 bar for 2"–6", 25 bar for 8"–24"
Max Glass Temperature: 280 °C
Gaskets: graphite
Body Materials: ASTM A106 Gr.B, A333 Gr.6, A312 TP304 / TP316 / TP304L / TP316L, A335 P11 / P22, UNS S31254, S31803, S32750
Bolts/Nuts: ASTM A193, A320, A194, per body material

Indicator Versions

The GW can be delivered without an internal indicator element or with:

Type X: no indicator
Type Y: lug
Type Z: ball
Type W: rotor
Type K: pipe
Type V: check valve

Selection depends on fluid transparency, flow rate, flow direction, and need for simple visual confirmation or internal check arrangement.

Application Scope

Typical uses include steam mains, tracing lines, turbine lines, marine applications, presses, and process networks. Final operating pressure is determined not only by body material per ASME B16.34 but also by glass limit, diameter, temperature, and connection construction.

Installation and Maintenance

The indicator can operate in any position, with horizontal installation preferred. Line isolation, venting, and hazardous residue checks are required before maintenance. Gaskets are replaced after disassembly, and restart is gradual with leak checks.

FAQ

Does it accept an actuator?
No. It is a passive flow indicator.

What is specified in the order?
Size, BW or flanged connection, schedule/ANSI class, body material, indicator type, pressure, temperature, fluid, and requirement for single or double glass per side.

Datasheet and documents

Datasheet

Description

WELDED – FLOW INDICATOR

Sight glass indicators are pieces of equipment used to observe the flow of a fluid in a pipe.

Comprising a flanged tube pierced at the center, with two pieces of glass held in place by two welded flanges, the sight glass indicator may contain a floating or static flow indicator, which allows for instant, safe monitoring of flow inside the pipe.

On request, special versions for pressures and temperatures specified by the customer can be produced for use in a wide variety of industrial applications.

SIZES
from 2” to 24”

CONNECTIONS
Buttweld	BW	ANSI B16.25
Flanged	FLG	ANSI B16.5
