Technical Specifications
- Material: stainless steel, plastic
- Dimensions (H x W x D): 100 x 90 x 90 mm
- Operating pressure: 1 to 5 bar
- Flow rate: at least 60 l/min at 1 bar flow pressure
- Water inlet: ¾“ female
Norms / Approvals
- EN 15154-2:2006
- EN 15154-5:2019
- ANSI Z358.1-2014
- GOST-R, Certificate-No. 0615463 0615463
Product description

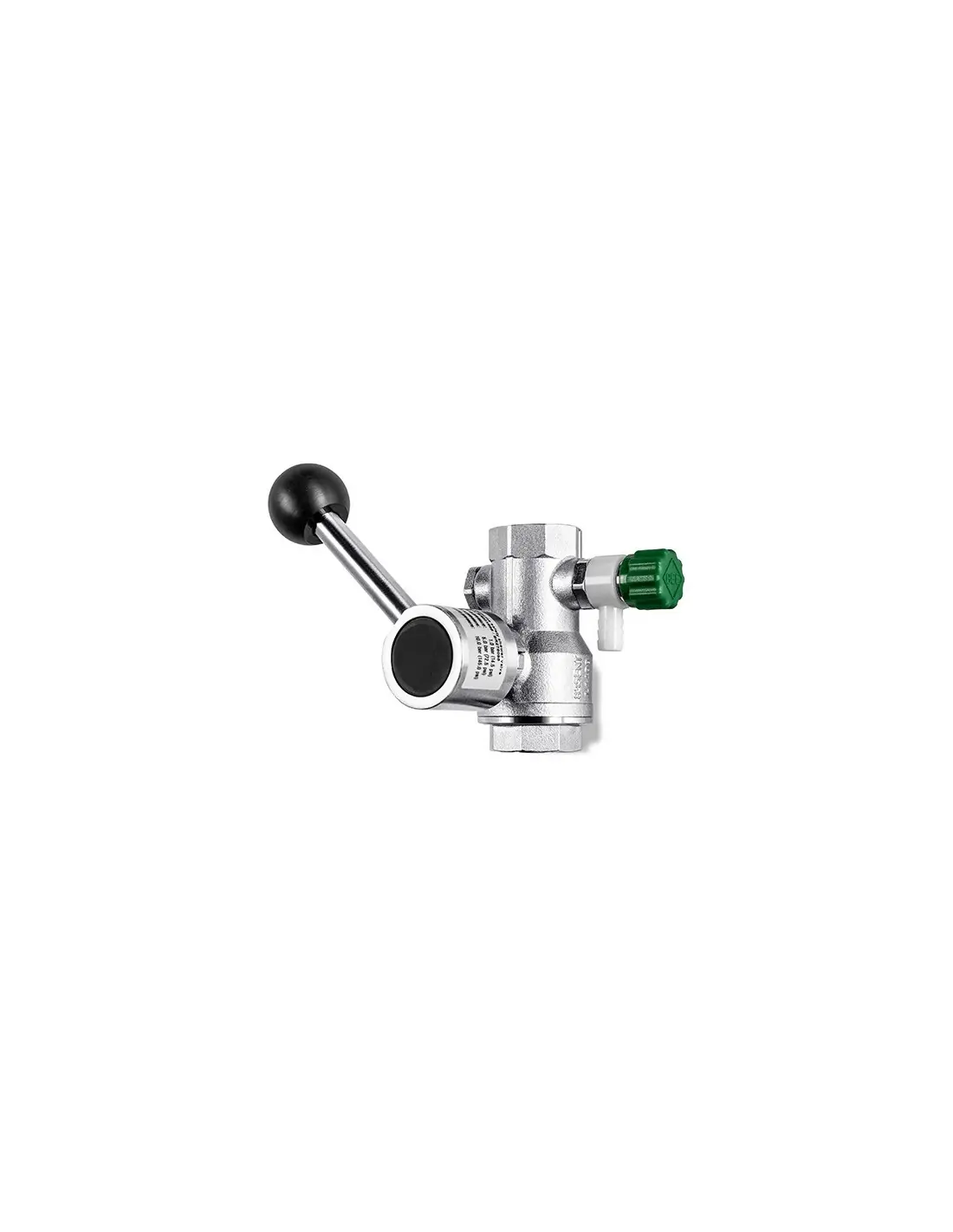

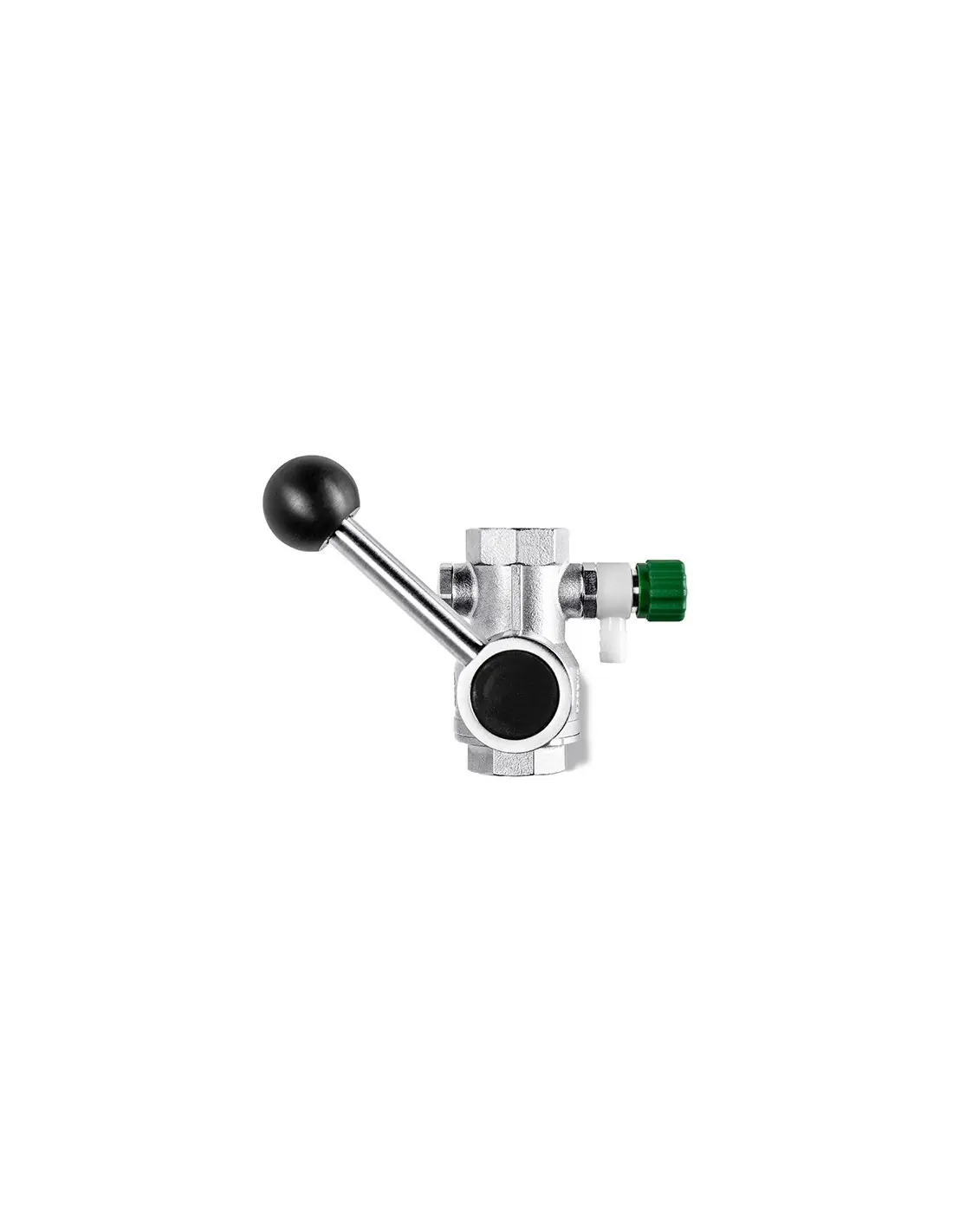

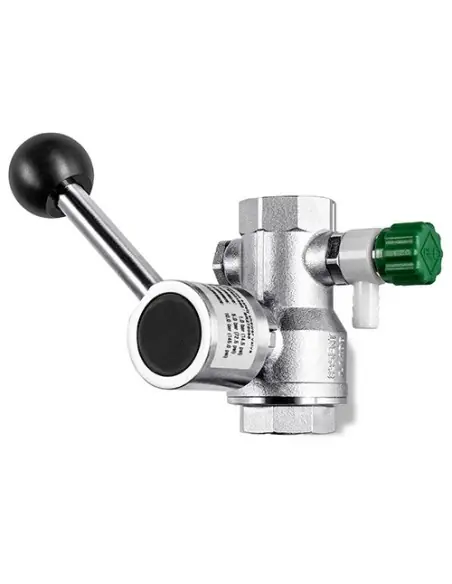

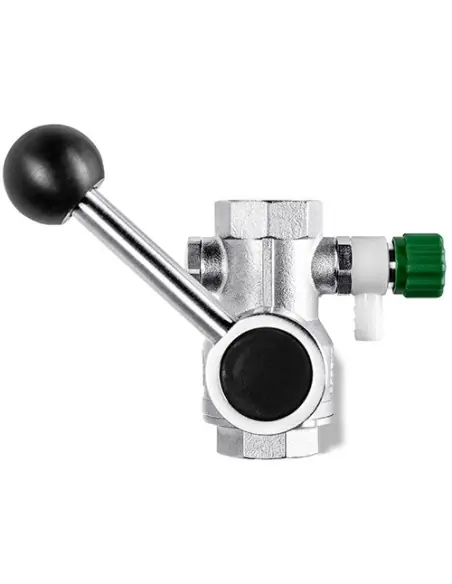

The safety shower valve consists of a robust ball valve with drinking water approval. The volume flow is at least 60 liters / minute at 1 bar flow pressure.
Mounting-Instructions:
For an installation in accordance with EN 15154-1:2006 it must be ensured, that the safety shower installation is self-draining between valve and shower head.
Technical Description
- ball valve with lever actuation of stainless steel, DIN-DVGW tested and certificated, water inlet ¾” female
- flow rate at least 60 l/min at 1 bar flow pressure
- lever made of stainless steel, polished, total length 110 mm
- robust ball handle of plastics, black, diameter 30 mm
- actuation via swivel lever, opening angle 90°, not self-closing
- integrated draining valve for automatic or manual emptying

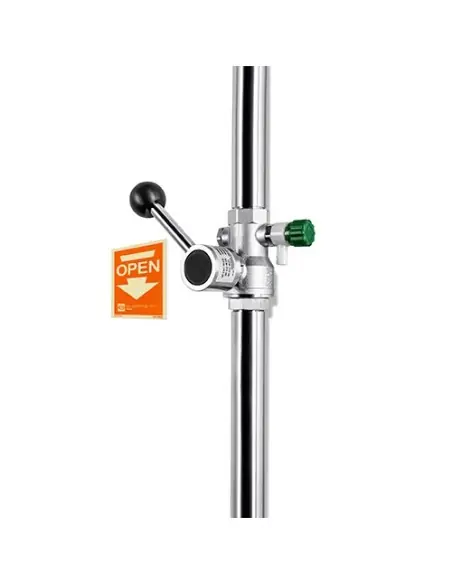

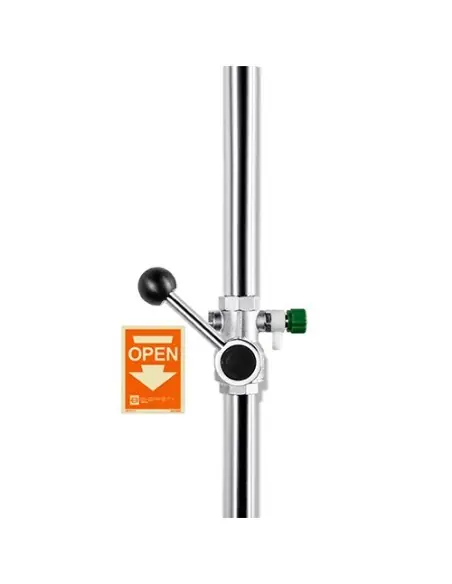

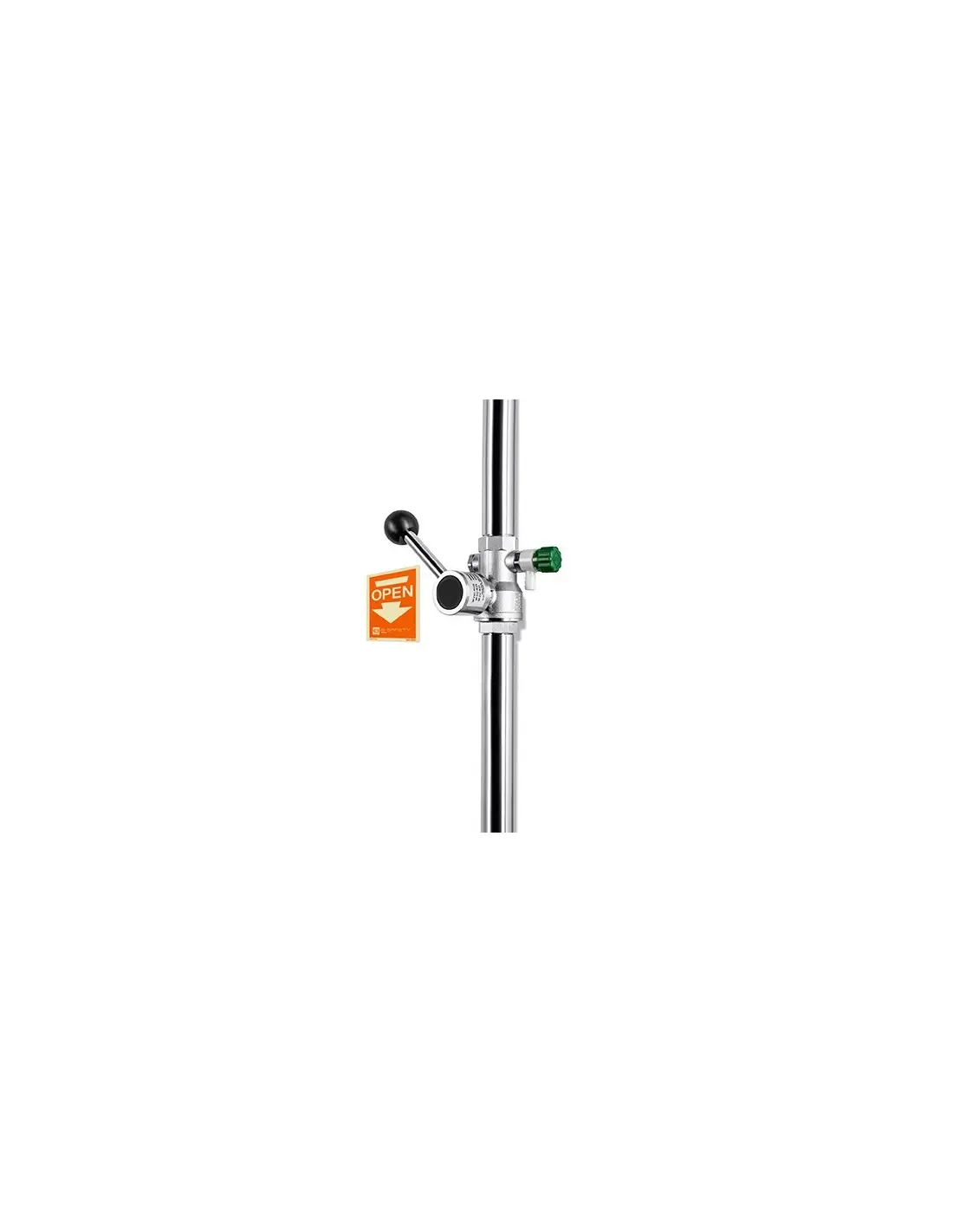

- information sign “OPEN” for confusion-free use in an emergency, orange, photoluminescent according to DIN 67510
- mounting height for lever according to the standards listed below: 0 to 1750 mm height above floor
- according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
- according to ANSI Z358.1-2014, EN 15154-1:2006 and EN 15154-5:2019
