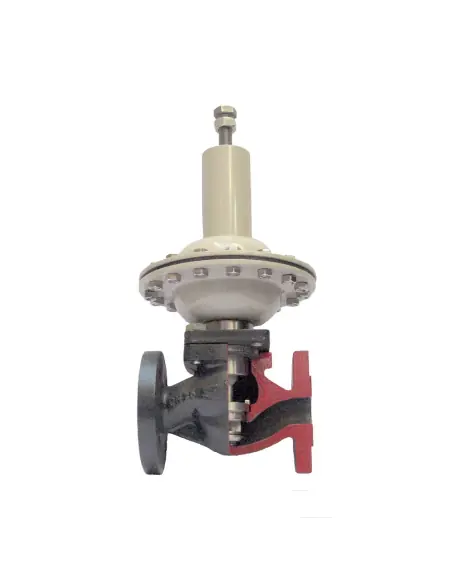

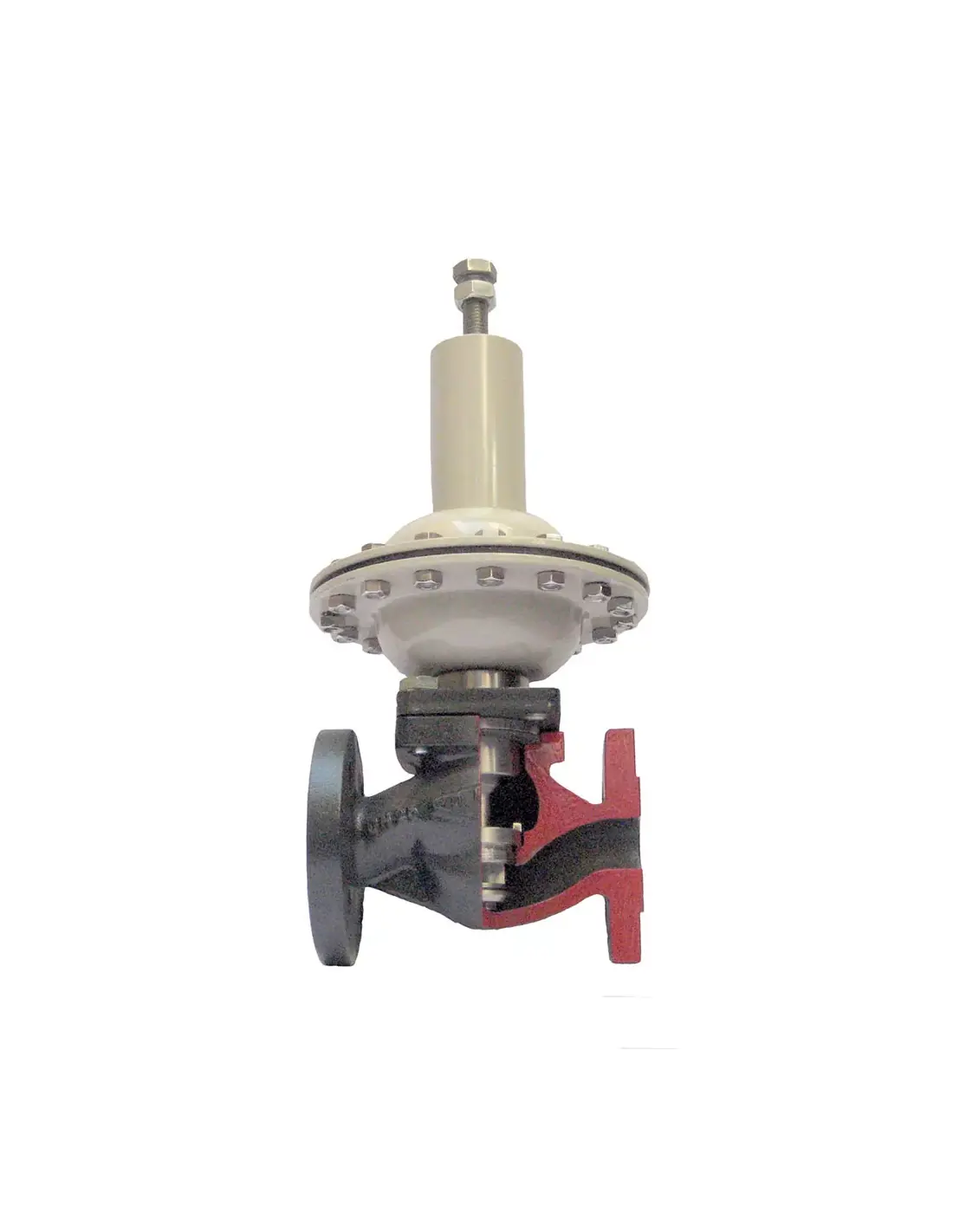

Pressure Reducing Valves type M2 | Valfonta

Unmatched Performance for Industrial Systems: Pressure Reducing Valves type M2 | Valfonta

Experience superior control and reliability with the Pressure Reducing Valves type M2 | Valfonta—an exceptional solution designed for industrial applications demanding precise pressure management. Engineered for maximum efficiency, the M2 valve ensures safe, dependable, and consistent pressure regulation throughout your system. Easy to install and maintain, it’s the ideal choice for businesses seeking to streamline operations, reduce energy costs, and protect critical equipment.

Key Features & Benefits of Pressure Reducing Valves type M2 | Valfonta

  • Reliable Pressure Control: Maintains stable output pressure even when input pressure fluctuates, preventing damage to machinery and piping.
  • Robust Construction: Built with high-quality materials that withstand high pressure and temperature, ensuring long-lasting performance in tough industrial environments.
  • Easy Adjustment: The user-friendly design allows for simple pressure setting, making it quick to optimize system performance without specialized tools.
  • Energy Efficiency: Minimizes unnecessary pressure in your system, helping reduce energy consumption and operating costs.
  • Protection for Equipment: Prevents overpressure scenarios that could harm downstream components, extending the life of costly machinery and piping.
  • Low Maintenance: Designed for minimal upkeep, reducing downtime and freeing up valuable resources for other tasks.
  • Compact & Versatile: The M2 valve’s streamlined form fits easily into new or existing setups, saving space without sacrificing performance.

Specially crafted for industrial use, the Pressure Reducing Valves type M2 | Valfonta brings you the confidence to run your systems smoothly, safely, and efficiently. Its advanced internal mechanism adapts instantly to changing pressure conditions, providing consistent flow and reliable operation every time. Choose the M2 to elevate performance, safeguard your investments, and make daily operations more predictable and cost-effective.

Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • BSP
  • Flanged
Material (Options)
  • EN-GJS-400-18-LT (Nodural Iron GGG40.3)
  • 1.0619
  • 1.4408
Pressure Rating (Options)
  • PN 25

Datasheet and documents

Description

Pressure reducing valve M2: main features

Sizes:DN15 a DN100 (Other consult)

Connection:DIN and ANSI Flanges, BSP – NPT threaded

Fluids:Liquids, neutral gases and steam

Body material:GGG40.3 / WCB / CF3M

Nominal pressure:Up to PN40 / CL300

Inlet pressure max.:40 barg

Range:0,02 – 16 barg

Kvs value: Up to115 m3/h

Certificates

2014/68/UE. - Pressure Equipment Directive Certificate 2014/68/EU. (PDF)

The list of equipment included in the scope of certification of the quality assurance system according to the requirements of module D1 of directive 2014/68 / EU is explained.

ATEX - ATEX certificate of custody of the technical file LOM 14 ATEX. (PDF)

For the equipment manufactured by Valfonta: pressure reducing valves, excess pressure valves, relief valves and pneumatic control valves.

ISO 9001:2015 - System quality certificate according to ISO 9001: 2015 standard (PDF)

Certificate issued by OCA for the design, sale and marketing of globe regulation valves for the control of industrial processes.
