Pressure reducing valves - RP 814 | Mankenberg

Discover Reliable Control with Pressure Reducing Valves - RP 814 | Mankenberg

Take control of your industrial processes with the Pressure Reducing Valves - RP 814 | Mankenberg, designed to deliver precision, safety, and efficiency. Built for demanding environments, this valve keeps your systems running smoothly by automatically lowering incoming pressure to a consistent, safe level.

Features and Benefits of Pressure Reducing Valves - RP 814 | Mankenberg

  • Consistent Output Pressure: Experience steady pressure, even with variable inlet conditions. This ensures your machinery and pipelines operate safely, reducing risks of damage or leaks.
  • Sturdy Stainless Steel Construction: The RP 814 is crafted from robust stainless steel, making it exceptionally durable for heavy-duty industrial use. It resists corrosion, promising excellent longevity.
  • Maintenance-Friendly Design: Thanks to its simple yet innovative structure, regular maintenance is fast and hassle-free. Fewer breakdowns mean less downtime for your system.
  • Flexible Installation: The compact dimensions allow for easy integration into existing pipework, no need for complicated adjustments or costly fittings.
  • High Precision Control: Fine-tuned engineering allows for accurate control of outlet pressure, which helps protect sensitive equipment and ensures consistent production quality.
  • Automatic Operation: The valve operates without external energy, relying on pressure differences alone. This self-acting feature saves energy and keeps costs low.
  • Wide Range of Applications: Suitable for gases, steam, and liquids, the RP 814 adapts seamlessly to various industrial tasks, making it a smart choice for diverse operations.

The Pressure Reducing Valves - RP 814 | Mankenberg brings advanced pressure regulation to your fingertips. Its reliable performance helps maintain the perfect balance in your process systems, so you can focus on efficiency and safety. With its smart engineering and rugged design, it stands out as a trustworthy solution for any industrial setting that demands steady, controlled pressure without complicated controls.

Upgrade your operations with the Pressure Reducing Valves - RP 814 | Mankenberg — a blend of durability, simplicity, and superior control for modern industry.

Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • Stainless Steel
Pressure Rating (Options)
  • PN 16
  • PN 25

Datasheet and documents

Description

Product features

Standard

  • Body made of steel
  • Pilot valve made of stainless steel
  • Throttle block with integrated strainer and throttle valves made of stainless steel
  • Internal piping made of stainless steel
  • Metallic seal

Options

  • Nominal pressure level up to PN 100
  • Hard-faced valve cone and seat
  • Completely made of stailess steel
  • Special materials such as Duplex, Superduplex, Hastelloy® or titanium
  • ANSI or JIS flanges

Technical data

DN
100 - 800
PN
16 - 25
p1
up to 25 bar
p2
1 - 20 bar
Kvs
60 - 2100 m3/h
T
130 °C

Advantages

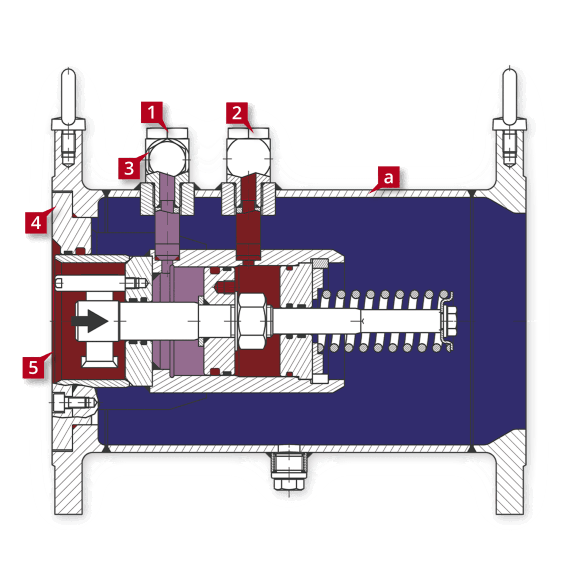

rp814-schnitt
1

Precise control through pilot valve

Very high control accuracy without external energy

2

Opening and closing velocities can be set via throttles

Optimal control behaviour

3

Replaceable pilot control

Flexible application

4

Compact design

Minimum space required, easy transport

5

Up to PN 100

Usable for high pressures

Options

a

Available in special materials

Also suitable for extreme requirements

Inlet Pressure

Outlet Pressure

Control Pressure
