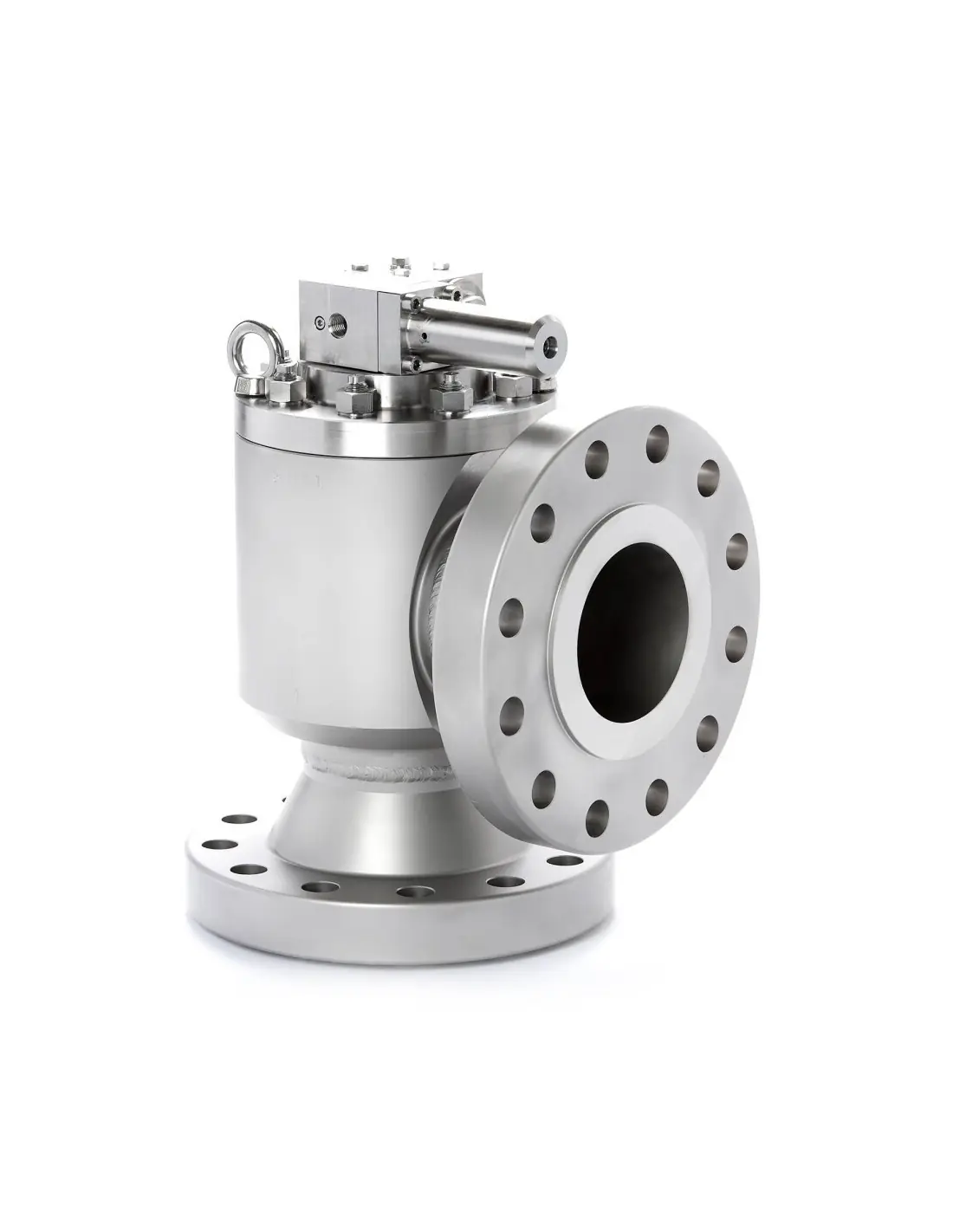

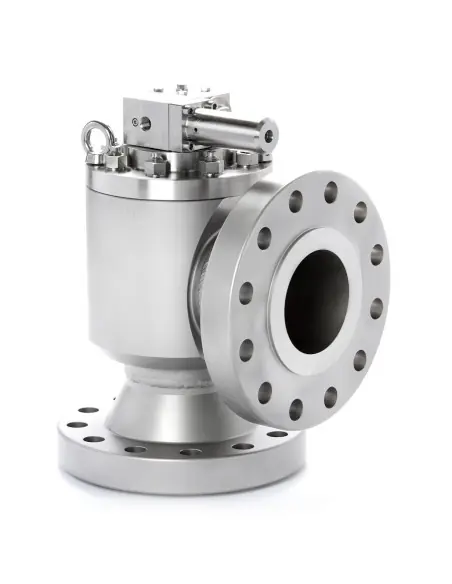

Pressure Reducing Valves - RP 810 Eck | Mankenberg: Reliable Performance for Industrial Needs

Discover the efficiency and reliability of the Pressure Reducing Valves - RP 810 Eck | Mankenberg. Designed for demanding industrial environments, this valve delivers outstanding control of system pressure, ensuring smooth operation and safety for a wide range of applications.

Features and Benefits of Pressure Reducing Valves - RP 810 Eck | Mankenberg

  • Consistent Pressure Control: The RP 810 Eck maintains steady downstream pressure, even when the inlet pressure fluctuates. This means your equipment is protected from pressure surges, reducing the risk of damage and prolonging the life of your system.
  • Durable Construction: Built from high-quality materials, this valve stands up to harsh industrial conditions, delivering long-lasting performance with minimal maintenance required.
  • Easy Installation: The compact corner-design (Eck) makes the RP 810 simple to fit into existing pipework, saving you time and effort during setup.
  • Adjustable Settings: Easily fine-tune the output pressure to match your specific needs, providing flexibility for different applications across your operation.
  • Safe and Reliable: The RP 810 Eck is engineered for consistent operation, helping to keep your system safe and efficient, all day, every day.
  • Low Maintenance: Its smart design reduces the need for frequent servicing, letting you focus on your work, not your equipment.

The Pressure Reducing Valves - RP 810 Eck | Mankenberg are ideal for use in water, steam, or gas systems. They handle varying pressure loads, ensuring a smooth, uninterrupted process. With its robust engineering, you can trust this valve to deliver stable performance whether you are managing a single line or a complex network.

Choose the RP 810 Eck for a hassle-free solution to pressure control. It keeps your operations running smoothly, protects your infrastructure, and provides a reliable foundation for your industrial applications. When every second counts, count on Mankenberg.

Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • Steel
Pressure Rating (Options)
  • PN 16
  • PN 160

Datasheet and documents

Description

Product features

Standard

  • Body made of Steel
  • Soft or metallic seal
  • Pilot valve made of stainless steel
  • Throttle block with integrated strainer and throttle valves completely made of stainless steel
  • Internal piping made of stainless steel

Options

  • Damping for gas applications
  • Hard-faced valve cone and seat
  • Various O-ring and seal materials suitable for your medium
  • Special materials such as Duplex, Superduplex, Hastelloy® or titanium, others on request
  • ANSI or JIS flanges

Technical data

DN
40 - 150
PN
16 - 160
p1
up to 160 bar
p2
1 - 40 bar
Kvs
20 - 250 m³/h
T
130 °C

Advantages

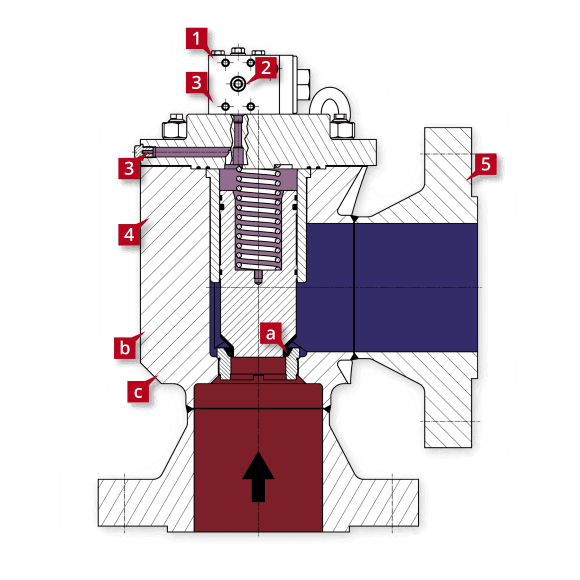

rp820eck-schnitt
1

Precise control through pilot valve

Very high control accuracy without external energy

2

Opening and closing velocities can be set via throttles

Optimal control behaviour

3

Replaceable pilot control

Flexible application

4

Compact design

Minimum space required, easy transport

5

Various connection alternatives: DIN- , ANSI- or JIS flanges, welding ends ...

Variable face-to-face length, no adapters or fitting pieces required

Options

a

Hard-faced valve cone and seat

Suitable for high pressure drops

b

Special materials available: for ex. sea water-resistant stainless steels, titanium, Super Duplex, Hastelloy®

c

Delivery in accordance with NACE

Inlet Pressure

Outlet Pressure

Control Pressure
