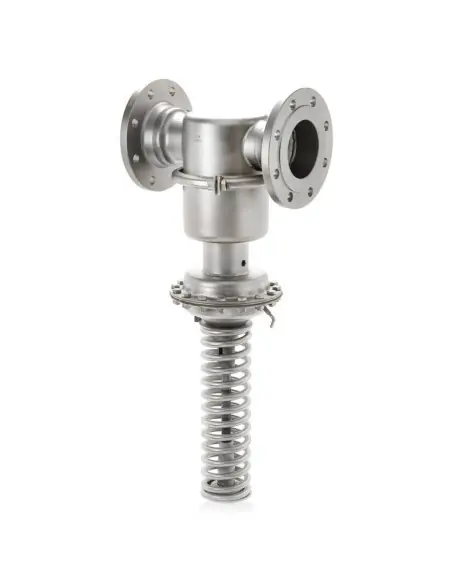

Pressure reducing valves - DM 664 | Mankenberg: Reliable Pressure Control Made Simple

The Pressure reducing valves - DM 664 | Mankenberg are expertly designed to deliver smooth and stable pressure control in industrial environments. These valves help maintain your system’s safety and efficiency by automatically reducing high inlet pressure to a consistent, lower outlet level. With Mankenberg’s trusted engineering, this valve stands out as a robust solution for demanding applications.

Features & Benefits of the Pressure reducing valves - DM 664 | Mankenberg

  • Consistent Performance: The DM 664 maintains a steady downstream pressure, ensuring your equipment operates smoothly and safely at all times.
  • Durable Construction: Built with corrosion-resistant materials, this valve is designed to withstand tough industrial conditions, maximizing its lifespan and minimizing maintenance.
  • Easy Installation: Its compact and straightforward design means you can fit the valve into your system with minimal effort, saving valuable installation time.
  • Automated Regulation: The DM 664 automatically adjusts to fluctuations in input pressure, so you don’t have to worry about manual adjustments or sudden pressure spikes.
  • Low Maintenance: Thanks to its high-quality materials and smart design, the valve demands little maintenance, reducing operational downtime.
  • Versatile Use: Suitable for a wide range of industrial fluids and gases, it seamlessly fits into diverse process applications.

With the Pressure reducing valves - DM 664 | Mankenberg, you benefit from seamless pressure management that protects your equipment and ensures consistent process quality. Its advanced internal mechanism keeps pressure at an optimal level, preventing damage to downstream devices and improving overall system reliability.

Choose the DM 664 when you need a trustworthy and hassle-free pressure reducing valve. Its blend of sturdy build, intuitive operation, and dependable performance makes it the ideal choice for modern industrial applications where precision and safety matter most.

Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • Stainless Steel
Pressure Rating (Options)
  • PN 16

Datasheet and documents

Description

Product features

Standard

  • Completely made of stainless steel (1.4404 / 316L)
  • Excellent surface quality
  • Corrosion-resistant, very lightweight and compact
  • Balanced cone, soft sealed
  • Sense line connection
  • Non-rising adjusting screw
  • Quick-release body clamp ring

Options

  • Pressure gauge connection
  • Leakage line connection
  • Elastomers as per FDA and USP Class VI
  • Aseptic or ANSI flanges, welding ends

Technical data

DN
50 - 100
PN
16
p1
up to 16 bar
p2
0.02 - 8 bar
Kvs
32 - 100 m3/h
T
130 °C

Advantages

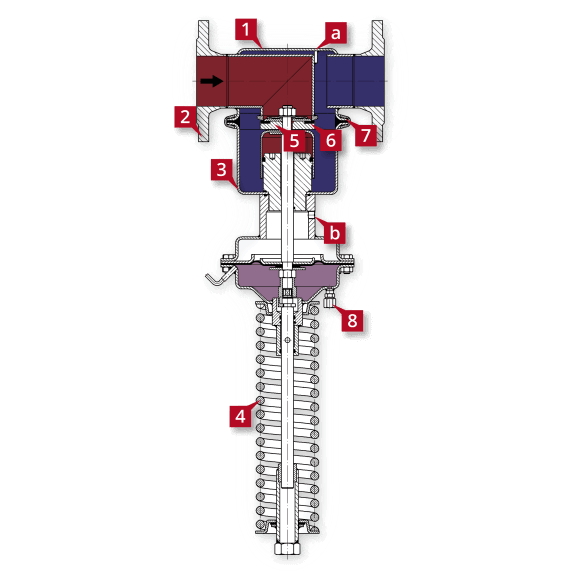

dm664-schnitt
1

Stainless steel (1.4404 / 316L), deep-drawn, corrosion-resistant, light and compact

Long operational lifespan, manageable installation, minimum space required

2

Various connection alternatives: DIN- , ANSI- or JIS flanges, welding ends ...

No adapters or fitting pieces required

3

Excellent standard surface quality

Easy to clean

4

Many control modules available

Most precise control, also millibar ranges

5

Balanced cone

Downstream pressure control independent from the upstream pressure

6

Cone with soft gasket

Also usable for aggressive gases

7

Mankenberg clamp system

Easy maintenance

8

Sense line connection

High control accuracy

Options

a

Pressure gauge connection

b

Leakage line connection

Suitable for flammable and hazardous media

Inlet Pressure

Outlet Pressure

Control Pressure
