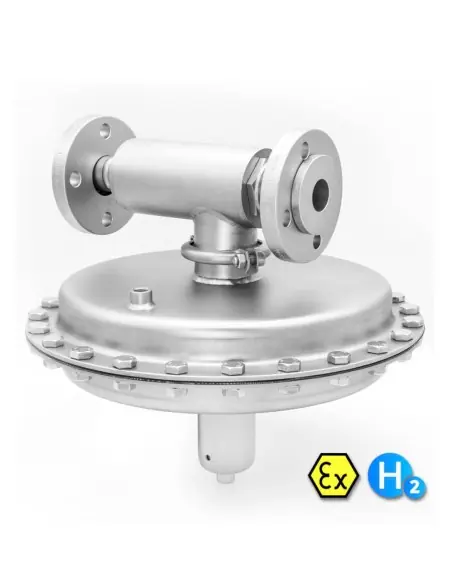

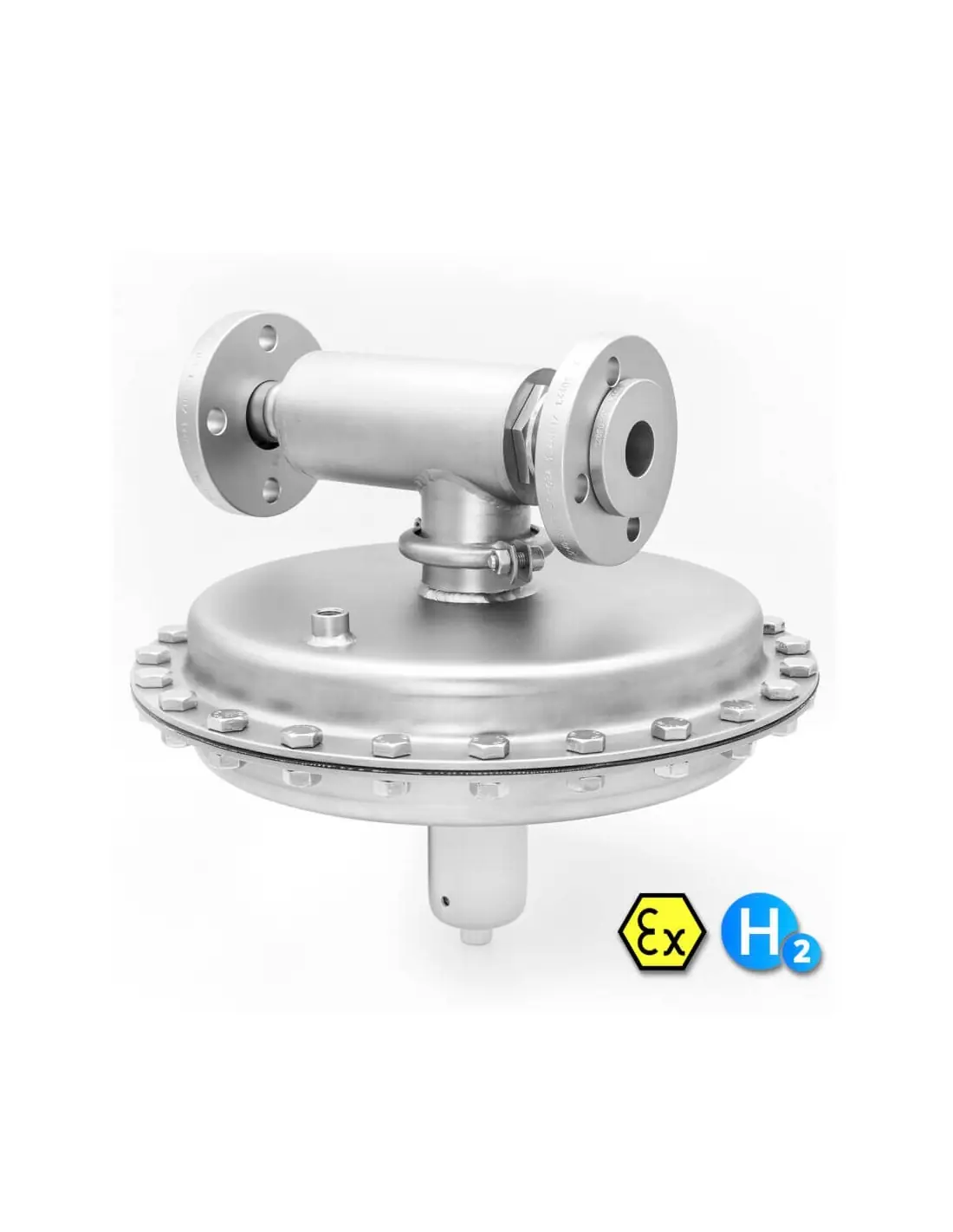

Pressure reducing valves - DM 755 | Mankenberg

Pressure reducing valves - DM 755 | Mankenberg: Precision Control for Industrial Use

Experience unmatched reliability and efficiency with the Pressure reducing valves - DM 755 | Mankenberg. Designed for industrial applications, this valve sets new standards in pressure control, ensuring your systems run smoothly, safely, and cost-effectively. Crafted to handle demanding environments, this pressure reducing valve is your dependable partner for steady, accurate regulation.

Features & Benefits: Why Choose Pressure reducing valves - DM 755 | Mankenberg?

  • Consistent Pressure Regulation: The DM 755 guarantees stable downstream pressure, no matter how much the inlet pressure or flow fluctuates. This protects equipment and maintains product quality.
  • Robust & Durable: Made with high-grade stainless steel, the DM 755 resists corrosion and wear, even under tough conditions. It’s built to last, minimizing maintenance and downtime.
  • Easy Installation: Its user-friendly design allows for fast setup in your existing pipeline without any complex adjustments. Installation is straightforward in any industrial setting.
  • Low Maintenance: Self-acting mechanism means fewer moving parts and less wear. This reduces the need for frequent servicing, saving you both time and effort.
  • Efficient Operation: By automatically adjusting to pressure changes, the DM 755 optimizes system performance and saves energy, reducing overall operating costs.

The Pressure reducing valves - DM 755 | Mankenberg uses a reliable diaphragm and spring mechanism to maintain your desired output pressure. This self-regulating design doesn’t require external power or complex controls, making it perfect for continuous use in a wide range of industries.

Safety is at the heart of the DM 755. Its precision-engineered components deliver accurate pressure control, preventing dangerous surges that can damage sensitive machinery. With its compact form and easy-to-access components, inspection and maintenance are hassle-free.

Investing in the Pressure reducing valves - DM 755 | Mankenberg means securing the long-term efficiency of your industrial systems. Ensure smooth operations, protect your equipment, and enjoy worry-free pressure management, all in one robust solution.

Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • BSP
  • NPT
  • Flanged
Material (Options)
  • 1.4404
  • 1.4571
Pressure Rating (Options)
  • PN 16

Datasheet and documents

Description

Product features

Standard

  • Housing and media-exposed internal parts made of 316Ti and 316L stainless steel
  • DIN or ANSI flanges, threaded sockets G or NPT
  • Non-rising adjusting screw
  • Quick-release body clamp ring

Options

  • Pressure gauge connection
  • Clean gas version with special connections
  • For toxic or hazardous media: sealed bonnet complete with leakage line connection (incl. sealed adjusting screw). Must be installed with a leakage line capable of draining leaking medium safely and without pressure
  • Different materials for diaphragm and seals, suitable for your medium
  • Special connections: Aseptic or JIS flanges, welding spigots; other connections on request
  • Special versions on request

Technical data

DN
15 - 50
G
1/2 - 2
PN
16
p1
up to 16 bar
p2
0.001 - 0.7 bar
Kvs
0.25 - 4.8 m³/h
T
-35 up to 130 °C


Advantages

dm755inet
1

EASY-ADAPT – Connection adapter

2

Large control surface

Exact control and tight valve closure also at low pressures

3

Sense line connection

High control accuracy

4

Excellent standard surface quality

Easy to clean

5

Stainless steel (1.4404 / 316L), deep-drawn, corrosion-resistant, lightweight and compact

Short delivery times, long operational lifespan, minimum space required

Options

a

Pressure gauge connection

b

Leakage line connection and sealed adjusting screw

Suitable for flammable and hazardous media

Inlet Pressure

Outlet Pressure

Control Pressure
