Pressure reducing valve Type DM 152V | Mankenberg

Experience Reliable Pressure Control with the Pressure Reducing Valve Type DM 152V | Mankenberg

Achieve stable, safe, and efficient pressure management in your industrial systems with the Pressure Reducing Valve Type DM 152V | Mankenberg. Engineered for high reliability, this valve automatically keeps downstream pressure consistently within your set range, regardless of inlet pressure fluctuations or flow changes. Designed with robust materials and precision technology, it is the smart solution for industries seeking superior performance and trouble-free operation.

Key Features & Benefits of the Pressure Reducing Valve Type DM 152V | Mankenberg

  • Automatic Pressure Regulation: No need for constant adjustments. This valve senses changes instantly and adapts, delivering steady output pressure even if the input pressure varies.
  • Durable Stainless Steel Build: Crafted for longevity, its corrosion-resistant design ensures minimal maintenance and a long operational life, even in demanding industrial conditions.
  • Hygienic and Safe: Perfect for applications where cleanliness matters, the smooth internal surfaces help avoid contamination, making it ideal for process industries.
  • Energy Efficient: By maintaining optimal pressure levels, this valve helps reduce unnecessary energy consumption and operational costs.
  • Simple Installation: The compact, user-friendly design makes setup straightforward and reduces downtime during replacement or routine checks.
  • Reliable Seal: The advanced sealing mechanism prevents leaks, offering peace of mind and enhanced safety for your team.
  • Versatile Usage: Suitable for gases, steam, and liquids, the Pressure Reducing Valve Type DM 152V | Mankenberg adapts to a wide range of industrial requirements.

Whether managing sensitive machinery or safeguarding complex processes, this valve provides dependable pressure control every time. It eliminates the risk of over-pressurization which can damage equipment and disrupt production, ensuring smooth, uninterrupted operations.

Choose the Pressure Reducing Valve Type DM 152V | Mankenberg to protect your systems, boost efficiency, and enjoy the benefits of advanced pressure management. It’s the essential component to keep your industrial processes running smoothly and safely.

Standard (Options)
  • DIN
Connection (Options)
  • Clamp
Material (Options)
  • Stainless Steel
Pressure Rating (Options)
  • PN 6
  • PN 16

Datasheet and documents

Description

Product features

Standard

  • Completely made of stainless steel
  • Materials FDA and USP Class VI compliant
  • Valve body without dead space
  • Lift blocking for guaranteed open position of the cone (CIP/SIP)
  • Leakage monitoring of the diaphragm through a control bore
  • Surface finish medium-wetted Ra ≤ 0.76 µm and outside Ra ≤ 3.2 µm
  • Clamping flanges DIN 32676
  • Body with clamps
  • Non rising adjusting screw

Options

  • Body made of stainless steel 1.4435
  • Surface finish medium-wetted Ra ≤ 0.38 µm and outside Ra ≤ 0.76 µm (electropolished)
  • Special connections: aseptic flange, screwed conduit or welding ends, other connections on request

Technical data

DN
15 - 25; ½“ - 1"
PN
16 / 6 - 16
p1
up to 15 bar
p2
0.3 - 8 bar
Kvs
2 - 5.8 m³/h
T
130 °C / 180 °C

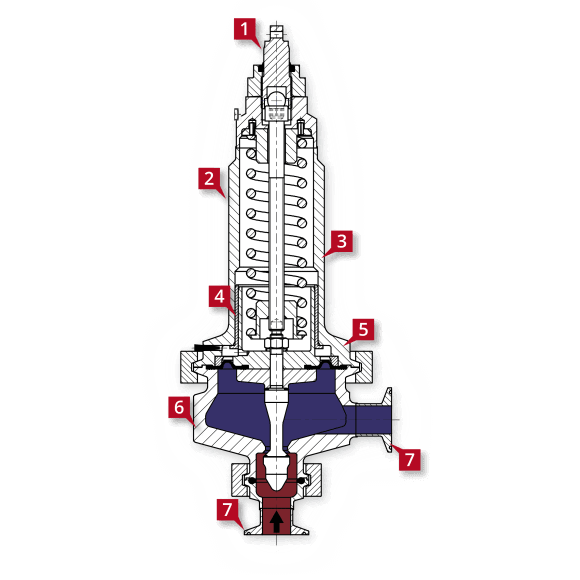

Advantages

dm152v_schnitt
1

Lifting of stem possible

Mechanical cleaning cycles (change of media)

2

Body with excellent surface quality, electropolished

Easy to clean

3

Stainless steel (1.4404, optionally 1.4435), corrosion-resistant

Long operational lifespan, low delta-ferrite content possible

4

External stem guide

Less dead pockets, no O-ring abrasion, higher control accuracy

5

Vacuum-tight

Suitable for operation in the vacuum range

6

Angle valve, with low dead space

Self-draining, also usable for highly viscous media

7

Various connections: clamp connections, dairy pipe unions, DIN-, ANSI- or aseptic flanges, welding ends ...

No adapters or fitting pieces required

Options

a

Internal surface quality up to Ra ≤ 0.38 μm, mechanically polished, electropolished

Compliance to highest hygiene standards

Inlet Pressure

Outlet Pressure
