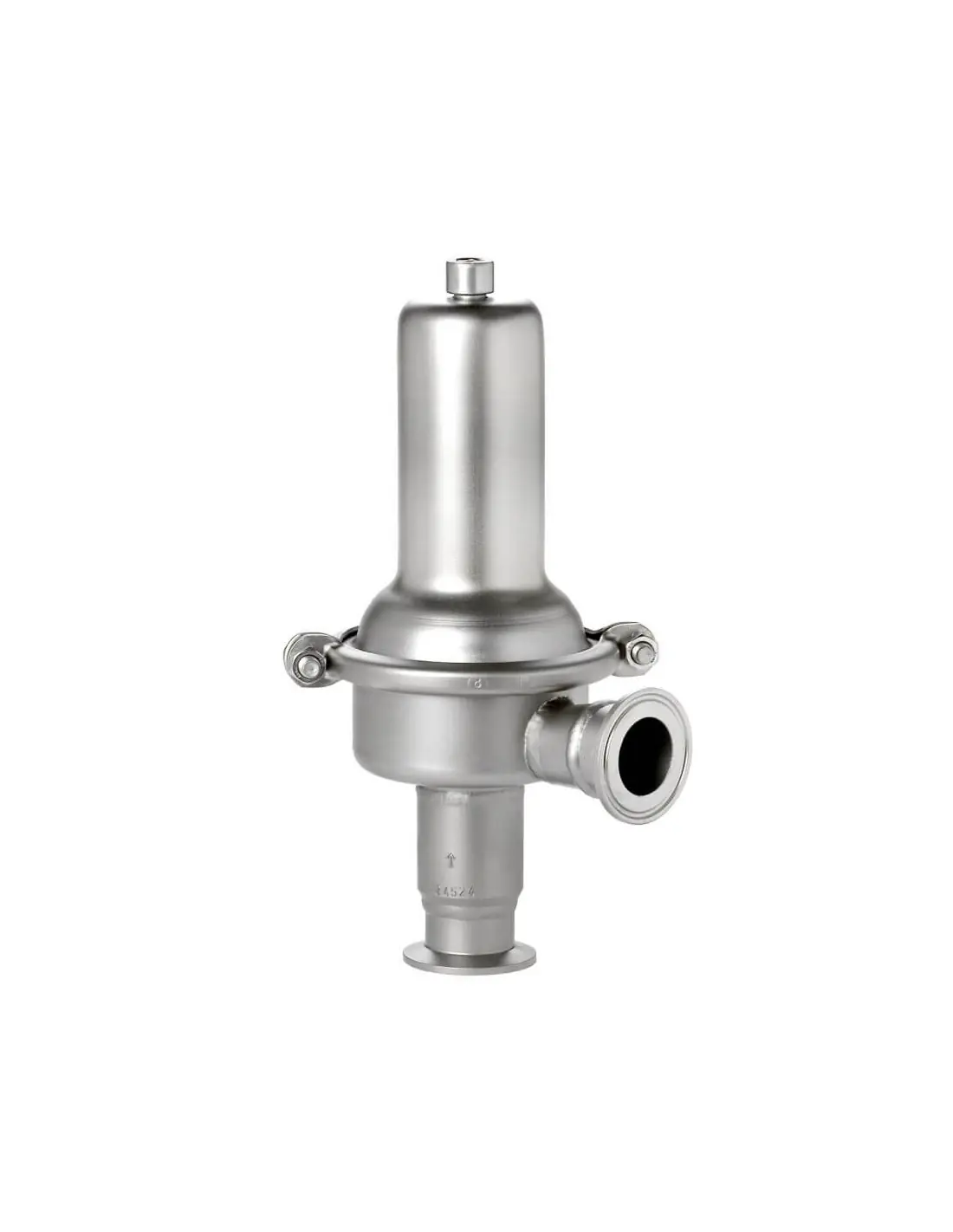

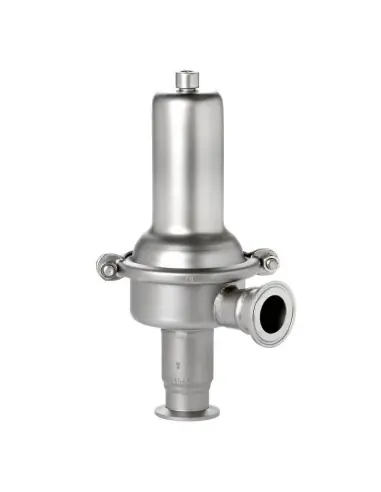

Pressure reducing valve Type DM 152 | Mankenberg

Discover Reliable Pressure Control: Pressure Reducing Valve Type DM 152 | Mankenberg

Experience precision and reliability in your industrial processes with the Pressure Reducing Valve Type DM 152 | Mankenberg. This robust solution is designed to safeguard your equipment and streamline operations by continuously maintaining optimal pressure, no matter how demanding your application may be.

Features & Benefits: Why Choose Pressure Reducing Valve Type DM 152 | Mankenberg?

  • Consistent Pressure Regulation: Delivers stable outlet pressure to protect sensitive instruments and systems, even under fluctuating inlet pressures.
  • Durable Construction: Built from top-quality stainless steel, the DM 152 stands up to corrosive fluids, abrasive materials, and harsh environments—making it ideal for tough industrial use.
  • Maintenance-Free Design: With its self-acting and balanced mechanism, the valve requires minimal upkeep, significantly reducing maintenance costs and downtime.
  • Easy Installation: Compact and straightforward, it fits seamlessly into existing pipework, saving time and effort during set-up.
  • Wide Range of Applications: Perfect for a variety of industries such as chemical, pharmaceutical, food processing, and water treatment.
  • Energy Efficient: Prevents pressure surges and minimizes wasted energy, contributing to lower operational costs.

The Pressure Reducing Valve Type DM 152 | Mankenberg uses a clever self-acting system: once set, it works automatically to keep the pressure right where you need it. There’s no need for complex controls or constant manual adjustments. This simplicity means even users with minimal technical experience can rely on the valve for effective protection and performance.

Its precision engineering ensures smooth, reliable operation over a long lifespan. With its corrosion-resistant construction, the valve withstands chemicals and aggressive media, promising lasting value even in demanding settings. In every application, it ensures your downstream systems are safe from pressure spikes, helping to prevent leaks, equipment failure, and costly repairs.

Choose the Pressure Reducing Valve Type DM 152 | Mankenberg for an industrial-grade solution that delivers quality, efficiency, and peace of mind.

Standard (Options)
  • DIN
Connection (Options)
  • Clamp
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 2.5
  • PN 10

Datasheet and documents

Description

Product features

Standard

  • Single-seat, angled valve, with low dead space
  • Completely made of stainless steel (1.4404 / 316L)
  • Excellent surface quality
  • Corrosion-resistant, lightweight and compact
  • Clamping flanges DIN 32676
  • Non rising adjusting screw
  • Quick-release body clamp ring

Options

  • Elastomers as per FDA and USP Class VI
  • Leakageline connection and sealed adjusting screw
  • Electropolished or lapped blasted
  • surface roughness: Ra ≤ 0.25 / 0.4 / 0.8 μm
  • Electro-pneumatic control
  • Aseptic, ANSI or DIN flanges, NPT, welding ends

Technical data

DN
15 - 50
PN
2.5 - 10
p1
up to 8 bar
p2
0.3 - 5 bar
Kvs
2 - 7 m3/h
T
130 / 180 °C

Advantages

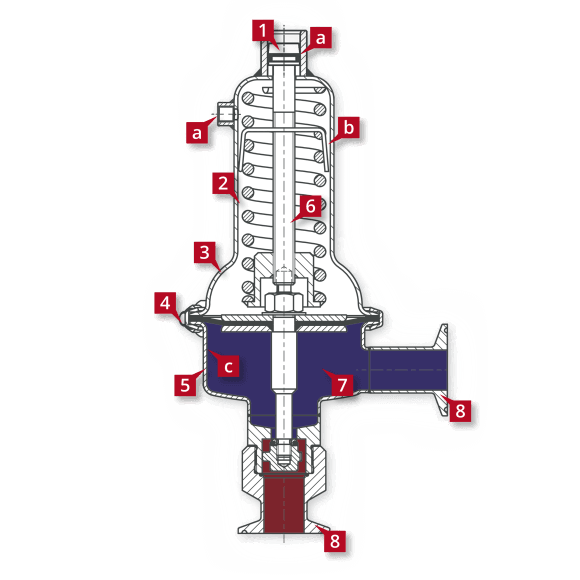

dm152-schnitt
1

EASY-CHECK – Non-rising adjusting screw

Function visible from outside, simple and precise setpoint adjustment, unchanged overall height

2

Minimum mass

Low thermal losses during CIP/SIP applications, shorter cleaning and sterilisation times

3

Body with excellent surface quality, electropolished

Easy to clean

4

Mankenberg clamp system

Easy maintenance

5

Stainless steel (1.4404, optionally 1.4435), deep-drawn, corrosion-resistant, lightweight and compact

Long operational lifespan, easy installation, minimum space required, low delta-ferrite content possible

6

Lifting of spindle possible through superposition of compressed gas

Automatic cleaning cycles (change of media)

7

Angle valve, with low dead space

Self-draining, also usable for highly viscous media

8

Various connections: clamp connections, dairy pipe unions, DIN-, ANSI- or aseptic flanges, welding ends ...

No adapters or fitting pieces required

Options

a

Leakage line connection and sealed adjusting screw

Suitable for flammable and hazardous media

b

Electro-pneumatic control

c

Internal surface quality up to Ra ≤ 0.25 μm, mechanically polished, electropolished

Compliance to highest quality standards

Inlet Pressure

Outlet Pressure
