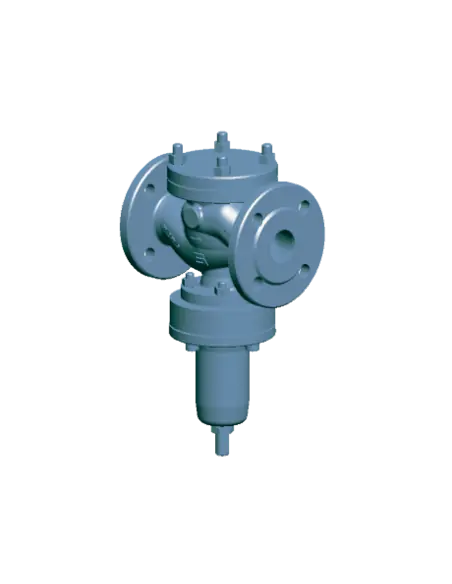

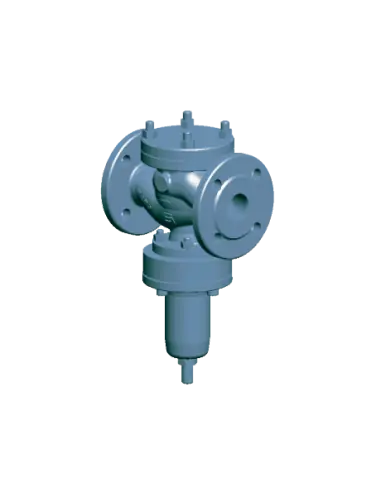

Pressure reducing valve - Direct Acting for liquids & gases - REAH20 | Miyawaki

Name: Pressure reducing valve - Direct Acting for liquids & gases - REAH20 | Miyawaki
Brand: Miyawaki
SKU: Pressure reducing valve - Direct Acting for liquids & gases - REAH20 | Miyawaki

Take Control with the Pressure Reducing Valve - Direct Acting for Liquids & Gases - REAH20 | Miyawaki

Experience reliable pressure control made simple with the Pressure reducing valve - Direct Acting for liquids & gases - REAH20 | Miyawaki. Designed for industrial use, this advanced valve ensures safe and consistent pressure regulation for a wide range of liquids and gases, helping you protect your equipment and improve workplace efficiency.

Features & Benefits of Pressure Reducing Valve - Direct Acting for Liquids & Gases - REAH20 | Miyawaki

Precise Pressure Adjustment: Achieve accurate, stable pressure settings even when input pressure fluctuates. This helps you avoid costly system damage or production delays.
Versatile Compatibility: Specially engineered for both liquids and gases, this valve is flexible and ready to perform across various industrial applications.
Direct Acting Design: Benefit from faster response times and consistent performance. The direct-acting design reacts instantly to changes, preventing pressure spikes and ensuring smooth operation.
Robust Construction: Built from premium materials, this valve withstands high demands, lasts longer, and offers reliable operation under tough industrial conditions.
Low Maintenance: Simplified design means fewer moving parts and less maintenance. Enjoy hassle-free operation and save time and costs on regular servicing.
Easy Installation: Compact and straightforward to install, the REAH20 fits neatly into your pipeline without the need for specialized tools or lengthy setup.
Enhanced Safety: By keeping pressure within safe limits, this valve helps protect your staff and equipment from unexpected surges and dangerous bursts.
Energy Efficient: Optimize your process and reduce energy waste by maintaining just the right pressure for your application.

The Pressure reducing valve - Direct Acting for liquids & gases - REAH20 | Miyawaki is your reliable solution to pressure management. Whether you need to control water, air, or other industrial fluids, this valve brings peace of mind by ensuring the pressure stays at the level you set. Upgrade your system with a product that combines advanced engineering with everyday practicality.

Standard (Options)

Connection (Options)

Flanged

Material (Options)

1.0619
Cast Steel

Pressure Rating (Options)

PN 40
PN 63
PN 100

Description

Features

Self-acting pressure reducing valves for liquids and gases

The model REA20 is a direct acting pressure reducinfgvalve designed for compressible media, such as air and various gasses and for incompressible media such as water, oil and others. The valve is self acting and does not require external energy.

Superb durability

Highly durable and carefully selected components, a 360° free rotating, conical plug and the lack of a sensitive diaphragm ensure outstanding lifetime of this valve.

Diaphram free design

The valve operates with an O-ring sealing and a piston design. Due to this design, no daiphragm and no external sensing line is required.

Wide range of pressure reduction

Due to careffully selected springs an outstanding reduction ratio of 25:1 is achieved.

Operating features of direct acting pressure reducing valves

Pressure changes on the downstream side are detected in the detection chamber, and the degree of opening of the valve is directly adjusted to keep the pressure on the downstream side at set pressure.

Options available

- additional pressure gauges

- tailored connections for special applications

- softsealing for leakage class VI

Typical applications

Ideally installed in any fluid system or technical gases, such as lube oil lines, pre-heater units, natural gas lines, pressurized air lines, LNG or gasoline tank systems. Fits perfectly for other technical gases such as Atzetylene, Ammonia, Carbondioxide.

Dimensions/Weight

Size (DN)	Dimension (mm)				Kvs ValueKvs ValueKvs Value	Weight (kg)
	L		H	h
	PN40	PN63-100	H	h
15	130	210	289	82	1,8	11,0
20	150	230		66	3,2	11,0
25	160	230		66	5,0	12,0
32	180	260		81	7,9	14,5
40	200	260		83	13,0	16,0
50	230	300	416	100	20,0	32,5
65	290	340	445	113	34,0	38,0
80	310	380	553	140	51,0	53,0
100	350	430	582	154	80,0	71,0
125	400		715	210	130,0	120,0
150	480		720	235	180,0	135,0
200	600		950	285	320,0	280,0

Specifications

Body Material

Cast steel

GP240GH

(GS-C25, 1.0619)

Body design conditions

	PN40	PN63	PN100
Max. design pressure (MPa) PMA	1,6	6,3	10,0
Max. design temperature (℃) TMA	450	400	400
Max. operating pressure (MPa) PMO	4,0	6,3	10,0
Max. operating temperature (℃) TMO	400	400	400

Pressure - Temperature rating

PN	Temperature℃
	-10･･･+50	100	150	200	250	300	350	400
	Pressure MPa
PN40	4,0	3,7	3,5	3,1	2,8	2,6	2,4	2,3
PN63	6,3	5,9	5,5	4,9	4,5	4,1	3,8	3,6
PN100	10,0	9,3	8,7	7,8	7,1	6,4	6,0	5,8

Secondary pressure ranges

Secondary pressure range	DN15-DN40	DN50	DN65	DN80	DN100	DN125-DN200
MPa	Spring number per size
0,05-0,1	9	28	27	38	37	On request
0,1-0,16	8	27	26	37	36
0,16-0,25	7	26	25	36	35
0,25-0,4	6	25	24	35	34
0,4-0,63	5	24	23	34	33
0,63-1,0	4	23	22	33	32
1,0-1,6	3	22	21	32	32

Secondary pressure ranges higher than 1,6 MPa and lower than 0,05 MPa on request available.
