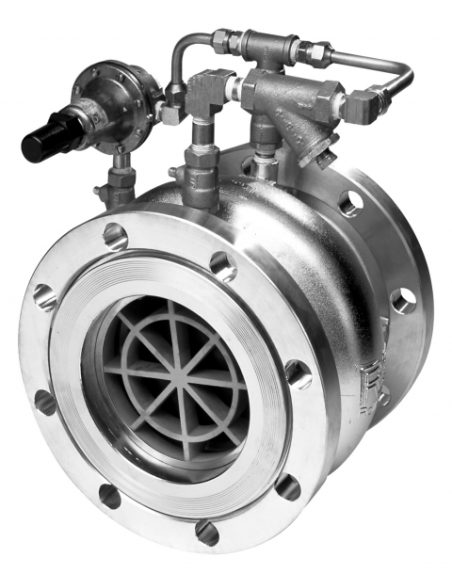

Cla-Val 790-01

Hydraulic pressure reducing valve for water distribution networks. Downstream pressure is controlled via a pilot circuit, modulating the main valve opening in response to demand fluctuations.

Operation

The pressure reducing pilot compares downstream pressure to the setpoint. If downstream pressure rises above setpoint, the valve throttles flow. If pressure drops, the valve opens incrementally to restore setpoint.

Applications

  • pressure zoning in municipal water systems
  • downstream equipment protection
  • industrial water circuit supply
  • pressure stabilization under variable demand
  • leakage reduction via lower night-time pressure

Selection Criteria

  • peak and minimum flow rates
  • inlet and required outlet pressure
  • allowable pressure drop
  • pipeline flow velocity
  • cavitation risk assessment
  • elastomer and trim compatibility with process fluid

Difference from Sustaining Valve

The 790-01 regulates outlet (downstream) pressure. A sustaining valve maintains upstream pressure and is used for upstream zone protection or back pressure control.

FAQ

Is electrical power required?
No. Regulation is fully hydraulic.

Suitable media?
Water and compatible fluids per construction materials.

Standard (Options)
  • ANSI
Connection (Options)
  • Flanged
  • Flanged (Wafer)
Material (Options)
  • ASTM A182 316L
Pressure Rating (Options)
  • 125 lbs
  • 150 lbs
  • 250 lbs
  • 300 lbs

Datasheet and documents

Description

Cla-Val Model 790-01 automatically controls downstream pressure, from no flow to full open flow, without regard to changes in inlet pressure. Outlet pressure control is smooth and precise since the friction and hysteresis of the valve and pilot are negligible. Because the valve will not chatter or slam under low flow conditions, it is not necessary to parallel Cla-Val Model 790-01 with a second smaller size control valve to obtain accurate pressure control at low flow rates. In any size, Cla-Val Model 790-01 will control pressure right down to shutoff.

The main valve consists of only two parts: a stainless steel body and an elastomeric liner or control element.
