Datasheet and documents

Logic element | OR-Gate

Type number	Port size	Air flow	Operating pressure	Function
VA 341	Ø 4	280 l/min	1...10 bar	OR-gate

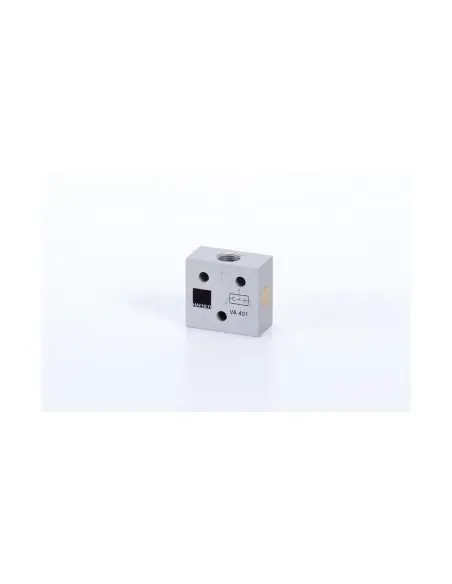

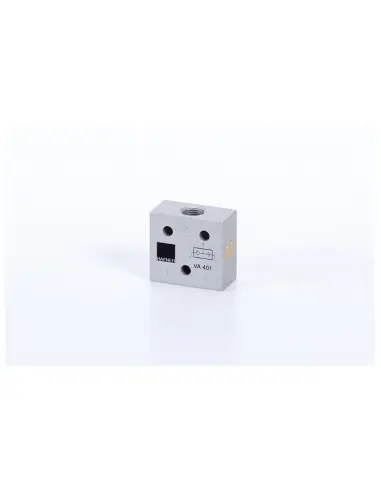

VA 401	G 1/8"	280 l/min	1...10 bar	OR-gate

Logic element | AND-Gate

Type number	Port size	Air flow	Operating pressure	Function
ES 341	Ø 4	280 l/min	1...10 bar	AND-gate
ES 401	G 1/8"	280 l/min	1...10 bar	AND-gate

Logic element | OR / AND-Gate | for sub-base mounting

Type number	Port size	Air flow	Operating pressure	Function
VA 304	Manifold plate \| orifice 3	280 l/min	1...10 bar	OR-gate
ES 304	Manifold plate \| orifice 3	280 l/min	1...10 bar	AND-gate

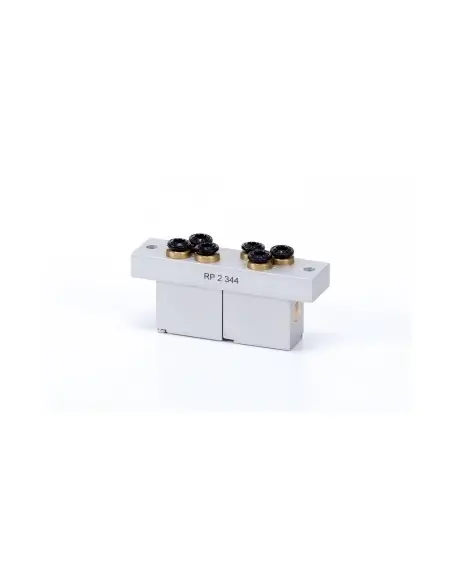

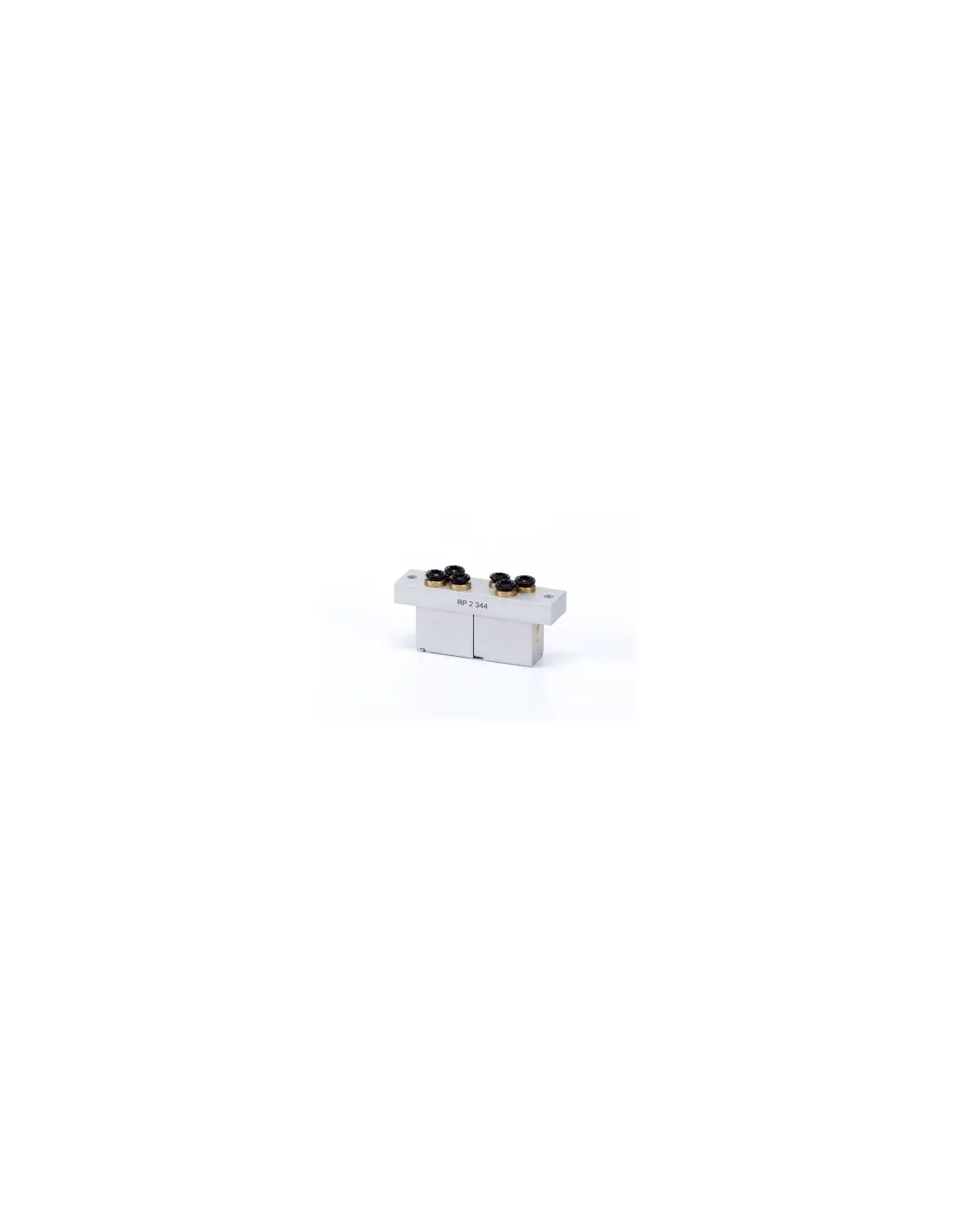

Sub-base for VA _ _4 / ES _ _4

Type number	Port size	Valve
RP 2 344	Ø 4	VA 304 \| ES 304

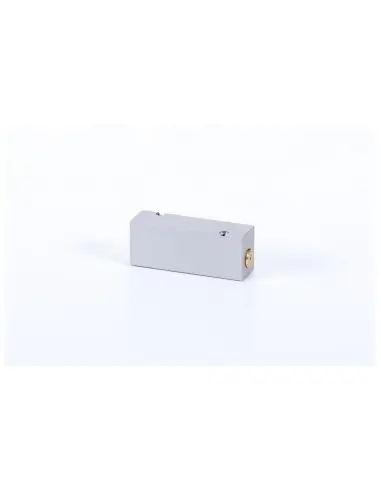

Pilot actuated valve | for sub-base mounting

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Size of actuation port	Function
P 310 304	Manifold plate \| orifice 3	280 l/min	2...10 bar	Same as operating pressure	plate	Air-spring return \| NC
P 311 304	Manifold plate \| orifice 3	280 l/min	2...10 bar	3...10 bar	Grundplatte	Mech.-spring return \| NC/NO
P 320 304	Manifold plate \| orifice 3	280 l/min	2...10 bar	2,5...10 bar	Grundplatte	Double pilot
P 322 304	Manifold plate \| orifice 3	280 l/min	2...10 bar	2,5...10 bar	Grundplatte	Double pilot \| dominating at 12

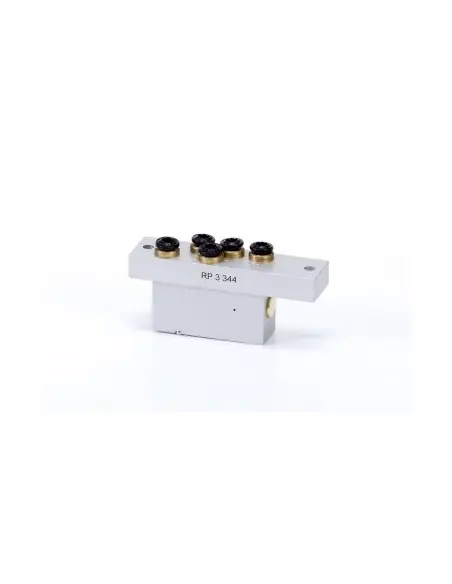

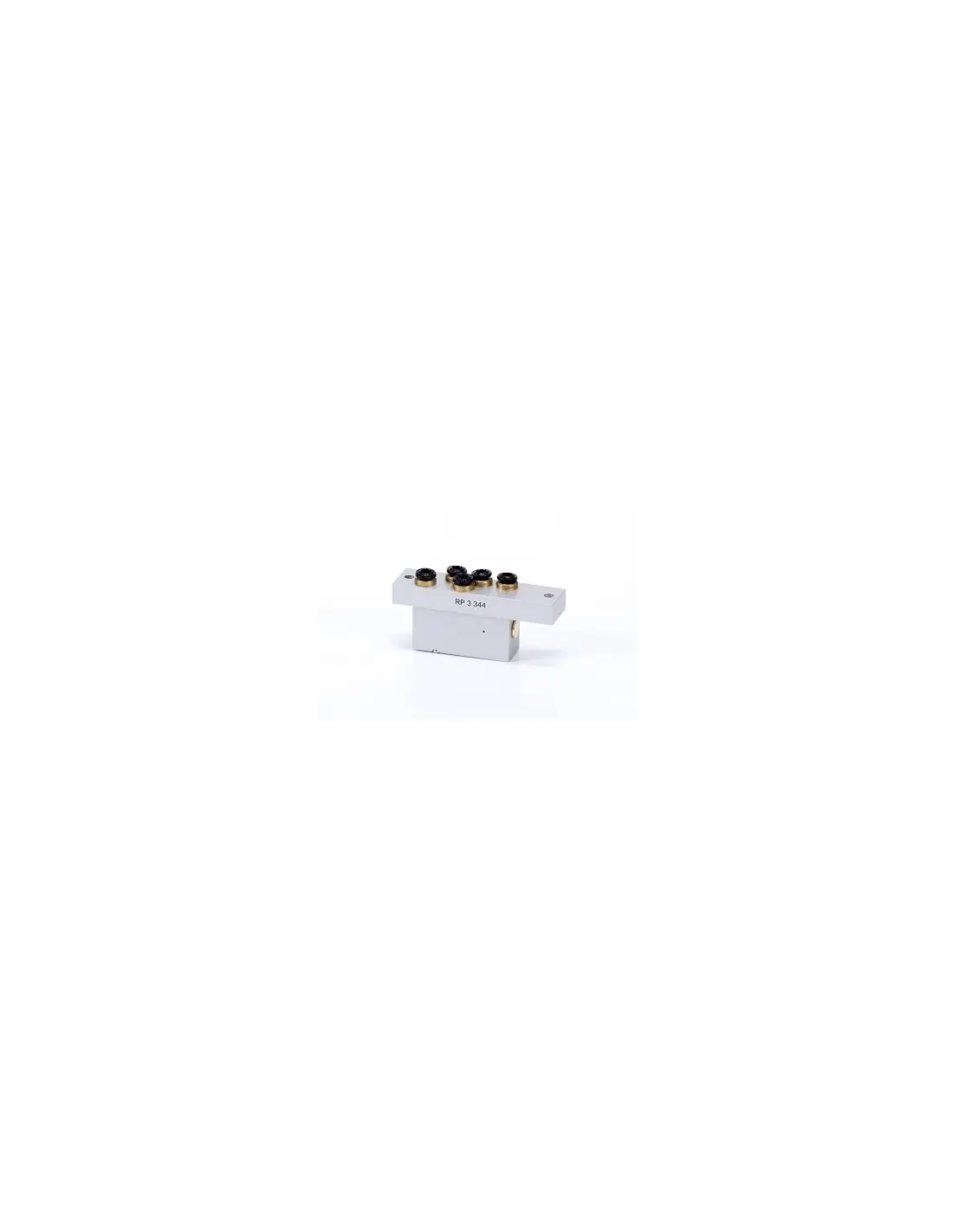

Sub-base for 3_ _ 304

Type number	Port size	Valve
RP 3 344	Ø 4	P 310 304 \| P 311 304 \| P 320 304 \| P 322 304

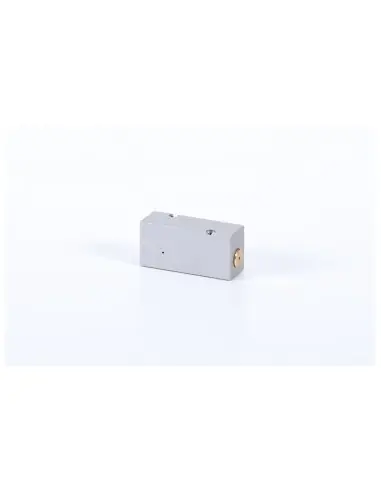

Pilot actuated valve | for sub-base mounting

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Size of actuation port	Function
P 510 304	Manifold plate \| orifice 3	280 l/min	2...10 bar	Same as operating pressure	Grundplatte	Air-spring return
P 511 304	Manifold plate \| orifice 3	280 l/min	2...10 bar	3...10 bar	Grundplatte	Mech.-spring return \| NC/NO
P 520 304	Manifold plate \| orifice 3	280 l/min	2...10 bar	2,5...10 bar	Grundplatte	Double pilot
P 522 304	Manifold plate \| orifice 3	280 l/min	2...10 bar	2,5...10 bar	Grundplatte	Double pilot \| dominating at 14

Sub-base for 3_ _ 304

Type number	Port size	Valve
RP 3 344	Ø 4	P 310 304 \| P 311 304 \| P 320 304 \| P 322 304

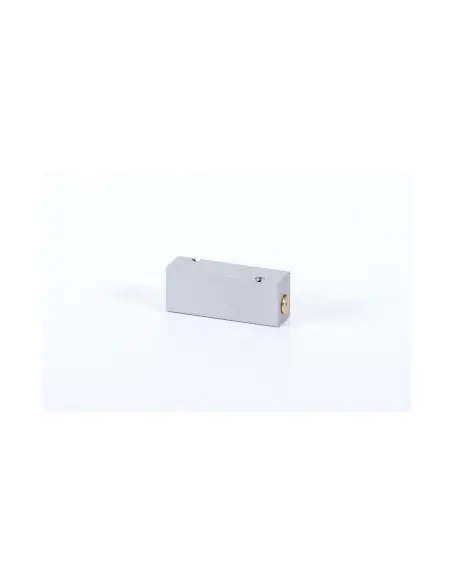

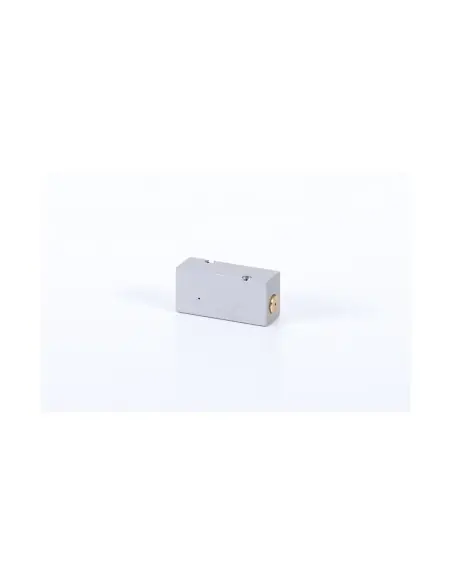

Pilot actuated valve | for sub-base mounting

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Size of actuation port	Function
P 510 304	Manifold plate \| orifice 3	280 l/min	2...10 bar	Same as operating pressure	Grundplatte	Air-spring return
P 511 304	Manifold plate \| orifice 3	280 l/min	2...10 bar	3...10 bar	Grundplatte	Mech.-spring return \| NC/NO
P 520 304	Manifold plate \| orifice 3	280 l/min	2...10 bar	2,5...10 bar	Grundplatte	Double pilot
P 522 304	Manifold plate \| orifice 3	280 l/min	2...10 bar	2,5...10 bar	Grundplatte	Double pilot \| dominating at 14

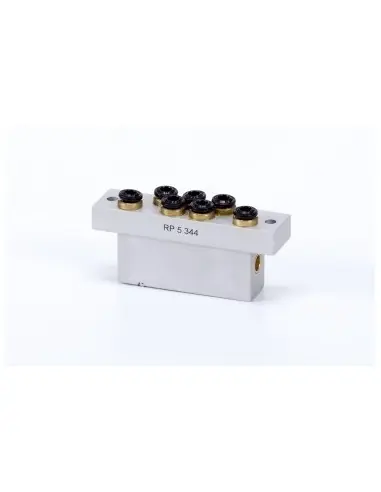

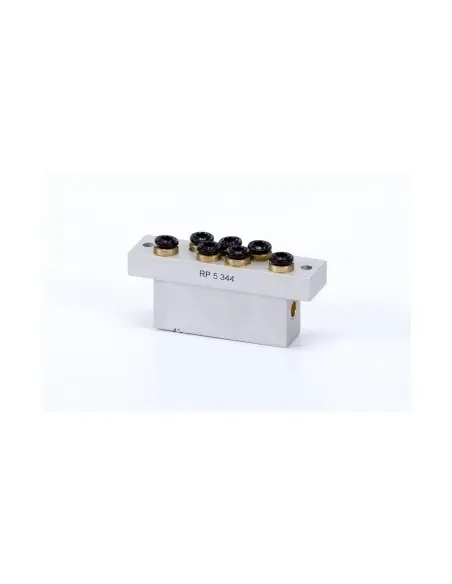

Sub-base for P 5_ _ 304

Type number	Port size	Valve
RP 5 344	Ø 4	P 510 304 \| P 511 304 \| P 520 304 \| P 522 304
