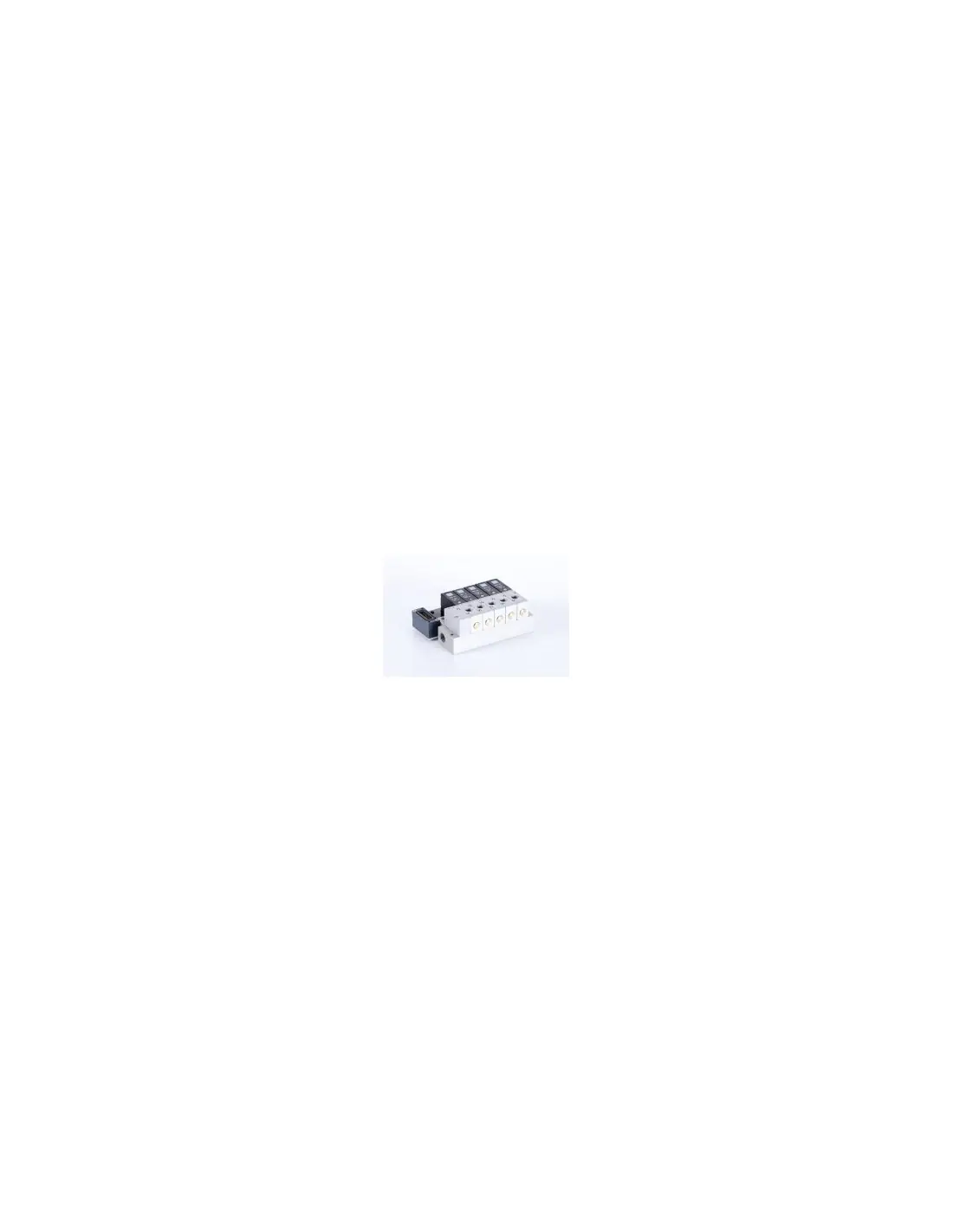

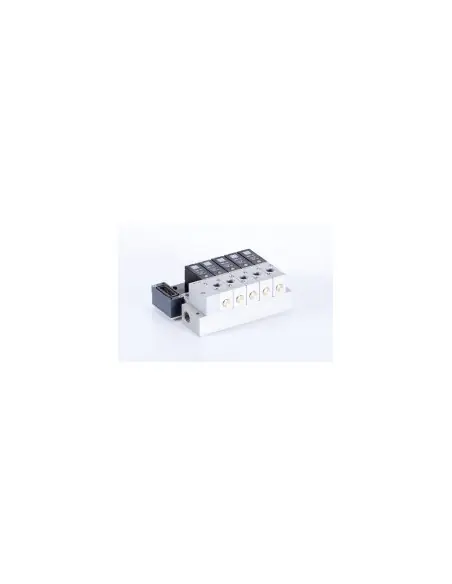

Valve Terminals - Series 22 mm for 3-way valves | Hafner

Experience Precision and Reliability: Valve Terminals - Series 22 mm for 3-way valves | Hafner

Unlock a new level of efficiency in your industrial processes with the Valve Terminals - Series 22 mm for 3-way valves | Hafner. Engineered for optimal performance, this compact solution is designed to deliver precise control and unwavering reliability in automated environments. Whether you're upgrading existing systems or setting up a new facility, this valve terminal series brings unmatched convenience and value to your operations.

Features & Benefits of Valve Terminals - Series 22 mm for 3-way valves | Hafner

  • Space-Saving Design
    The 22 mm compact form factor means installation is straightforward, even where space is tight. Optimize your workspace without sacrificing functionality.
  • Effortless Integration
    Designed for industrial environments, these valve terminals easily connect with standard control systems. Streamline set-up and reduce downtime with simple, quick installation.
  • Reliable 3-Way Valve Functionality
    The powerful 3-way valve system offers versatile control for a variety of pneumatic applications. Manage air flow and switching tasks efficiently, boosting overall productivity.
  • Rugged Durability
    Produced with high-quality materials, these valve terminals withstand demanding industrial use. Count on long-lasting performance even in the most challenging conditions.
  • Energy-Efficient Operation
    Smartly designed to lower energy consumption, helping you cut costs over time. Get powerful results with less waste and fewer maintenance requirements.

With the Valve Terminals - Series 22 mm for 3-way valves | Hafner, you gain direct and simple command over your compressed air systems. Enjoy accurate actuation and seamless operation, making maintenance and troubleshooting straightforward. The intuitive design means even users with limited technical experience can handle installation and operation, eliminating the usual learning curve. Build a more productive and cost-effective workflow with this reliable solution at the heart of your system.

Datasheet and documents

Description

Solenoid valve | monostable | air spring return | with manual override | for valve terminal mounting | port 2 in the valve

Type numberPort sizeAir flowOperating pressureFunktionPower consumption
MK 310 703 TG 1/4"1250 l/min2...10 barSingle solenoid | NC1,8 W / 3 VA
MOK 310 703 TG 1/4"1250 l/min2...10 barSingle solenoid | NO1,8 W / 3 VA

Valve terminal | for valves MK 310 703 T, MOK 310 703 T

Type numberPort size | 1Port size | 2Port size | 3Number of stationsPositon of connector
TR22 302 703G 3/8"in the valveG 3/8"2 stationsConnector right
TR22 303 703G 3/8"in the valveG 3/8"3 stationsConnector right
TR22 304 703G 3/8"in the valveG 3/8"4 stationsConnector right
TR22 305 703G 3/8"in the valveG 3/8"5 stationsConnector right
TR22 306 703G 3/8"in the valveG 3/8"6 stationsConnector right
TR22 308 703G 3/8"in the valveG 3/8"8 stationsConnector right
TR22 310 703G 3/8"in the valveG 3/8"10 stationsConnector right
TR22 312 703G 3/8"in the valveG 3/8"12 stationsConnector right
TL22 302 703G 3/8"in the valveG 3/8"2 stationsConnector left
TL22 303 703G 3/8"in the valveG 3/8"3 stationsConnector left
TL22 304 703G 3/8"in the valveG 3/8"4 stationsConnector left
TL22 305 703G 3/8"in the valveG 3/8"5 stationsConnector left
TL22 306 703G 3/8"in the valveG 3/8"6 stationsConnector left
TL22 308 703G 3/8"in the valveG 3/8"8 stationsConnector left
TL22 310 703G 3/8"in the valveG 3/8"10 stationsConnector left
TL22 312 703G 3/8"in the valveG 3/8"12 stationsConnector left

BP 3 _ T Blindplatte für Ventilinseln
