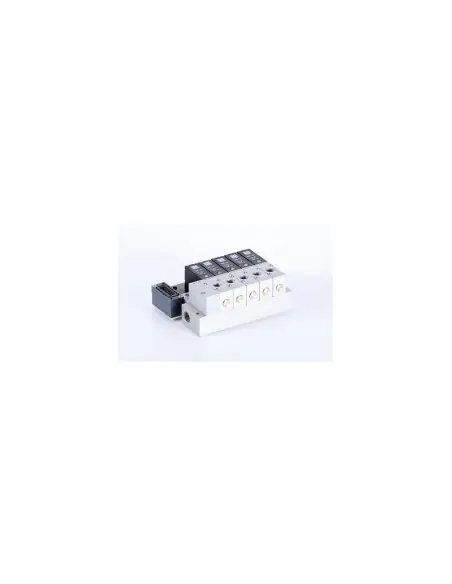

Reliability Meets Innovation: Valve Terminals - Series 16 mm for 5-way valves | Hafner

Unlock new levels of efficiency in your industrial automation with the Valve Terminals - Series 16 mm for 5-way valves | Hafner. Designed for precision, reliability, and simplicity, this valve terminal system is a smart choice for seamless pneumatic control in compact spaces. Perfect for a variety of industrial applications, Hafner’s solution brings together advanced engineering and user-friendly operation, making it an excellent addition to any automation setup.

Features & Benefits: Why Choose Valve Terminals - Series 16 mm for 5-way valves | Hafner

Compact Design: At only 16 mm width per valve, these terminals are ideal where space is limited, allowing you to integrate multiple valves in tight control cabinets or machinery.
Effortless Installation: Modular construction offers straightforward assembly and easy expansion—add or replace valves without hassle and keep downtime to a minimum.
Durable Build Quality: Manufactured with robust materials, these valve terminals ensure longevity and dependable operation, even under continuous industrial use.
Five-Way Versatility: Supports diverse pneumatic functions, providing flexible control tailored to your system’s needs, from simple movements to complex automation tasks.
Energy Efficient: Low power consumption helps reduce operational costs, making your system more environmentally and economically friendly.
Safe & Reliable: Engineered for secure performance, the system minimizes the risk of faults, supporting uninterrupted operation.

The Valve Terminals - Series 16 mm for 5-way valves | Hafner empower you to simplify your pneumatic layouts and streamline your maintenance routines. Their modular nature means you can adapt your system as your needs grow—simply snap in a new valve or swap out an old one without reworking your entire setup.

Enjoy the peace of mind that comes with Hafner’s trusted technology, designed for minimal maintenance and maximum uptime. Whether outfitting a new system or upgrading existing machinery, these valve terminals deliver consistent results, efficient airflow management, and a clean, organized control environment.

Take your industrial automation to the next level with the Valve Terminals - Series 16 mm for 5-way valves | Hafner—a dependable choice for precise pneumatic control in a compact, easy-to-use package.

Datasheet and documents

Description

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MD 510 303 T	M 5	280 l/min	3...10 bar	Single solenoid	1,8 W / 3 VA
MD 510 343 T	Ø 4	280 l/min	3...10 bar	Single solenoid	1,8 W / 3 VA
MD 510 403 T	G 1/8"	450 l/min	3...10 bar	Single solenoid	1,8 W / 3 VA
MD 510 463 T	Ø 6	450 l/min	3...10 bar	Single solenoid	1,8 W / 3 VA

Solenoid valve | bistable | with manual override | for valve terminal mounting | ports 2 and 4 in the valve

Type number	Port size	Air flow	Operating pressure	Function	Power consumption	Required positions
MD 520 303 T	M 5	280 l/min	3...10 bar	Double solenoid	1,8 W / 3 VA	Requires 2 stations
MD 520 343 T	Ø 4	280 l/min	3...10 bar	Double solenoid	1,8 W / 3 VA	Requires 2 stations
MD 520 403 T	G 1/8"	450 l/min	3...10 bar	Double solenoid	1,8 W / 3 VA	Requires 2 stations
MD 520 463 T	Ø 6	450 l/min	3...10 bar	Double solenoid	1,8 W / 3 VA	Requires 2 stations

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MD 510 304 T	In the terminal \| orifice 3	280 l/min	3...10 bar	Single solenoid	1,8 W / 3 VA
MD 510 404 T	In the terminal \| orifice 4	450 l/min	3...10 bar	Single solenoid	1,8 W / 3 VA

Solenoid valve | bistable | with manual override | for valve terminal mounting | all ports in the plate

Type number	Port size	Air flow	Operating pressure	Function	Power consumption	Required positions
MD 520 304 T	In the terminal \| orifice 3	280 l/min	3...10 bar	Double solenoid	1,8 W / 3 VA	Requires 2 stations
MD 520 404 T	In the terminal \| orifice 4	450 l/min	3...10 bar	Double solenoid	1,8 W / 3 VA	Requires 2 stations

Centre closed

Type number	Port size	Air flow	Operating pressure	Function	Power consumption	Required positions
MD 531 303 T	M 5	280 l/min	3...10 bar	5/3-way \| centre closed	1,8 W / 3 VA	Requires 2 stations
MD 531 343 T	Ø 4	280 l/min	3...10 bar	5/3-way \| centre closed	1,8 W / 3 VA	Requires 2 stations
MD 531 403 T	G 1/8"	450 l/min	3...10 bar	5/3-way \| centre closed	1,8 W / 3 VA	Requires 2 stations
MD 531 463 T	Ø 6	450 l/min	3...10 bar	5/3-way \| centre closed	1,8 W / 3 VA	Requires 2 stations

Centre exhausted

Type number	Port size	Air flow	Operating pressure	Function	Power consumption	Required positions
MD 533 303 T	M 5	280 l/min	3...10 bar	5/3-way \| centre pressurized	1,8 W / 3 VA	Requires 2 stations
MD 533 343 T	Ø 4	280 l/min	3...10 bar	5/3-way \| centre pressurized	1,8 W / 3 VA	Requires 2 stations
MD 533 403 T	G 1/8"	450 l/min	3...10 bar	5/3-way \| centre pressurized	1,8 W / 3 VA	Requires 2 stations
MD 533 463 T	Ø 6	450 l/min	3...10 bar	5/3-way \| centre pressurized	1,8 W / 3 VA	Requires 2 stations

Type number	Port size	Air flow	Operating pressure	Function	Power consumption	Required positions
MD 533 304 T	In the terminal \| orifice 3	280 l/min	3...10 bar	5/3-way \| centre pressurized	1,8 W / 3 VA	Requires 2 stations
MD 533 404 T	In the terminal \| orifice 4	450 l/min	3...10 bar	5/3-way \| centre pressurized	1,8 W / 3 VA	Requires 2 stations

Valve terminal | for valves MD 5_ _ 303 T, MD 5_ _ 343 T

Type number	Port size \| 1	Port size \| 2	Port size \| 3	Number of stations	Positon of connector
TR16 502 303	G 1/8"	in the valve	G 1/8"	2 stations	Connector right
TR16 503 303	G 1/8"	in the valve	G 1/8"	3 stations	Connector right
TR16 504 303	G 1/8"	in the valve	G 1/8"	4 stations	Connector right
TR16 505 303	G 1/8"	in the valve	G 1/8"	5 stations	Connector right
TR16 506 303	G 1/8"	in the valve	G 1/8"	6 stations	Connector right
TR16 508 303	G 1/8"	in the valve	G 1/8"	8 stations	Connector right
TR16 510 303	G 1/8"	in the valve	G 1/8"	10 stations	Connector right
TR16 512 303	G 1/8"	in the valve	G 1/8"	12 stations	Connector right
TR16 514 303	G 1/8"	in the valve	G 1/8"	14 stations	Connector right
TL16 502 303	G 1/8"	in the valve	G 1/8"	2 stations	Connector left
TL16 503 303	G 1/8"	in the valve	G 1/8"	3 stations	Connector left
TL16 504 303	G 1/8"	in the valve	G 1/8"	4 stations	Connector left
TL16 505 303	G 1/8"	in the valve	G 1/8"	5 stations	Connector left
TL16 506 303	G 1/8"	in the valve	G 1/8"	6 stations	Connector left
TL16 508 303	G 1/8"	in the valve	G 1/8"	8 stations	Connector left
TL16 510 303	G 1/8"	in the valve	G 1/8"	10 stations	Connector left
TL16 512 303	G 1/8"	in the valve	G 1/8"	12 stations	Connector left
TL16 514 303	G 1/8"	in the valve	G 1/8"	14 stations	Connector left

Valve terminal | for valves MD 5_ _ 403 T, MD 5_ _ 463 T

Type number	Port size \| 1	Port size \| 2	Port size \| 3	Number of stations	Positon of connector
TR16 502 403	G 1/4"	in the valve	G 1/4"	2 stations	Connector right
TR16 503 403	G 1/4"	in the valve	G 1/4"	3 stations	Connector right
TR16 504 403	G 1/4"	in the valve	G 1/4"	4 stations	Connector right
TR16 505 403	G 1/4"	in the valve	G 1/4"	5 stations	Connector right
TR16 506 403	G 1/4"	in the valve	G 1/4"	6 stations	Connector right
TR16 508 403	G 1/4"	in the valve	G 1/4"	8 stations	Connector right
TR16 510 403	G 1/4"	in the valve	G 1/4"	10 stations	Connector right
TR16 512 403	G 1/4"	in the valve	G 1/4"	12 stations	Connector right
TR16 514 403	G 1/4"	in the valve	G 1/4"	14 stations	Connector right
TL16 502 403	G 1/4"	in the valve	G 1/4"	2 stations	Connector left
TL16 503 403	G 1/4"	in the valve	G 1/4"	3 stations	Connector left
TL16 504 403	G 1/4"	in the valve	G 1/4"	4 stations	Connector left
TL16 505 403	G 1/4"	in the valve	G 1/4"	5 stations	Connector left
TL16 506 403	G 1/4"	in the valve	G 1/4"	6 stations	Connector left
TL16 508 403	G 1/4"	in the valve	G 1/4"	8 stations	Connector left
TL16 510 403	G 1/4"	in the valve	G 1/4"	10 stations	Connector left
TL16 512 403	G 1/4"	in the valve	G 1/4"	12 stations	Connector left
TL16 514 403	G 1/4"	in the valve	G 1/4"	14 stations	Connector left

Valve terminal | for valves MD 5_ _ 304 T

Type number	Port size \| 1	Port size \| 2	Port size \| 3	Number of stations	Positon of connector
TR16 502 344	G 1/8"	Ø 4	G 1/8"	2 stations	Connector right
TR16 503 344	G 1/8"	Ø 4	G 1/8"	3 stations	Connector right
TR16 504 344	G 1/8"	Ø 4	G 1/8"	4 stations	Connector right
TR16 505 344	G 1/8"	Ø 4	G 1/8"	5 stations	Connector right
TR16 506 344	G 1/8"	Ø 4	G 1/8"	6 stations	Connector right
TR16 508 344	G 1/8"	Ø 4	G 1/8"	8 stations	Connector right
TR16 510 344	G 1/8"	Ø 4	G 1/8"	10 stations	Connector right
TR16 512 344	G 1/8"	Ø 4	G 1/8"	12 stations	Connector right
TR16 514 344	G 1/8"	Ø 4	G 1/8"	14 stations	Connector right
TL16 502 344	G 1/8"	Ø 4	G 1/8"	2 stations	Connector left
TL16 503 344	G 1/8"	Ø 4	G 1/8"	3 stations	Connector left
TL16 504 344	G 1/8"	Ø 4	G 1/8"	4 stations	Connector left
TL16 505 344	G 1/8"	Ø 4	G 1/8"	5 stations	Connector left
TL16 506 344	G 1/8"	Ø 4	G 1/8"	6 stations	Connector left
TL16 508 344	G 1/8"	Ø 4	G 1/8"	8 stations	Connector left
TL16 510 344	G 1/8"	Ø 4	G 1/8"	10 stations	Connector left
TL16 512 344	G 1/8"	Ø 4	G 1/8"	12 stations	Connector left
TL16 514 344	G 1/8"	Ø 4	G 1/8"	14 stations	Connector left

Valve terminal | for valves MD 5_ _ 404 T

Type number	Port size \| 1	Port size \| 2	Port size \| 3	Number of stations	Positon of connector
TR16 502 464	G 1/4"	Ø 6	G 1/4"	2 stations	Connector right
TR16 503 464	G 1/4"	Ø 6	G 1/4"	3 stations	Connector right
TR16 504 464	G 1/4"	Ø 6	G 1/4"	4 stations	Connector right
TR16 505 464	G 1/4"	Ø 6	G 1/4"	5 stations	Connector right
TR16 506 464	G 1/4"	Ø 6	G 1/4"	6 stations	Connector right
TR16 508 464	G 1/4"	Ø 6	G 1/4"	8 stations	Connector right
TR16 510 464	G 1/4"	Ø 6	G 1/4"	10 stations	Connector right
TR16 512 464	G 1/4"	Ø 6	G 1/4"	12 stations	Connector right
TR16 514 464	G 1/4"	Ø 6	G 1/4"	14 stations	Connector right
TL16 502 464	G 1/4"	Ø 6	G 1/4"	2 stations	Connector left
TL16 503 464	G 1/4"	Ø 6	G 1/4"	3 stations	Connector left
TL16 504 464	G 1/4"	Ø 6	G 1/4"	4 stations	Connector left
TL16 505 464	G 1/4"	Ø 6	G 1/4"	5 stations	Connector left
TL16 506 464	G 1/4"	Ø 6	G 1/4"	6 stations	Connector left
TL16 508 464	G 1/4"	Ø 6	G 1/4"	8 stations	Connector left
TL16 510 464	G 1/4"	Ø 6	G 1/4"	10 stations	Connector left
TL16 512 464	G 1/4"	Ø 6	G 1/4"	12 stations	Connector left
TL16 514 464	G 1/4"	Ø 6	G 1/4"	14 stations	Connector left

Blanking plate to plug an unused position on a valve terminal

Type number	Valveterminals
BP 5 303 T	T_16 5_ _ 303
BP 5 403 T	T_16 5_ _ 403
BP 5 304 T	T_16 5_ _ 344
BP 5 404 T	T_16 5_ _ 464
BP 5 503 T	T_22 5_ _ 503
BP 5 703 T	T_22 5_ _ 703
BP 5 504 T	T_22 5_ _ 504
BP 5 704 T	T_22 5_ _ 704 \| T_22 5_ _ 784

ST40 Multipol | D-Sub connector| valve terminal
