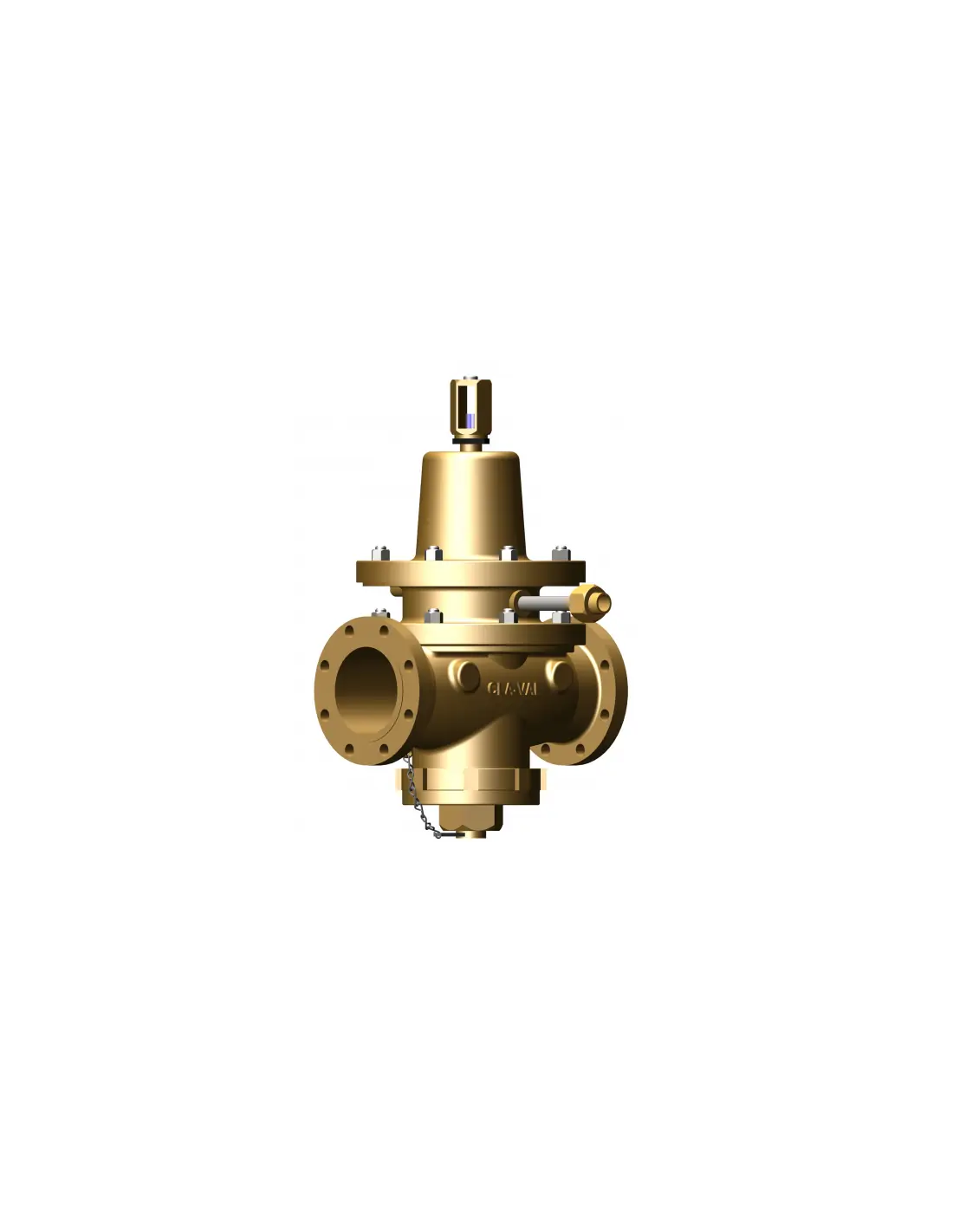

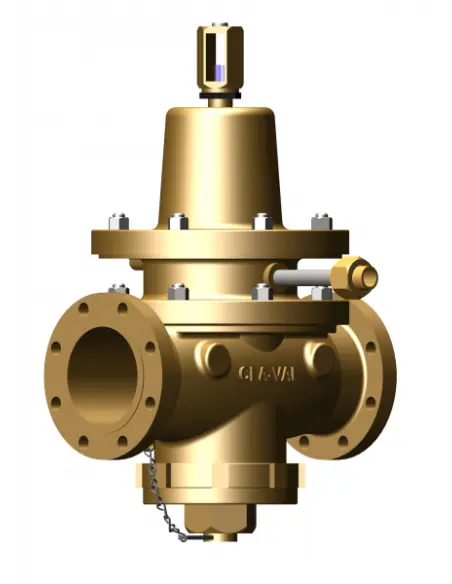

Cla-Val 100PM-4B Magazine Sprinkler Valve

The Cla-Val 100PM-4B is a hydraulically operated deluge valve designed for marine Magazine Sprinkling Systems. Product documentation specifies use in Dry and Wet Type Magazine Sprinkling Systems and compliance with MIL-V-17501F.

Operation

The 100PM-4B is a globe pattern, diaphragm-actuated, hydraulically operated remote control valve. It remains normally closed by spring force and internal hydraulic assistance. When a pressure signal is applied from the fire main to the control port, the valve opens to allow firewater flow to the protected space.

Technical Specifications

• Type: Magazine Sprinkler Valve
• Operation: normally closed, hydraulic actuation
• Body: globe pattern
• Actuation: diaphragm and pilot/control lines
• Position indication: visual indicator on cover
• Test port: integrated test port
• Reference drawing: 803-6397408, sizes 1 1/2"–8"

System Testing

The 100PM-4B includes a lower port, typically plugged, for connection of a test fitting to a fire hose. This arrangement enables flow testing to drain while maintaining the dry pipe to the magazine, without actuating the valve during testing.

Selection Considerations

• Separation of open-valve loop and closed-valve loop
• Fire main pressure and required sprinkler flow rate
• Connection class, typically MIL-F-20042 Class 250 for flanged versions
• Requirement for EP elastomers or MS limit switch
• Access for testing, drainage, and inspection

Maintenance

Inspection should include diaphragm, pilot lines, seat, internal ports, position indicator, and test port. For seawater service, flushing after testing and inspection for deposits affecting valve response is required.
