Level Electrodes

Level electrodes are used in steam boilers and hot-water installations for low- or high-level monitoring, alarm actuation, automatic burner shutdown, and boiler feedwater control. Selection should be based on boiler type, operating pressure and temperature, water conductivity or capacitive behavior, installation location on the boiler shell or in an external chamber, and electrical compatibility with the control panel or burner management system.

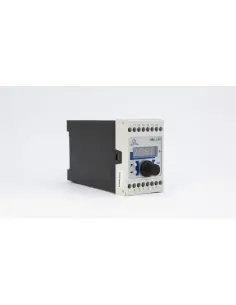

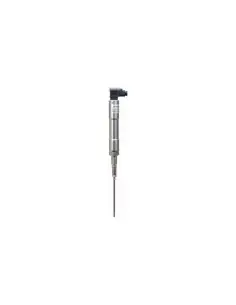

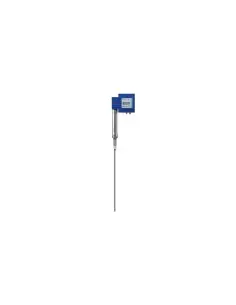

This category includes Gestra SPECTORconnect, SPECTORmodul, and SPECTORcompact level electrodes, together with SPECTORmodul electrode controllers for integrated level supervision in boiler plants. Limiter systems are applied as independent safety devices for protection against dry firing or impermissible water level. The SPECTORconnect and SPECTORmodul series are referenced with compliance to EN 12952 and EN 12953 and with SIL 3 safety level for boiler protection duties.

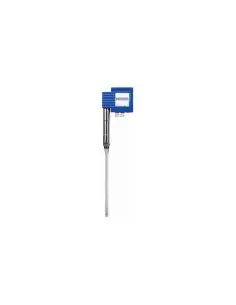

SPECTORcompact level controls use capacitive sensing, level transmitter functions, and 4–20 mA analog signals, with relay outputs and modulating control capability for pneumatic control valves. Typical use includes continuous level control, opening or closing of the feedwater valve, and supervision of predefined minimum or maximum limits according to the boiler control philosophy and shutdown logic.

During engineering review, the electrode length, insulation, grounding, water conductivity, electrical connection, periodic function testing, and isolation provisions for maintenance should be checked. In safety-related applications, the electrode, controller, and field wiring must be evaluated as one protection loop rather than as separate components.
