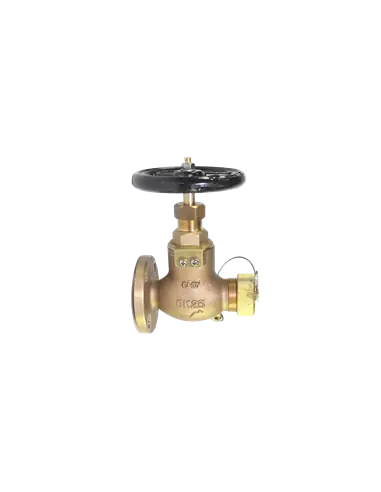

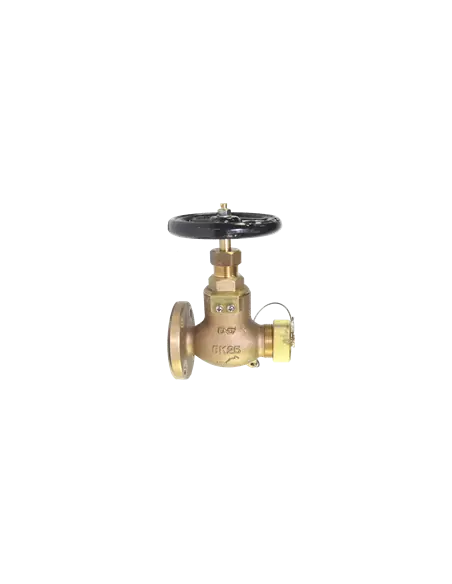

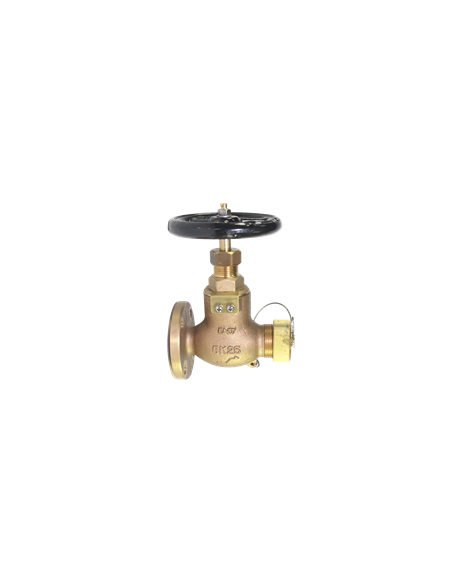

Hose Valve Bronze JIS 10K - F7334

Brass Fire Main Valve JIS 10K F7334

Manual fire main valve for marine water systems, type F7334, certified to JIS standard, with flanged connection, brass body, nominal pressure class 10K, and straight-through flow configuration. Product specification includes JIS, flange, brass, 10K, and straight pattern.

Application Scope

Used in shipboard fire main systems, fire hose stations, engine rooms, decks, and auxiliary fire water networks. Straight pattern is selected when hose outlet is aligned with pipeline axis.

Technical Selection Criteria

• Type: JIS F7334
• Pressure/Flange Class: JIS 10K
• Body Material: Brass
• Network Connection: Flanged
• Pattern: Straight-through
• Operation: Manual
• Service Media: Fire water

Prior to procurement, confirm DN, JIS 10K flange drilling, hose connection type, flange gasket, network operating pressure, and class society requirements.

Difference from JIS 5K

The 10K version corresponds to a higher pressure/flange class than 5K. Substitution with 5K is not recommended without verifying design pressure, flange drilling, and piping compatibility.

Maintenance

Periodic inspection should address seat tightness, stem or packing leakage, condition of bolts and gaskets, unobstructed handwheel rotation, and presence of scale or galvanic corrosion.

FAQ

Is this an angle valve?
No. This version is straight-through pattern.

Is it suitable for steam?
Not as standard. Intended for fire water networks.

Actuator compatible?
This listing refers to manual operation only.
