Hose Valve Angle Bronze JIS 5K - F7334

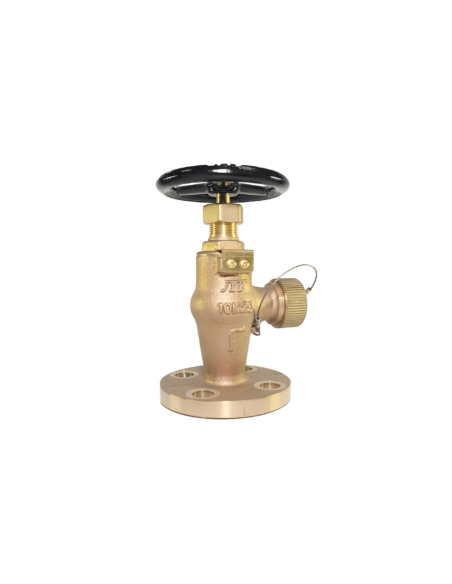

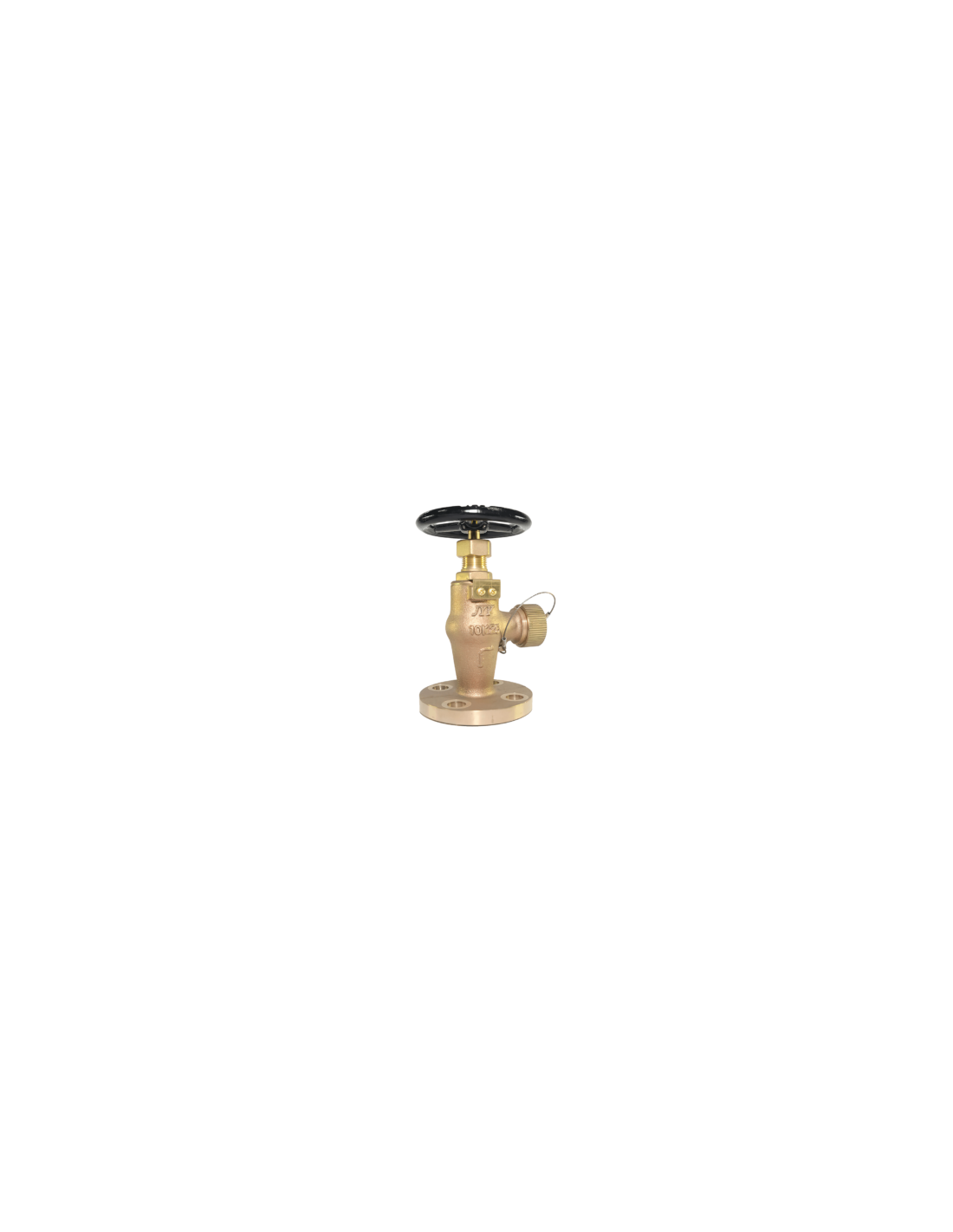

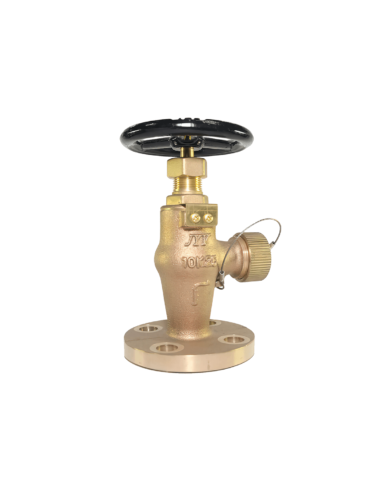

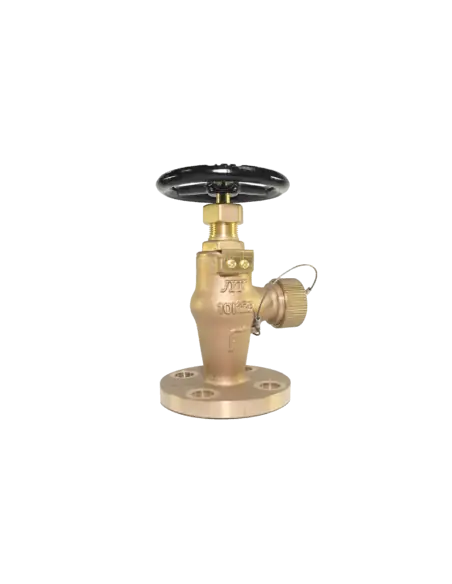

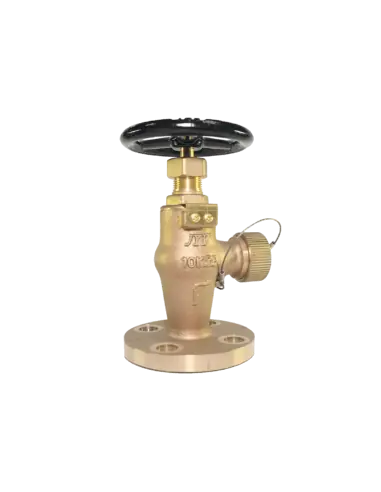

JIS 5K F7334 Bronze Angle Fire Valve

Manual angle fire valve for marine water networks, type F7334, compliant with JIS standard, flanged connection, bronze body, nominal pressure 5K, and angle flow configuration. Technical fields reference JIS, flange, bronze, 5K, and angle flow standard.

Application

This valve is used in ship fire main systems, fire hose stations, engine rooms, decks, and take-off points where outlet direction must be rotated 90° relative to the pipeline.

The angle configuration eliminates the need for additional direction-changing fittings and is suitable for installations near bulkheads, floors, or restricted handling spaces.

Selection Criteria

• Type: JIS F7334
• Pressure/Flange Class: 5K
• Body Material: Bronze
• Network Connection: Flanged
• Configuration: Angle flow
• Operation: Manual
• Medium: Fire water

Before procurement, confirm DN, JIS 5K flange drilling, hose coupling type, flange gasket, fire main operating pressure, and class society requirements.

Maintenance

Periodic inspection includes seat tightness, stem or packing leakage, condition of bolts and gaskets, free handwheel rotation, and potential salt deposits.

Difference from Straight F7334

The straight version is selected when the hose outlet is aligned with the pipeline axis. The angle version is used when a change of direction is required at the take-off point.

FAQ

Is it suitable for steam?
No. Application is for fire water service.

Actuator compatibility?
This listing refers to manual operation only.
