Cla-Val HV-100-15 Brass Angle Fire Hose Valve

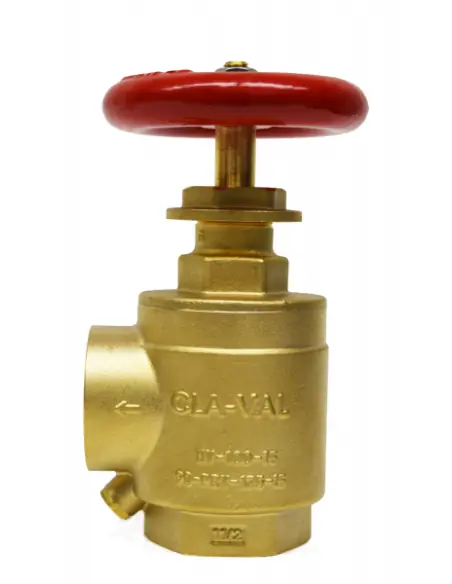

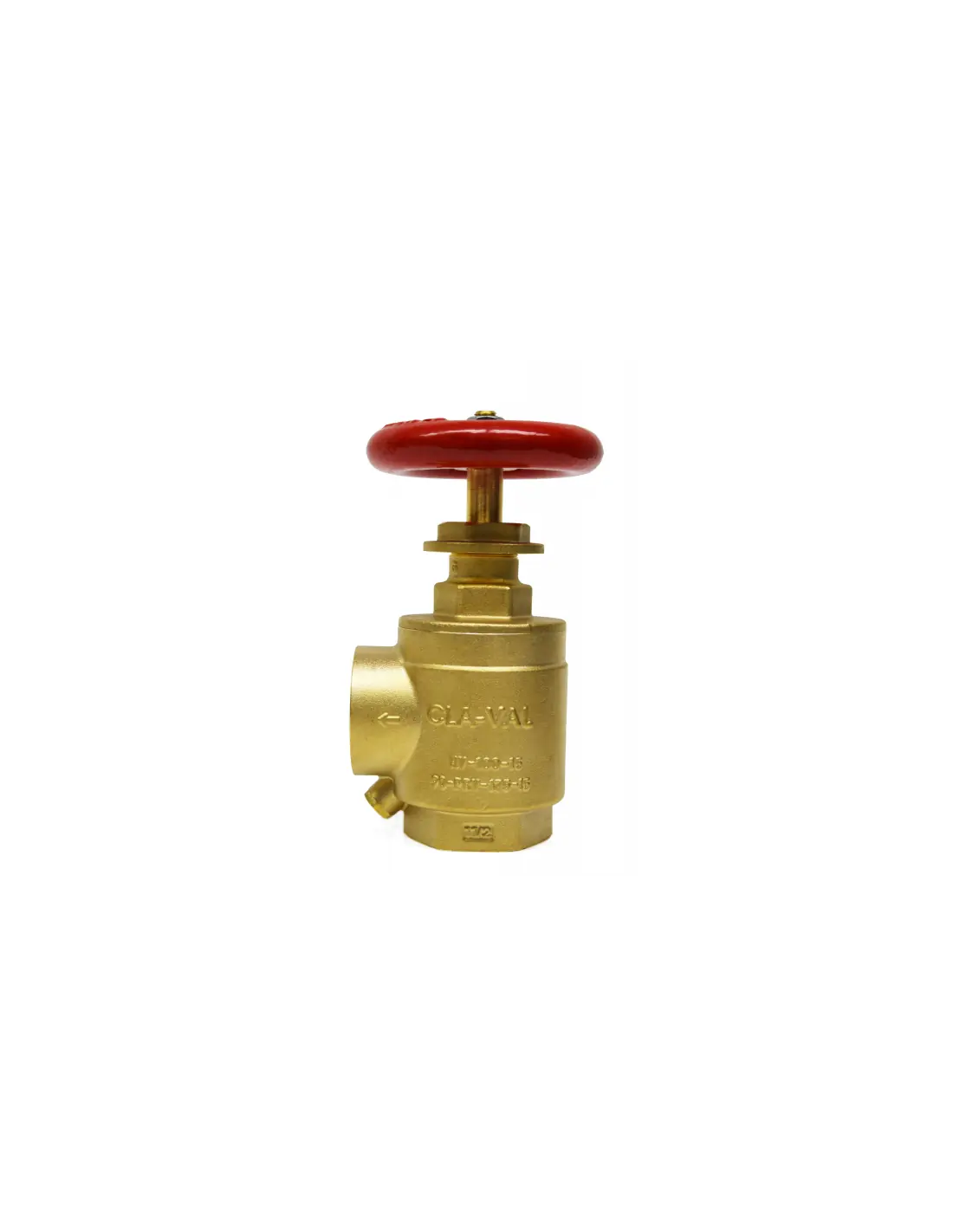

The Cla-Val HV-100-15 is a manually operated, 90° angle fire hose valve with a brass body and handwheel. Nominal size is 1½”. Product documentation classifies it for marine fire protection networks; the technical datasheet refers to it as an Angle Hose Valve. Designed for installation where hose deployment requires an angled outlet from the piping system, minimizing the need for additional elbows.

Standards and Certifications

Model HV-100-15 is UL / ULC Listed and FM Approved. The datasheet references NFPA 14 for Class II & III Standpipe Systems. Factory hydrostatic test pressure is 300 psi / 2070 kPa.

Typical Applications

Applied in fire protection piping, standpipe systems, hose stations, and take-off points where hose must exit at an angle. The 90° configuration reduces the need for separate elbows and is suitable for machinery spaces, decks, bulkheads, and confined installation zones.

Connections and Selection

Available connection types per datasheet:

• Female NPT x Male NPSH / NST / NYFD
• Female NPT x Female NPT

Selection should confirm thread type, system pressure, hose/nozzle compatibility, FM requirement, and whether installation is for hose rack assembly or fire department outlet.

Materials and Maintenance

Brass body is suitable for water-based fire protection media. In marine or corrosive environments, check galvanic compatibility, thread condition, seat integrity, stem packing, and scale or salt deposits during maintenance.

FAQ

Is it manually operated?
Yes, operated by handwheel. No actuator option specified.

What is the standard test pressure?
300 psi / 2070 kPa per technical datasheet.

Is it flanged?
No. Datasheet specifies threaded NPT and NPSH/NST/NYFD connections only.
