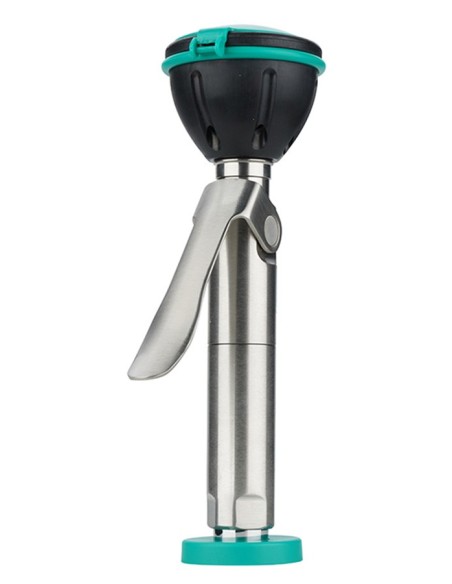

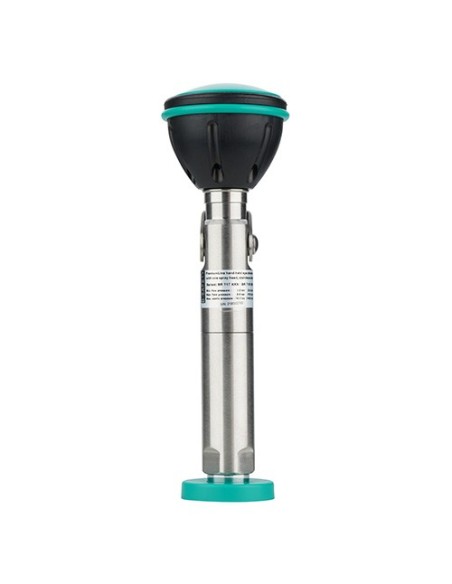

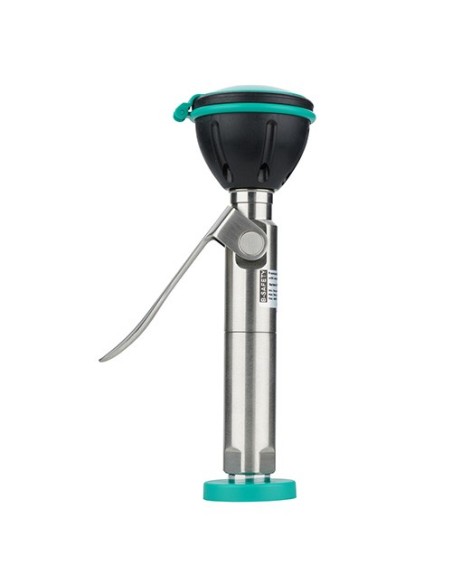

B-Safety PremiumLine BR 718 020 – Handheld Eyewash Station

The BR 718 020 is a bench-mounted, handheld emergency eyewash unit designed for immediate decontamination at workstations with chemical exposure risk. The assembly features a single spray head and is constructed from PremiumLine stainless steel (AISI 304), suitable for installation at laboratory benches, dosing stations, and chemical work areas where rapid response is required.

Technical Specifications

  • Flow rate: 7 l/min
  • Operating pressure: 1.5–5 bar
  • Minimum flow pressure: 1.5 bar
  • Water connection: ½” female
  • Dimensions: 210 × 65 × 100 mm
  • Flexible hose: 1.5 m, stainless steel braided
  • Mounting height: 770 mm ±200 mm

Materials and Operation

All wetted parts, handle, and spray head are AISI 304 stainless steel. The flow regulator is POM, and hose fittings are brass (CW617N / CW614N). The handle includes a large activation lever and a non-self-closing valve, ensuring continuous flow during use. The spray head incorporates a plastic spray plate, elastomeric shroud, and sealed dust cover. Integrated flow control maintains 7 l/min within the specified pressure range.

Standards and Network Protection

Compliant with EN 15154-2:2006 and ANSI Z358.1-2014. Includes integrated non-return valve for potable water protection and certified to DIN-DVGW / DVGW NW-0417CL0263. Safety signage per EN ISO 7010 and ASR A1.3.

Applications

Suitable for clean water supply in laboratories, chemical processing, water treatment, paint shops, parts washing, and maintenance areas with potential exposure to acids, alkalis, cleaning agents, or particulates.

Maintenance Options

Available options: isolation valve ½”, hose weight, alternative hose lengths 1000–3000 mm, flow switch IP65, thermostatic mixing 20–43 °C, and alarm system 230 V / 50 Hz.

Datasheet and documents

Description

Technical Specifications

  • Material: Stainless steel
  • Surface: polished
  • Dimensions (H x W): 210 x 65 mm
  • Hose-Length: 1500 mm
  • Operating pressure: 1.5 to 5 bar
  • Flow rate: 7 l/min
  • Water inlet: ½” female

Norms / Approvals

  • EN 15154-2:2006
  • ANSI Z358.1-2014
  • DIN-DVGW, NW-0417CL0263
  • GOST-R, Certificate-No. 0615463 0615463

Product description

The hand-held eye shower is equipped with the B-SAFETY high-performance spray head, which not only meets the requirements of EN 15154-2:2006 and ANSI Z358.1-2014, but also ensure that the water is distributed over a large area. This also takes care of the regions around the eyes and eyes can be positioned in the water jet without problems. The restricted, even and, most important of all, soft water jet has been optimized for rinsing chemicals out of the eye. The restricted, even and, most important of all, soft water jet has been optimized for rinsing chemicals out of the eye.

With the enclosed table mounting accessory, the hand-held eye shower can be mounted on the table. The robust stainless steel-coated hose in 1.5 meter length ensures good usability of the shower. The correct spray height and a standard-compliant spray pattern are achieved by the integrated flow regulator, regardless of the water pressure present. The backflow preventer built into the handle of the shower provides additional protection of the drinking water network.

DVGW
ISO9001_D_72

Technical Description

  • water-bearing parts made of stainless steel
  • Handle with large, adjusting push lever made of stainless steel, polished, valve not self-closing
  • high-performance spray head made of stainless steel for large-scale dispersion of water, polished, with plastic spray plate, low calcification, incl. rubber sleeves and sealed dust caps with folding mechanism
  • integrated flow regulation 7 litre / minute for a standard-compliant jet pattern at a specified working range of 1.5 to 5 bar flow pressure
  • integrated backflow preventer to protect the drinking water
  • stainless steel covered hose, length 1.5 meter, water inlet ½” female, DIN-DVGW tested and certificated
  • table mounting accessories M28x1,5x80mm made of stainless steel, incl. fastening-parts kit with nut M28x1,5mm and 2 screws M5 for mounting difficult to access, chrome-plated rosette, sealing to table surface with O-Ring
  • sign for eye shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 100 x 100 mm, viewing distance 10 metre
  • mounting height 770 mm (± 200 mm)
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014 and EN 15154-2:2006
  • DIN-DVGW tested and certificated
