Frostprotected heated body safety shower - PremiumLine - BR 819 095 | B-Safety

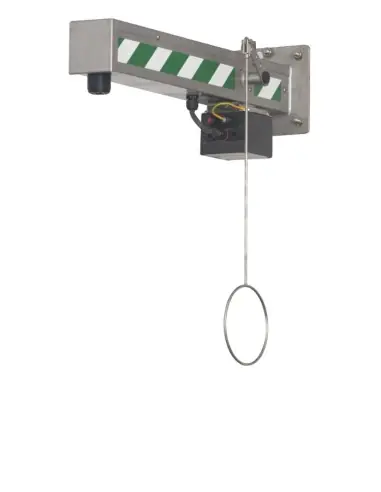

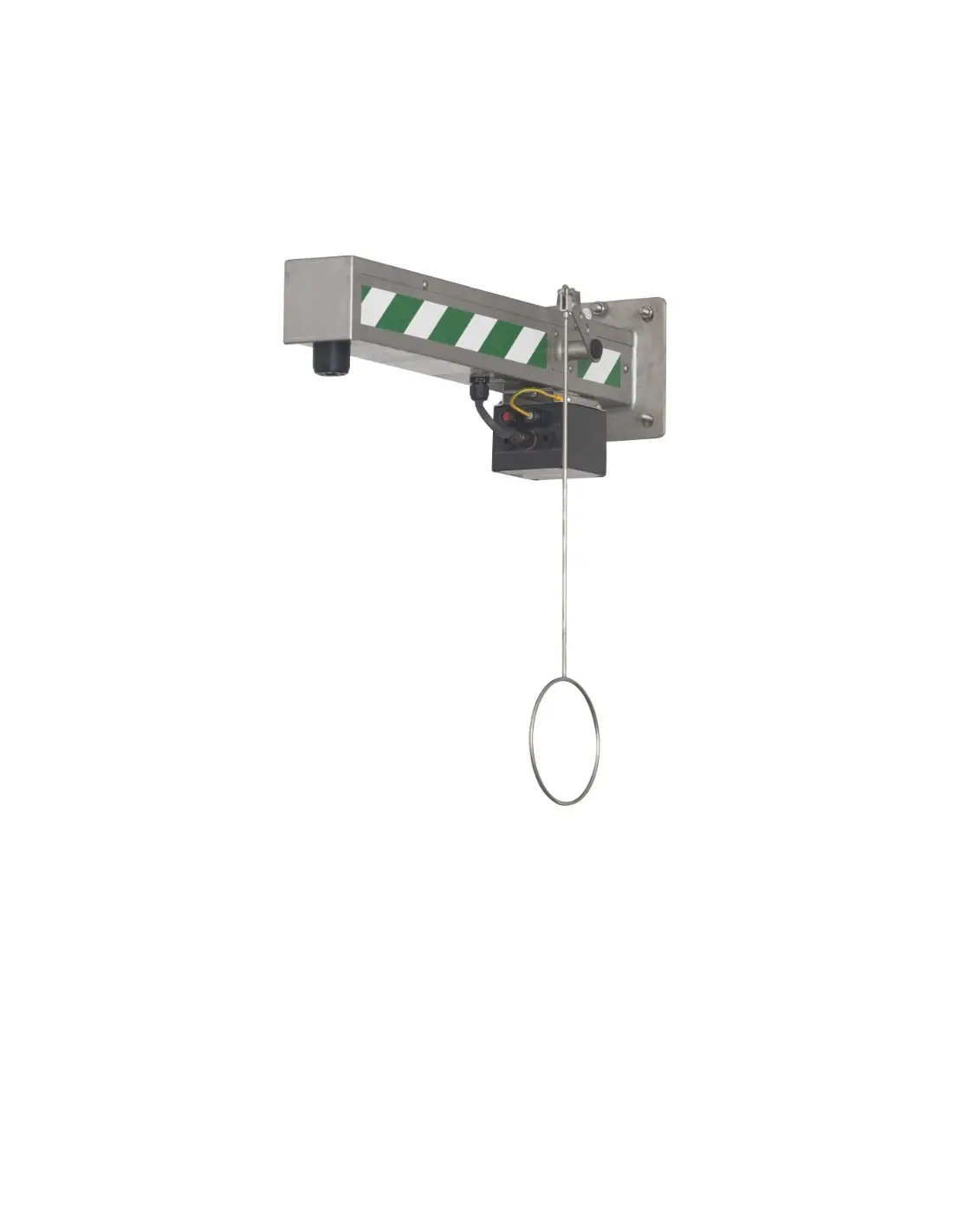

Frostprotected Heated Body Safety Shower - PremiumLine - BR 819 095 | B-Safety: Stay Safe, Whatever the Weather

Ensure maximum protection in industrial environments with the innovative Frostprotected heated body safety shower - PremiumLine - BR 819 095 | B-Safety. Designed for ultimate reliability, this emergency shower provides immediate, life-saving decontamination, even in freezing conditions. Built for demanding workplaces, it stands out as the first line of defense against hazardous exposure.

Features & Benefits of the Frostprotected Heated Body Safety Shower - PremiumLine - BR 819 095 | B-Safety

  • Reliable Frost Protection: No matter how cold it gets, the internal heating system keeps water ready and flowing. The insulated jacket and advanced frost protection guarantee performance down to extremely low temperatures.
  • Rapid Response: Immediate activation ensures a powerful, steady flow of water to quickly rinse chemicals and contaminants from the body, reducing risk of injury.
  • Built to Last: Crafted from durable, high-grade materials, this shower resists corrosion and damage, ensuring long-term use and easy maintenance.
  • Simple to Operate: Clear, intuitive controls mean anyone can activate the shower in seconds, even in stressful situations.
  • Visible and Accessible: High-visibility colors and ergonomic design make it easy to locate, while the compact footprint allows for flexible installation in tight industrial spaces.

The Frostprotected heated body safety shower - PremiumLine - BR 819 095 | B-Safety is a must-have for facilities where employee safety is a top priority—particularly in cold environments. Its heating system prevents water from freezing, ensuring a constant supply during emergencies. Constructed for heavy use, its stainless steel parts withstand tough industrial conditions without compromising on performance.

Routine maintenance is straightforward thanks to user-friendly access panels. Installation is simple, and the shower connects seamlessly to most water sources. Once in place, it works around the clock—ready to respond whenever the need arises.

Choose the Frostprotected heated body safety shower - PremiumLine - BR 819 095 | B-Safety to protect your team, meet safety regulations, and ensure quick, effective emergency response. Safety, reliability, and peace of mind—whatever the temperature.

Datasheet and documents

Description

Technical Specifications

  • Material: stainless steel
  • Surface: polished
  • Projection: 755 mm
  • Installation height: 2250 mm
  • Minimum flow pressure: 2.0 bar
  • Operating pressure: 2 to 8 bar
  • Flow rate: 50 l/min (110 l/min)
  • Water inlet: 1” male
  • Electrical supply: 230 V – 50 Hz

Norms / Approvals

  • EN 15154-2:2006
  • EN 15154-5:2019
  • ANSI Z358.1-2014
  • DIN-DVGW, DVGW, NW-0416CL0425
  • GOST-R, Certificate-No. 0615463 0615463
  • GOST-TR-EX, Certificate-No. 0338358 0338358

Product description

The B-SAFETY body safety showers of the PremiumLine series are made of stainless steel and are just as suitable for use in laboratories and research as for rough use in industry. The polished stainless steel surface is not only resistant to many chemicals, but also offers a modern design for laboratories and clean rooms.

The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the specifications of ANSI Z358.1 and EN 15154, but is also self-draining, largely free of calcification- and maintenance, and very robust and corrosion-resistant. The limited, uniform and above all soft water jet is optimized for rinsing off chemicals on the skin.

ISO9001_D_72

Technical Description

  • wall flange with 4 mounting holes of stainless steel, dimensions 200 x 200 mm, water inlet 1” male
  • connection pipe 1” of stainless steel, length 75 mm
  • ball valve 1” of stainless steel, with pull rod actuation, DIN-DVGW tested and certificated
  • pull rod with ring handle of stainless steel , length 700 mm
  • wall shower arm 1“ of stainless steel, projection 755 mm
  • high-performance shower head of chemical resistant plastics, black, with improved spray pattern, corrosion resistant, largely calcification- and maintenance-free, very robust, self-draining
  • outer casing of the shower made of screwed stainless steel housing, easy to dismantle for maintenance work, including green/white indicator strips for better visibility of the shower
  • insulation made of mineral wool shape package, non-flammable, according to DIN 4102
  • heating by self-regulating trace tape, output 10 W/m, electrical supply 230 V – 50 Hz
  • outdoor thermostat and power-saving-circuit (shutdown of trace tape at 11°C, switch on at 4°C)
  • sign for body safety shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 meter
  • mounting height 2250 mm (± 100 mm)
  • suitable for use in EX-Zones 1 & 2, all electrical parts explosion-proof, with risk assessment in accordance with industrial safety regulations concerning the non-electrical and electrical explosion protection
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014, EN 15154-1:2006 and EN 15154-5:2019
  • DIN-DVGW tested and certificated

Certification

ISO9001_D_72
