Flow - Series SC250 | Tecfluid

Flow - Series SC250 | Tecfluid: Precision Flow Measurement, Made Simple

Discover the reliability and accuracy of the Flow - Series SC250 | Tecfluid, the ultimate solution for industrial flow measurement. Designed for those who value efficiency and simplicity, this flowmeter combines advanced technology with ease of use, ensuring optimal control of your process operations every time.

Why Choose the Flow - Series SC250 | Tecfluid?

  • Accurate Results: Trust the SC250 to deliver precise flow readings, helping you maintain top-quality production and prevent costly errors.
  • Easy Installation: The compact design fits perfectly into your existing systems, minimizing downtime and saving valuable time during setup.
  • Durable Construction: Built to last with robust materials that withstand tough industrial environments, reducing the need for frequent maintenance.
  • User-Friendly Interface: Simple controls and a clear display make it easy for anyone to operate, regardless of experience level.
  • Versatile Applications: Suitable for a wide range of fluids, from water and oil to chemicals, adapting effortlessly to your process needs.

Advanced Features of Flow - Series SC250 | Tecfluid

  • Real-Time Monitoring: Instantly view flow rates and key data on the bright, easy-to-read screen, keeping you informed at a glance.
  • High Sensitivity: Detects even subtle changes in flow, allowing for faster responses and better process control.
  • Flexible Output Options: Easily integrate the SC250 into your control systems with multiple output formats, streamlining data management.
  • Low Maintenance: The clever self-cleaning mechanism reduces the need for regular servicing, saving you costs and hassle.
  • Efficient Power Usage: Operates with minimal energy consumption, lowering your facility’s operating expenses.

The Flow - Series SC250 | Tecfluid is the dependable partner for industries that demand precision and efficiency. With its smart features and robust design, it takes the guesswork out of flow measurement, so you can focus on what matters most—keeping your processes running smoothly. Experience the next level of industrial flow control today.

Description

Description

Medidores de caudal de área variable y tubo metálico para líquidos, gases y vapor.

Totalmente metálicos y de construcción robusta están particularmente indicados para la medida de caudal en condiciones extremas de temperatura, presión con alta resistencia a la corrosión. Indicación por medio de transmisión magnética.

Baja pérdida de carga y sistema de amortiguación de flotador para evitar inestabilidades del mismo en aplicaciones de gas y vapor.

Technical specifications

Available for all flow directions

  • SC250 model: installation in vertical pipes with upwards flow
  • SC250V model: installation in vertical pipes with upwards (to increase the flow capacity) and downwards flow

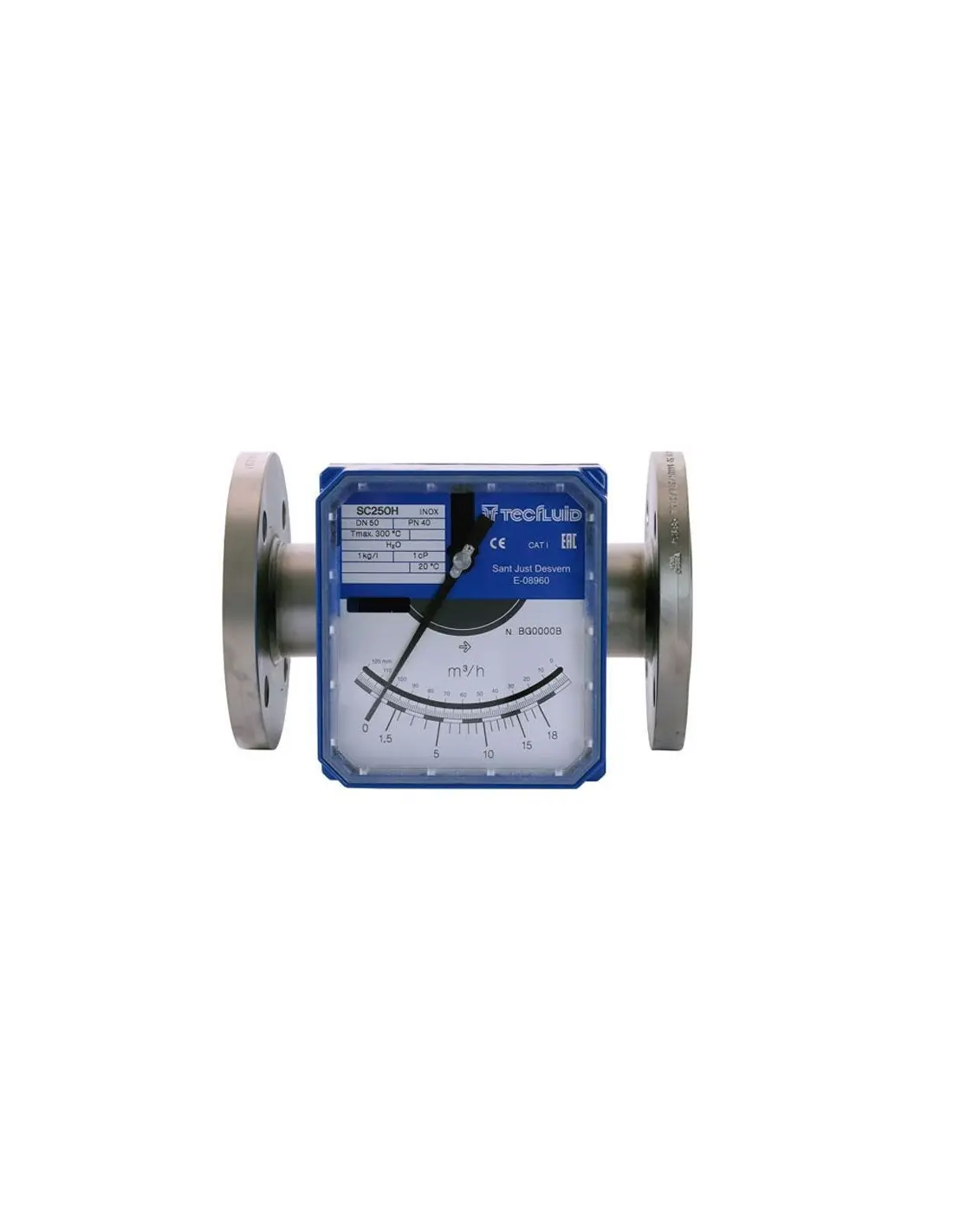

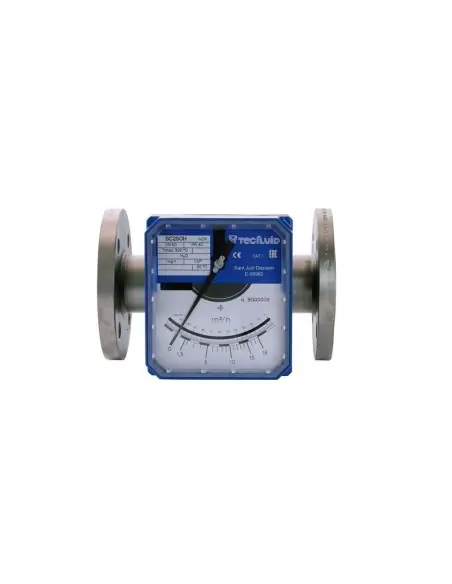

  • SC250H model: installation in horizontal pipes

Indicator housing in aluminium

  • Available in SS 316L or PP on request

Measuring range

  • 2,5 l/h … 180 m3/h H2O
  • 75 Nl/h … 5500 Nm3/h air

Accuracy

  • ±2,5% f.s. (+-1,6% f.s. on request)

Connections

  • SC250 DN15 … DN150
  • SC250H…V/ SM250 DN15 … DN80
  • DIN flanges. Other flange standards on request (ANSI, JIS…)
  • Threaded connections BSP or NPT
  • Sanitary connections according to CLAMP ISO 2852, SMS 1145, DIN 11851 (others on demand)

Materials

  • EN 1.4404 (SS 316L), Hastelloy C, PVC, PP, PTFE, Titanium

Options

  • adjustable switches (micro-switch or inductive sensor)
  • Electronic transmitter with 4-20 analog output for safe or hazardous area (Ex ia IIC T4 or T6 protection, ATEX certified)
  • HART ™ protocol on request
  • Local volume totalizer. Remote volumen totalizar by means of pulse output (not available for Ex transmitters)

Declarations of Conformity

Certifications
