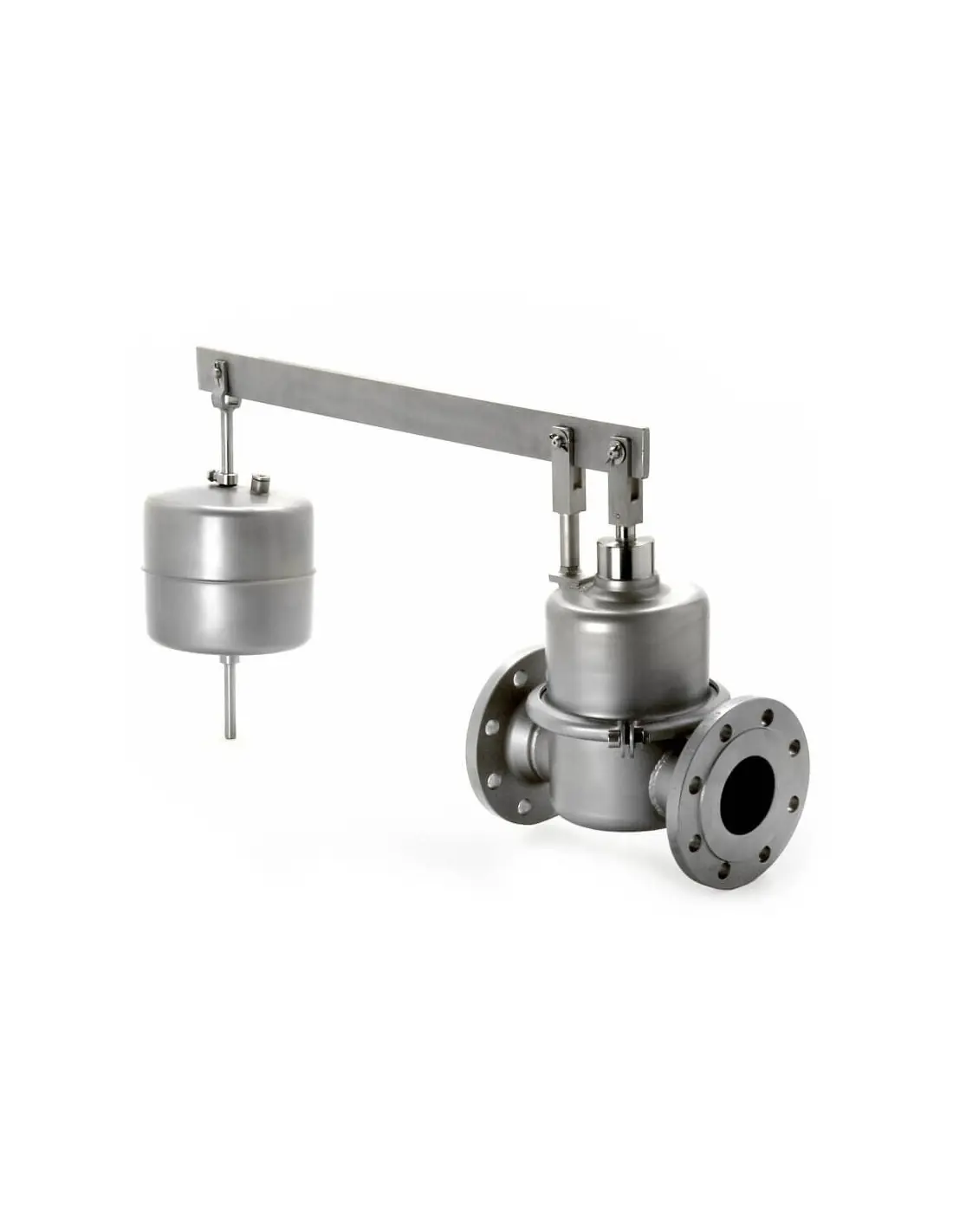

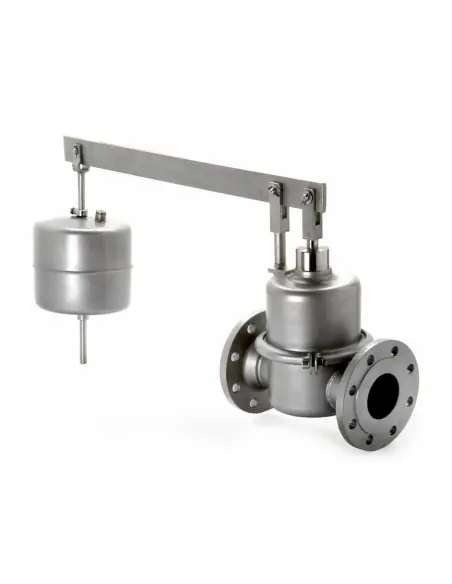

Float Valves Type NV 66e | Mankenberg

Discover Reliability: Float Valves Type NV 66e | Mankenberg

The Float Valves Type NV 66e | Mankenberg bring a new level of simplicity and precision to automatic water level control in industrial settings. Designed for demanding environments, these valves guarantee safe and efficient water management wherever precise level regulation is essential. With robust construction and intelligent engineering, NV 66e ensures dependable operation for years to come.

Features & Benefits of Float Valves Type NV 66e | Mankenberg

  • Automatic Water Level Control: NV 66e float valves automatically maintain preset liquid levels, reducing manual intervention and minimizing maintenance requirements.
  • Durable Stainless Steel Construction: Built from high-quality materials, these valves resist corrosion and wear, making them ideal for harsh industrial environments.
  • Exceptional Leak Tightness: The advanced sealing system prevents unwanted leaks and ensures consistent, trouble-free performance.
  • Simple Installation & Operation: Easy to install and adjust, the NV 66e fits seamlessly into most industrial tanks, saving time during setup and operation.
  • Energy-Free Operation: The mechanical float system operates without electricity, lowering running costs and ensuring reliability even during power outages.
  • Versatile Applications: Suitable for water, neutral liquids, and certain chemicals, making it a flexible solution for a wide range of industries.

With the Float Valves Type NV 66e | Mankenberg, there is no need to worry about constant surveillance or complex electronic components. The clever float mechanism rises and falls with liquid levels, automatically opening or closing the valve as needed. This keeps your tanks at the right level, every time.

NV 66e’s low-maintenance design means fewer interruptions and longer operational life. It stands up to tough conditions, thanks to corrosion-resistant materials and a rugged build. The efficient, leak-free performance helps protect equipment and reduce costly downtime.

Choose Float Valves Type NV 66e | Mankenberg for peace of mind and reliable automated control. Keep your processes running smoothly with a solution trusted by industry professionals worldwide.

Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • Stainless Steel
Pressure Rating (Options)
  • PN 16

Datasheet and documents

Description

Product features

Float valves automatically control liquid levels in sealed or open (non-pressurised) tanks and vessels without requiring external energy.

The float registers the liquid level and directly controls the valve via a lever.

A change in the liquid level immediately results in a changed flow volume.

Standard

  • Completely made of stainless steel
  • Excellent surface quality
  • Corrosion-resistant, very lightweight and compact
  • Quick-release body clamp ring
  • Balanced cone, soft sealed
  • Float bar stainless steel
  • Cylindrical float SC 8 stainless steel

Options

  • Float adjustment to the density of the medium
  • Various seal materials suitable for your medium
  • Aseptic or ANSI flanges, welding spigots

Technical data

DN
15 - 100
PN
16
p
0 - 16 bar
Kvs
4 - 100 m3/h
T
130 °C

Liquids up to 130 °C, also suitable for aggressive media | soft seal | completely made of stainless steel

Advantages

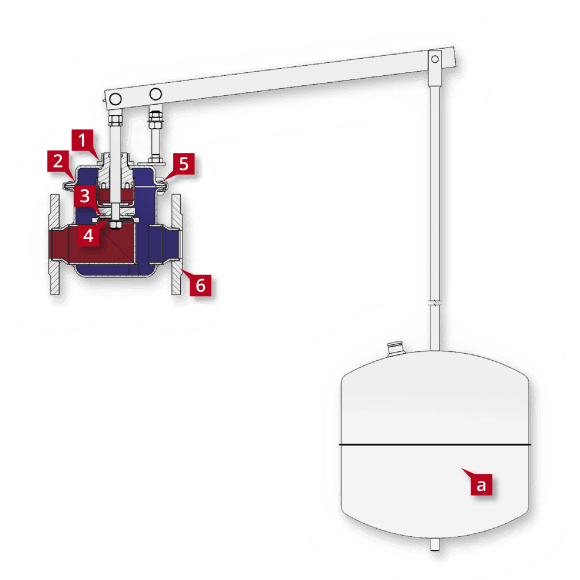

nv66e-schnitt
1

Excellent standard surface quality

Easy to clean

2

Stainless steel (1.4404 / 316L), deep-drawn, corrosion-resistant, light and compact

Long operational lifespan, manageable installation, minimum space required

3

Inlet pressure balanced cone

Small float required

4

Soft gasket

Tight valve closure already in depressurised condition

5

Mankenberg clamp system

Easy maintenance

6

Various connection alternatives: DIN- , ANSI- or JIS flanges, welding ends ...

No adapters or fitting pieces required

Options

a

Adaptable floats and elastomers

Can be used for any liquid media

Inlet Pressure

Outlet Pressure
