Gefran 1550 Controller – Programmer

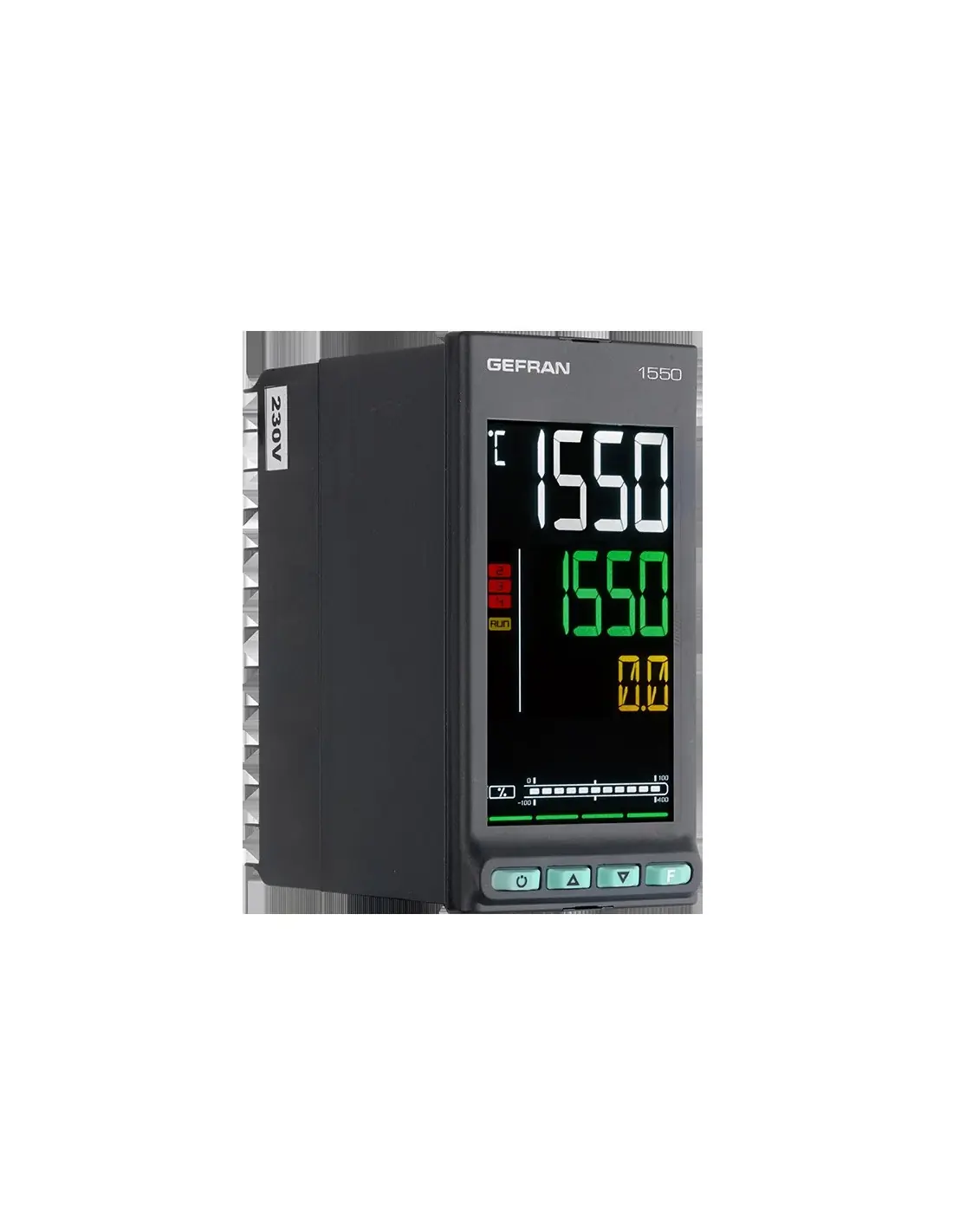

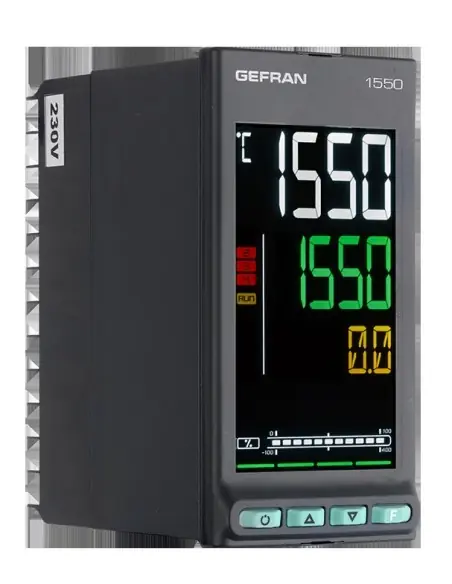

The Gefran 1550 is a single-loop PID controller, 48×96 mm (1/8 DIN), 80 mm depth, designed for local temperature or process control in panel door installations. The front panel features an LCD display for PV/SV, an F display for parameter access and diagnostics, a bargraph for power/current/valve position, and a removable front for front-side maintenance.

Process Inputs

Primary input supports thermocouples J, K, R, S, T, C, D, RTD Pt100/JPT100, infrared sensors, and linear signals (0–60 mV, 0–1 V, 0–5 V, 0–10 V, 0/4–20 mA). Sampling time is selectable at 60 or 120 ms, with a range of -1999 to 9999 and adjustable digital filtering. Additional inputs include remote setpoint (0–1 V, 0–10 V, 0/4–20 mA) and CT input x/50 mAac for load monitoring.

Outputs and Control

Output options: relay (up to 4 NO contacts, 5 A / 250 Vac), logic 24 V for SSR, triac (75–264 Vac / 1 A), continuous 4–20 mA, or analog retransmission (0–10 V, 0–20 mA, 4–20 mA). Supports PID, ON/OFF, heat, cool, heat/cool, and open/close control for floating motorized valves via relay, SSR, or triac.

Programming and Diagnostics

Setpoint programmer supports up to 4 programs and 12 steps, with setpoint, ramp time, and hold time per step. Up to 4 consents, 4 events, 4 selectable setpoints, 16 logic function blocks, and timer functions are available. Diagnostics include LBA, HB, SSR alarm, and energy counter with calculation from nominal power or current via CT.

Typical Applications

  • Ovens, dryers, thermal zones
  • Extruders, injection moulding, heated moulds
  • Resistive loads with SSR, contactor, or triac
  • Heating/cooling loops with remote setpoint
  • Motorized valves in thermal or cooling loops

Operating Conditions and Standards

Power supply: 100–240 Vac/Vdc ±10%, optional 20–27 Vac/Vdc. Operating temperature: -10 to +55 °C. Front panel: IP65. Installation category II, pollution degree 2. Compliance: EMC 2014/30/EU (EN 61326-1), LVD 2014/35/EU (EN 61010-1), UL listed for process control equipment.

Datasheet and documents

Description

Technical specifications

Overview

The 1550 offers precise and consistent control for a wide range of industrial applications. This single-loop PID controller has a large multicolor LCD display, making it easier to read, and the controller’s configuration is both intuitive and straightforward to use. It is programmed with multiple languages so operating information and diagnostic messages can be set to the language of your choice, and the controller is capable of sequential logic, allowing routine functions to be integrated in a single device.

Description

  • Precise PID controller single loop
  • SP programmer 24 steps / 4 programs
  • Configurable universal input (Tc, RTD, mA, V, Potentiometer)
  • Accuracy 0.2% reading value
  • Sampling time 60ms
  • Motorized valve control
  • Transmitter aux power supply
  • Analog retransmission
  • High visibility LCD interface display
  • Scrolling diagnostic messagess
  • Programmable logic function blocks
  • Heater break diagnostic (CT input)
  • Energy counter and totalizer
  • Modbus RTU serial communication

Certifications

UL Certification - 650 - 1250 - 1350 - 1550
