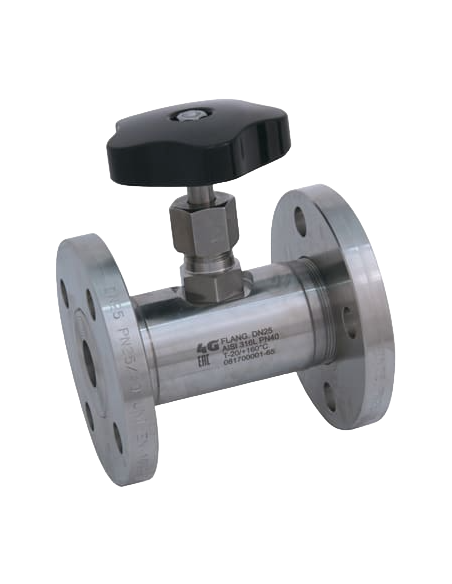

The Needle Valve UNI EN 1092-1 - 658050 | 4G Ghidini is a precision control valve designed for fine regulation of flow. It features a PIN valve mechanism and is operated via a handwheel. The valve connects using revolving threaded flanges compliant with UNI EN 1092-1:2003 standards. Constructed from high-quality Aisi 316L (1.4404) stainless steel, it is available in sizes ranging from DN10 to DN25. The valve is suitable for operating temperatures between -20°C and +160°C and boasts a polished outer finish for enhanced durability and aesthetics. Optional features include an antistatic device certified for ATEX II 2G Ex h IIC T4 Gb and II 2D Ex h IIIC T135°C Db environments, as well as compliance with M.O.C.A. CE 1935/2004 for materials intended to come into contact with food.
Standard (Options)
  • DIN
Connection (Options)
  • Revolving Threaded Flanges
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 40

Datasheet and documents

Description

PIN valve

Drive: Handwheel

Connection: Revolving threaded flanges UNI EN 1092-1:2003

Material: Aisi 316L (1.4404)

Measure: from DN10 to DN25

Operating temperature: -20°C+160°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004
