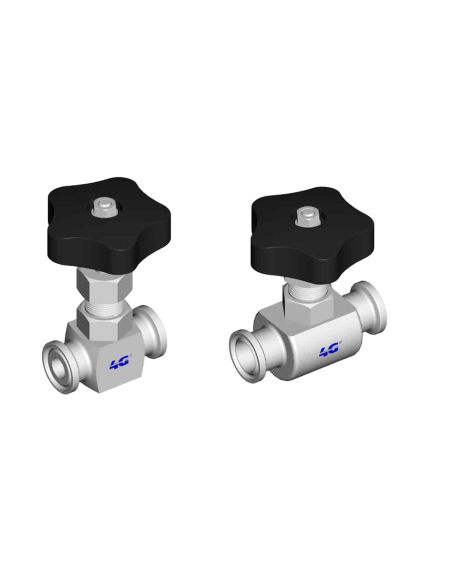

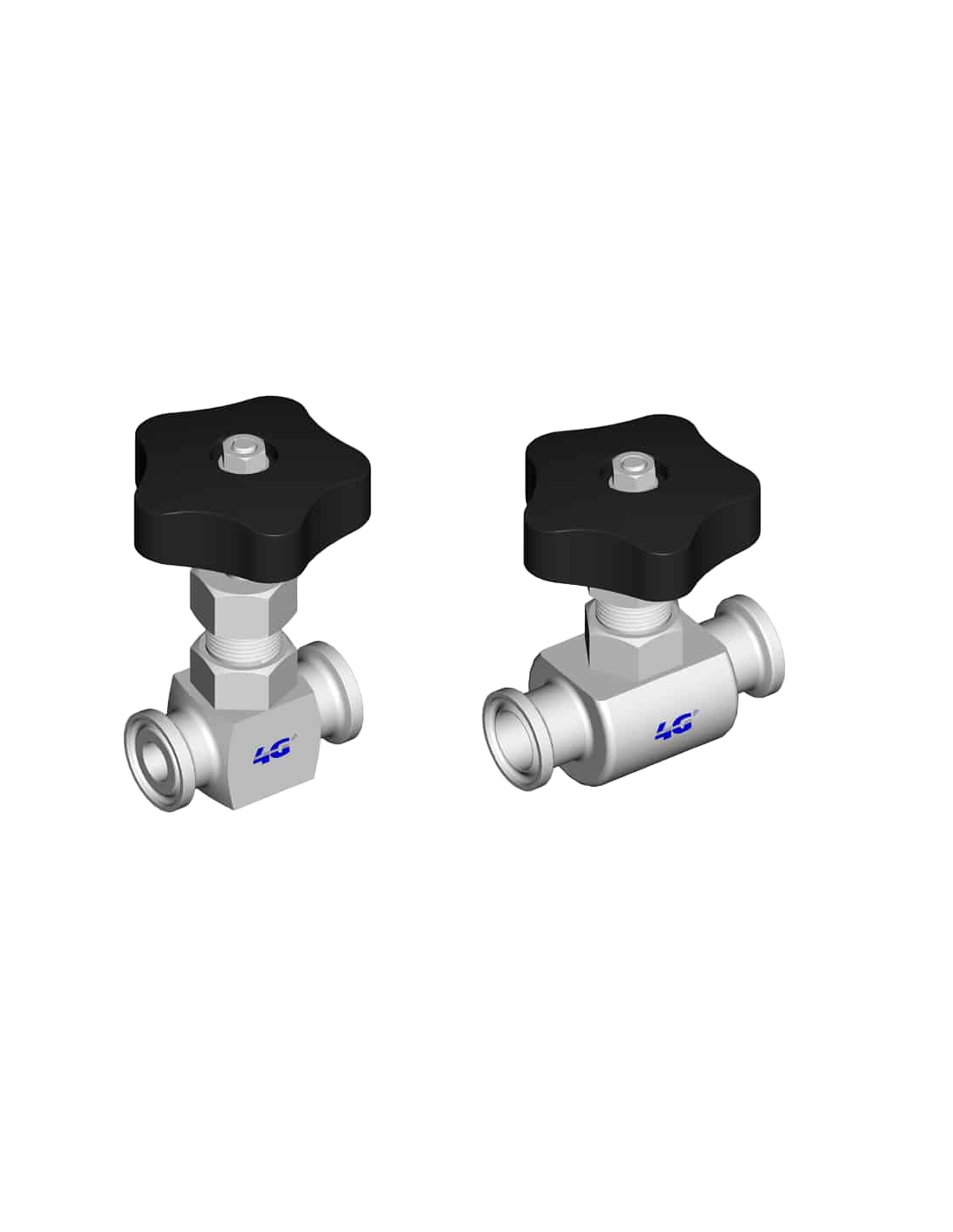

The Needle Valve Clamp - 658030 by 4G Ghidini is a precision-engineered valve designed for precise flow control. It features a PIN valve mechanism operated by a handwheel, ensuring easy manual control. The valve connects using CLAMP standards DIN 32676 TAB.4 REIHE C and TAB.2 REIHE A, making it versatile for various applications. Constructed from high-quality Aisi 316L (1.4404) stainless steel, it offers excellent corrosion resistance and durability. The valve is available in sizes ranging from 1/2” to 1″ and can operate within a temperature range of -20°C to +160°C. Its polished outer finish enhances its aesthetic appeal and cleanliness. Optional features include an antistatic device compliant with ATEX standards for explosive environments and M.O.C.A. certification according to CE 1935/2004 for materials in contact with food.
Standard (Options)
  • DIN
Connection (Options)
  • Clamp
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 100
  • PN 160

Datasheet and documents

Description

PIN valve

Drive: Handwheel

Connection: CLAMP normativae DIN 32676 TAB.4 REIHE C e TAB.2 REIHE A

Material: Aisi 316L (1.4404)

Measure: from 1/2” to 1″

Operating temperature: -20°C+160°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004
