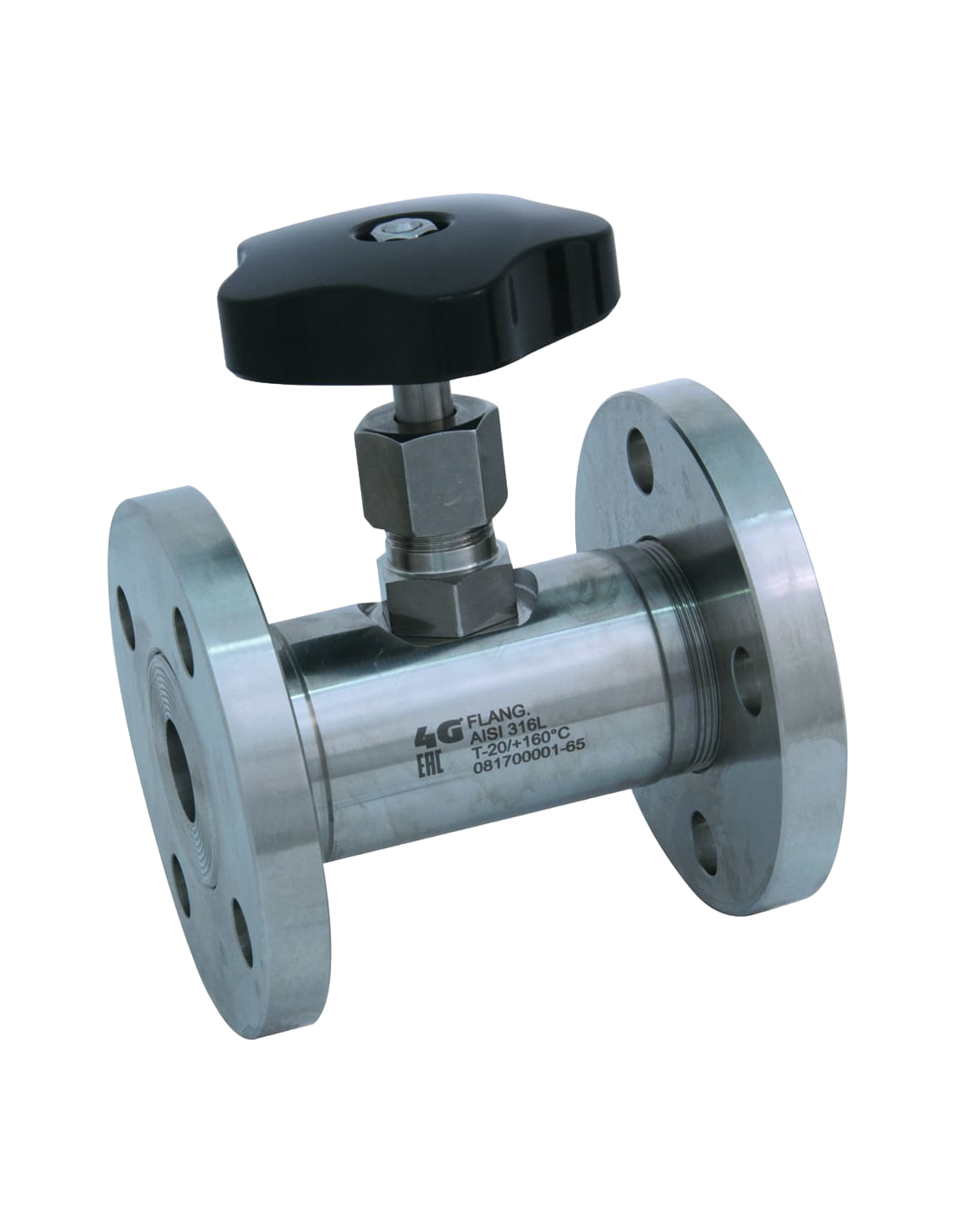

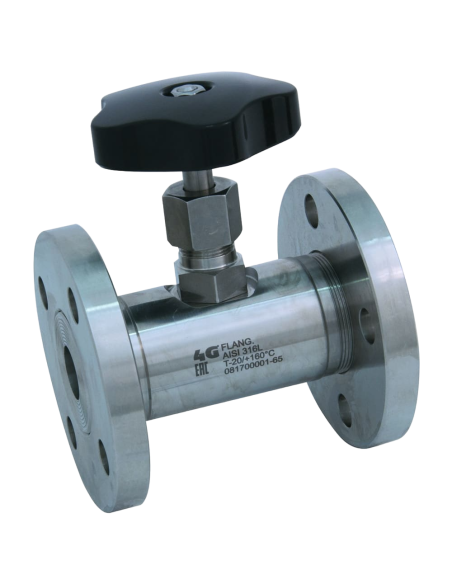

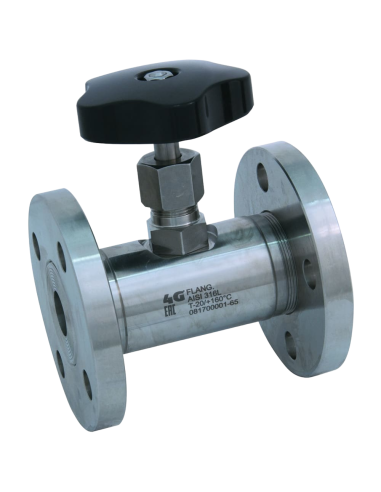

The Needle Valve EN 1759-1 CLASS 150 - 658055 by 4G Ghidini is a precision-engineered valve designed for precise flow control. It features a PIN valve mechanism operated by a handwheel, ensuring easy and accurate adjustments. The valve connects via revolving threaded flanges compliant with EN 1759-1 CLASS 150 standards. Constructed from high-quality Aisi 316L (1.4404) stainless steel, it offers excellent corrosion resistance and durability. Available in sizes ranging from 1/2″ to 1″, it operates efficiently within a temperature range of -20°C to +160°C. The valve boasts a polished outer finish for enhanced aesthetics and hygiene. Optional features include an antistatic device compliant with ATEX standards (II 2G Ex h IIC T4 Gb and II 2D Ex h IIIC T135°C Db) and M.O.C.A. certification according to CE 1935/2004 for materials intended to come into contact with food.
Connection (Options)
  • Revolving Threaded Flanges
Material (Options)
  • 1.4404

Datasheet and documents

Description

PIN valve

Drive: Handwheel

Connection: Revolving threaded flanges EN 1759-1 CLASS 150

Material: Aisi 316L (1.4404)

Measure: from 1/2″ to 1″

Operating temperature: -20°C+160°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004
