Needle valve NPT F - 658004 | 4G Ghidini
Needle valve NPT F - 658004 | 4G Ghidini

Needle valve NPT F - 658004 | 4G Ghidini

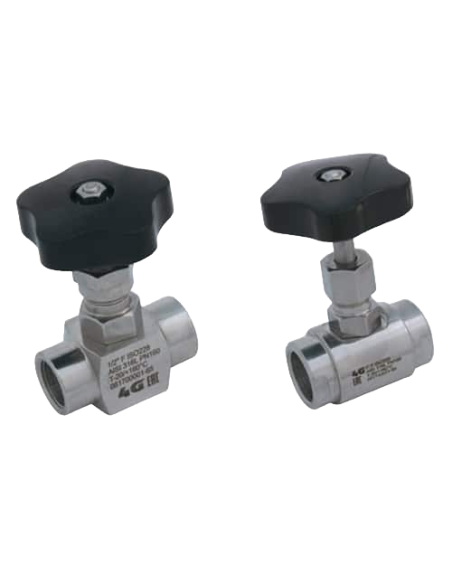

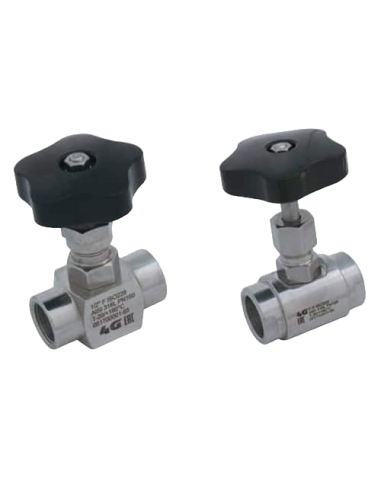

The Needle Valve NPT F - 658004 by 4G Ghidini is a precision-engineered valve designed for precise flow control. It features a handwheel drive and NPT female/female thread connections, making it suitable for various industrial applications. Constructed from high-quality Aisi 316L (1.4404) stainless steel, it offers excellent corrosion resistance and durability. The valve is available in sizes ranging from 1/4” to 1”1/2 and can operate within a temperature range of -20°C to +160°C. Its polished outer finish enhances its aesthetic and functional appeal. Optional features include an antistatic device compliant with ATEX standards (II 2G Ex h IIC T4 Gb and II 2D Ex h IIIC T135°C Db) and M.O.C.A. certification according to CE 1935/2004.
Standard (Options)
  • DIN
Connection (Options)
  • NPT
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 100
  • PN 160

Datasheet and documents

Description

PIN valve

Drive: Handwheel

Connection: NPT female/female thread

Material: Aisi 316L (1.4404)

Measure: from 1/4” to 1”1/2

Operating temperature: -20°C+160°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004
