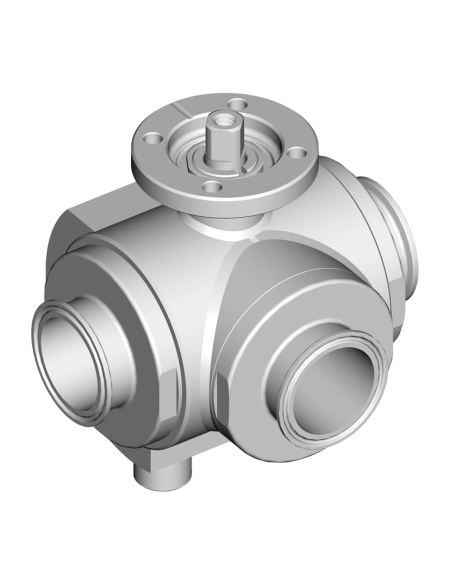

The 3 Way (T) Ball Valve with Heating Jacket by 4G Ghidini, model 303030C, is a versatile valve designed for efficient fluid control. It features a three-way ball valve with a "T" port and four seals, ensuring reliable operation. The valve is equipped with a heating jacket to maintain optimal fluid temperature. It is compatible with actuators via an ISO 5211 – DIN 3337 flange. The valve supports various clamp connections according to DIN 32676 standards, suitable for tubes conforming to BS/OD, DIN 11850, and ISO 1127 norms. It offers both full and reduced flow options and is constructed from durable Aisi 304L and Aisi 316L stainless steel. Available in sizes ranging from 1/2” to 4” (DN10 to DN100), it operates within a temperature range of -20°C to +170°C. The valve features modified virgin P.T.F.E. seals and a polished outer finish. Optional features include an antistatic device compliant with ATEX standards and seals made from various materials like PTFE with glass, carbographite, inox, and UHMW polyethylene, catering to different temperature requirements.
Standard (Options)
  • DIN
Connection (Options)
  • Clamp
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve 4 seals with “T” port with HEATING JACKET

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection:

  • CLAMP normative DIN 32676 TAB.4 REIHE C For TUBE according to normative BS/OD (ASTM A270)
  • CLAMP normative DIN 32676 TAB.2 REIHE A For TUBE according to normative DIN 11850
  • CLAMP normative DIN 32676 TAB.3 REIHE B For TUBE according to normative ISO 1127

Flow: Full and reduced

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure:

  • from 1/2” to 4”
  • from DN10 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
