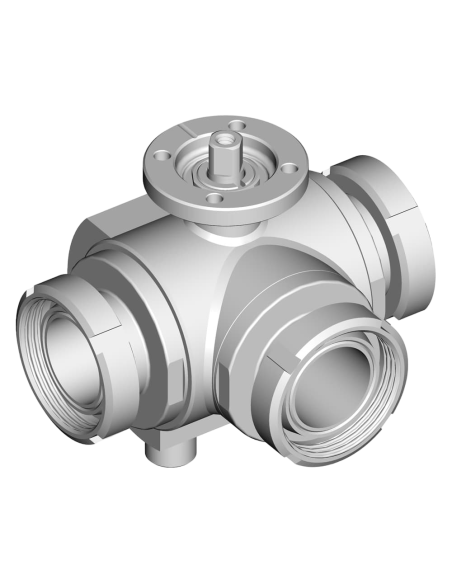

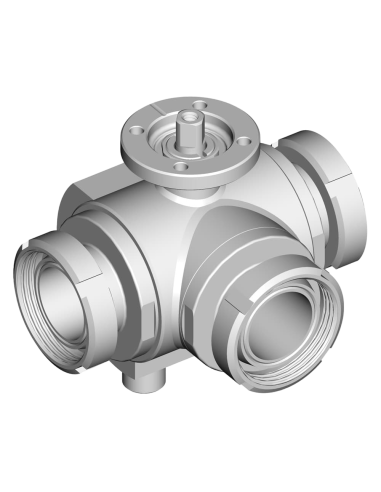

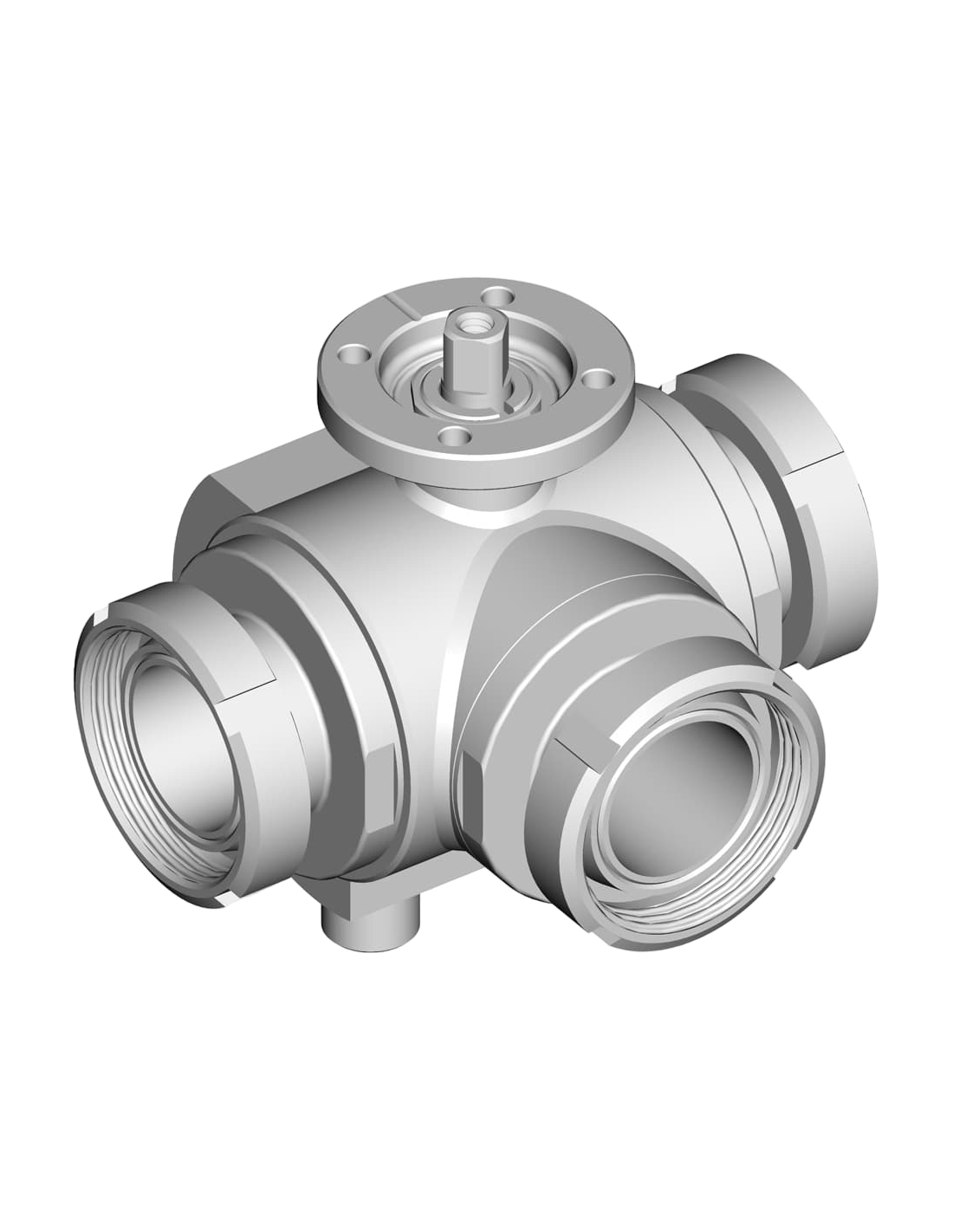

The 3 Way (T) Ball Valve by 4G Ghidini, model 303027C, is a versatile valve designed for efficient fluid control. It features a three-way configuration with a "T" design and includes a heating jacket for temperature-sensitive applications. The valve is equipped with four standard seals made from Modified Virgin P.T.F.E., ensuring reliable performance across a wide temperature range of -20°C to +170°C. It is constructed from high-quality Aisi 304L (1.4307) and Aisi 316L (1.4404) stainless steel, offering durability and corrosion resistance. The valve supports full flow and is available in sizes ranging from DN10 to DN100. It is designed for easy integration with an ISO 5211 – DIN 3337 flange for actuator drive and features male/male/male connections compliant with DIN 11851 standards. The polished outer finish enhances its aesthetic and hygienic properties. Optional features include an antistatic device for ATEX environments and various seal materials for specific temperature and chemical resistance requirements.
Standard (Options)
  • DIN
Connection (Options)
  • DIN 11851
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve 4 seals with “T” with HEATING JACKET

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: DIN 11851 male/male/male

Flow: full

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: from DN10 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
