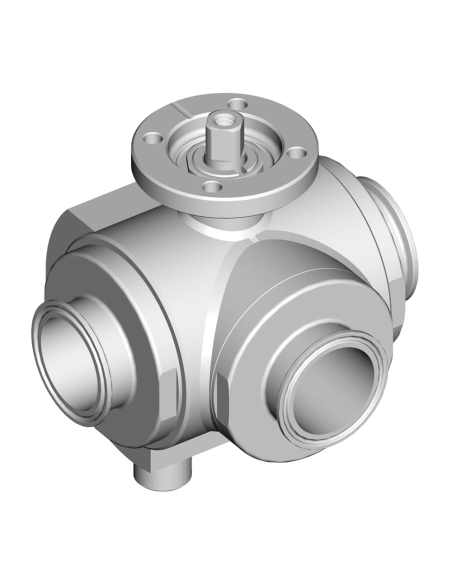

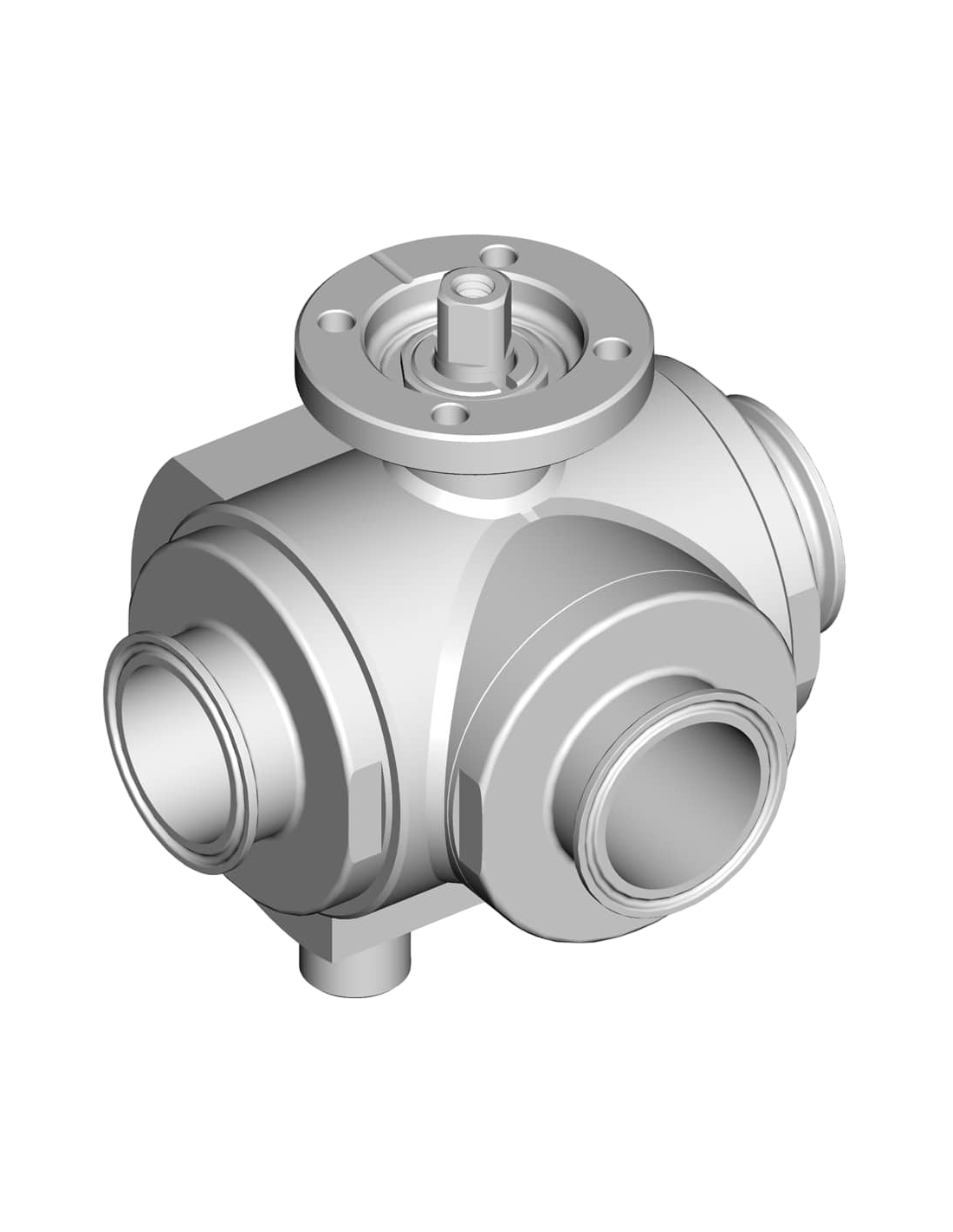

The 3 Way (L) Ball Valve with Heating Jacket - 313030C by 4G Ghidini is a versatile valve designed for efficient fluid control. It features a three-way ball valve with an "L" port configuration and is equipped with a heating jacket for temperature-sensitive applications. The valve is driven by an ISO 5211 – DIN 3337 flange, suitable for actuator mounting. It offers various connection options, including CLAMP norms DIN 32676 for tubes compliant with BS/OD, DIN 11850, and ISO 1127 standards. The valve supports both full and reduced flow and is constructed from high-quality AISI 304L and 316L stainless steel. Available in sizes ranging from 1/2” to 4” (DN10 to DN100), it operates within a temperature range of -20°C to +170°C. The seals are made from modified virgin PTFE, with optional materials like PTFE with glass, carbographite, inox, and UHMW polyethylene for specific temperature requirements. The valve also offers an antistatic device compliant with ATEX standards and meets M.O.C.A. CE 1935/2004 regulations. Its polished outer finish ensures durability and aesthetic appeal.
Standard (Options)
  • DIN
Connection (Options)
  • Clamp
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve 4 seals with “L” port with HEATING JACKET

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection:

  • CLAMP normative DIN 32676 TAB.4 REIHE C For TUBE according to normative BS/OD (ASTM A270)
  • CLAMP normative DIN 32676 TAB.2 REIHE A For TUBE according to normative DIN 11850
  • CLAMP normative DIN 32676 TAB.3 REIHE B For TUBE according to normative ISO 1127

Flow: Full and reduced

Material: Aisi 304L e 316L (1.4404)

Measure:

  • from 1/2” to 4”
  • from DN10 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
